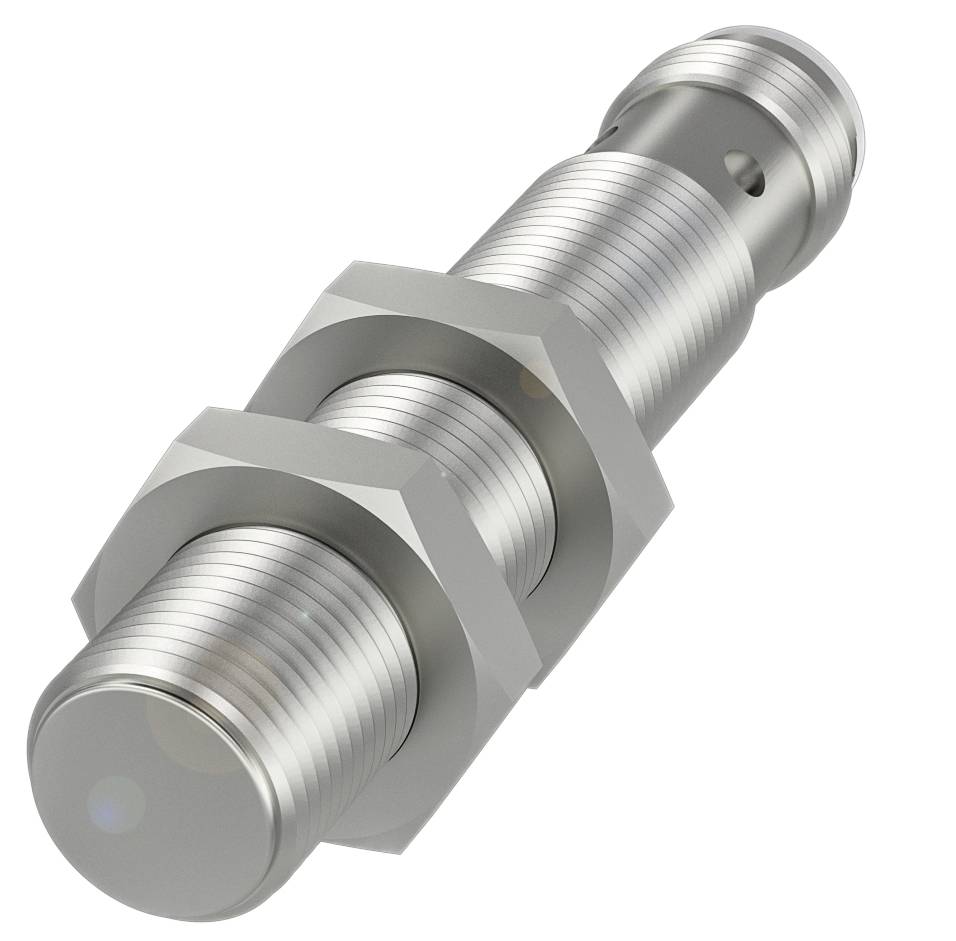

BALLUFF Inductive sensor Inductive BES02NA BES02NA M12 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
3.2 mm
Datasheet (PDF)
Highlights & Details
BES02NA Cylindrical design for high pressure resistant applications
- Dimensions: Ø 12 x 65 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 65 mm
- Active surface, material: Stainless steel
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 60 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 100.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 23 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 6 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 500 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 770 a
- Active surface, material: Stainless steel
- Tightening torque: 20 Nm ±10%
- Size M12x1
- Mounting length 49.50 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Switching distance indicator: ■■
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Compressive strength max. 60 bar
- Compressive strength, note: Pressure-resistant
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02NA
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
65.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 65.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417452 BALLUFF Inductive sensor Inductive BES02NA BES02NA M12 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417452 BALLUFF Inductive sensor Inductive BES02NA BES02NA M12 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Inductive sensor, Ø 12 x 65 mm, connector, NO (NO), nominal switching distance Sn=4 mm, flush, 60 bar, pressure resistant, housing material=stainless steel, active surface, material=stainless steel
