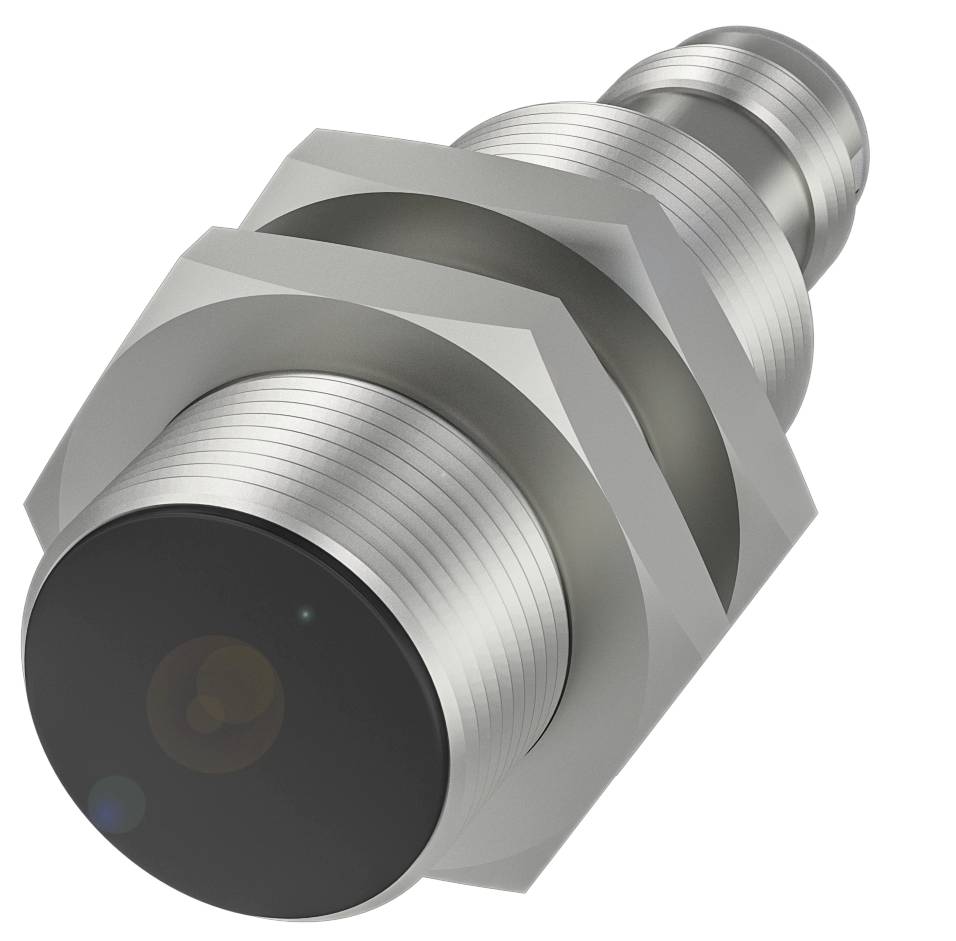

BALLUFF Inductive sensor Inductive BES02NR BES02NR M18 x 1 shielded (Ø x H) 18 mm x 51 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
36.0 V
Switching distance (max.)
5.6 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02NR inductive proximity switches
- Dimensions: Ø 18 x 51 mm
- Design M18x1
- Flush mounting
- Range: 7 mm
- Switching output: Non-polar NO (NO)
Technical specifications
- Main features:Dimensions: Ø 18 x 51 mm
- Active surface, material: PA 12
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...36 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 7 mm
- Switching output: Non-polar NO (NO)
- Switching frequency 600 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 18 x 51 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...36 VDC
- Usage category: DC-13
- Minimum operating current Im: 5 mA
- Load capacity max. at Ue 1 µF
- Residual current l max. 600 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 600 Hz
- Static voltage drop: 5.3 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 5.6 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 7 mm
- Real switching distance Sr:7 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 315 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 35.00 mm
- Flush mounting: Flush mounting
- Switching output: Non-polar NO (NO)
- Switching distance indicator: ■■
- Brand: Global
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02NR
- Min. operating voltage
10.0 V
- Max. operating voltage
36.0 V
- Operating voltage
10.0 - 36.0 V
- Switching distance (max.)
5.6 mm
- Switching frequency
600 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18 x 1
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
51.00 mm
- Height
51 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 51 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416778 BALLUFF Inductive sensor Inductive BES02NR BES02NR M18 x 1 shielded (Ø x H) 18 mm x 51 m Piece
User & Safety Instructions
User & Safety Instructions 3416778 BALLUFF Inductive sensor Inductive BES02NR BES02NR M18 x 1 shielded (Ø x H) 18 mm x 51 m Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 18 x 51 mm, design = M18x1, installation = flush, range = 7 mm, switching output = non-polar NO, switching frequency = 600 Hz, housing material = brass, nickel-free coated, active surface, material = PA 12, connection = plug connector, M12x1 plug, 4-pole, operating voltage Ub = 10...36 VDC, Ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
