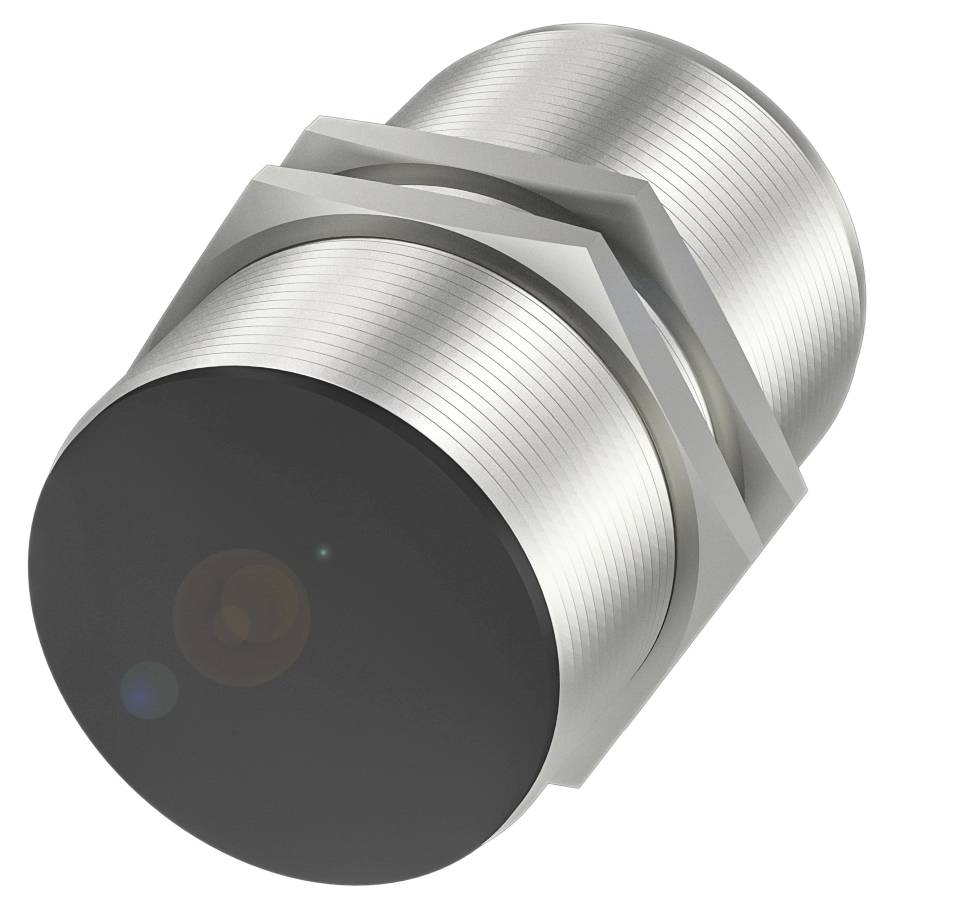

BALLUFF Inductive sensor Inductive BES02UN BES02UN quasi-shielded PNP (Ø x H) 40 mm x 82 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
55.0 V
Outputs
PNP
Switching distance (max.)
20 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02UN Inductive Proximity Switches
- Dimensions: Ø 40 x 82 mm
- Design PG36
- Mounting: Quasi flush-shielded
- Range: 25 mm
- Switching output PNP NO/NC
Technical specifications
- Main features:Dimensions: Ø 40 x 82 mm
- Active surface, material: Plastic
- Connection: Connector, M12x1 connector, 4-pin
- Design PG36
- Operating voltage Ub 10...55 VDC
- Mounting: Quasi flush-shielded
- Housing material: Nickel-plated brass
- Range: 25 mm
- Switching output PNP NO/NC
- Switching frequency 100 Hz
- Protection class IP67
- Ambient temperature -20...70 °C
- Additional features:
- Dimensions: Ø 40 x 82 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...55 VDC
- Usage category: DC-13
- Minimum operating current Im: 1 mA
- Load capacity max. at Ue 0.15 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 10 mA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 20 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 25 mm
- Real switching distance Sr:25 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: Plastic
- Tightening torque 40 Nm
- Size PG36
- Mounting length 70.00 mm
- Mounting: Quasi flush-shielded
- Switching output PNP NO/NC
- Housing material: Nickel-plated brass
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -20...70 °C
- Pollution level 3
- Product type
Inductive sensor
- Type
BES02UN
- Min. operating voltage
10.0 V
- Max. operating voltage
55.0 V
- Operating voltage
10.0 - 55.0 V
- Outputs
PNP
- Switching distance (max.)
20 mm
- Switching frequency
100 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
quasi-shielded
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 PNP
IP67
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
82.00 mm
- Height
82 m
- (Ø)
40 mm
- Dim
(Ø x H) 40 mm x 82 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416050 BALLUFF Inductive sensor Inductive BES02UN BES02UN quasi-shielded PNP (Ø x H) 40 mm x 82 m
User & Safety Instructions
User & Safety Instructions 3416050 BALLUFF Inductive sensor Inductive BES02UN BES02UN quasi-shielded PNP (Ø x H) 40 mm x 82 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 40 x 82 mm, design=M40x1.5, installation=flush, range=25 mm, switching output=PNP NO/NC (NO/NC), Switching frequency=100 Hz, casing material=brass, surface protection=nickel, active surface, material=plastic, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...55 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CEEACWEEE
