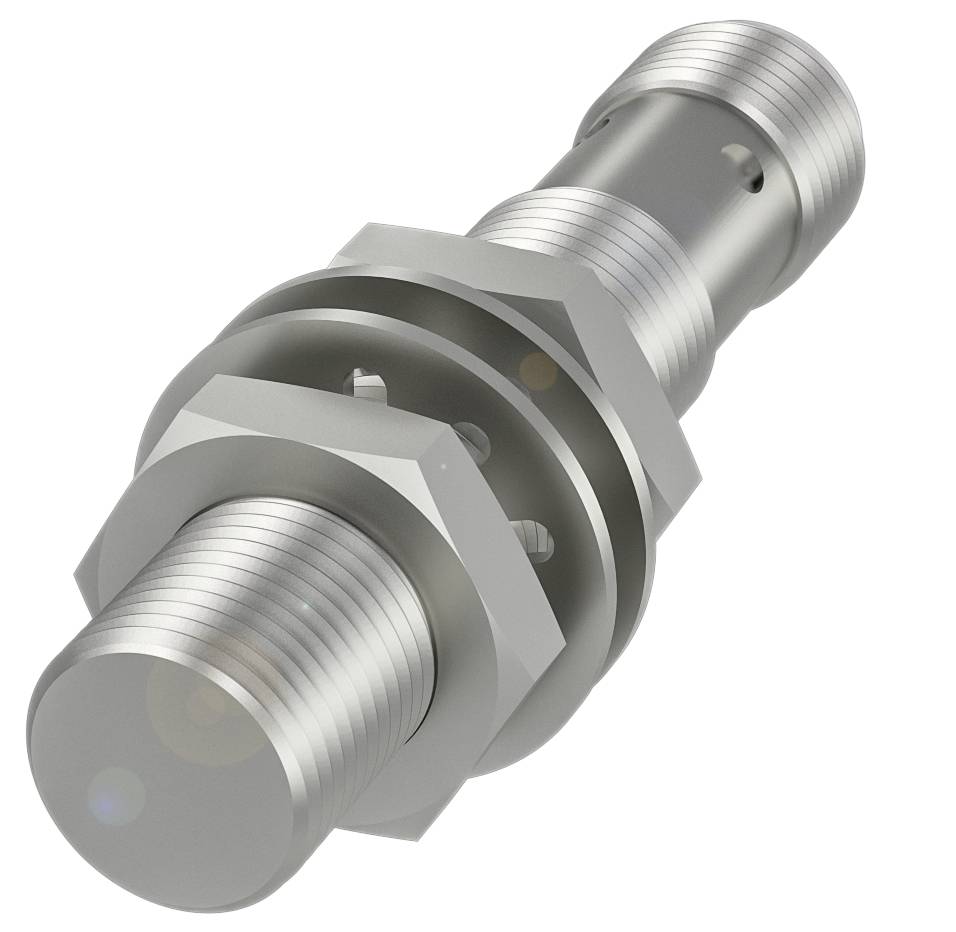

BALLUFF Inductive sensor Inductive BES02WF BES02WF M12 quasi-shielded NPN (Ø x L) 12 mm x 60.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
4.9 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02WF Cylindrical design for high pressure resistant applications
- Dimensions: Ø 12 x 60 mm
- Design M12x1
- Mounting: Quasi flush-shielded
- Range: 6 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 12 x 60 mm
- Active surface, material: Stainless steel
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 80 bar
- Mounting: Quasi flush-shielded
- Housing material: Stainless steel
- Range: 6 mm
- Switching output: NPN no (NO)
- Switching frequency 400 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 60 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 60 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 16 mA
- Idle current IO max., unattenuated: 9 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4.9 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 6 mm
- Real switching distance Sr:6 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 335 a
- Active surface, material: Stainless steel
- Tightening torque: 10 Nm ±10%
- Size M12x1
- Mounting length 41.00 mm
- Mounting: Quasi flush-shielded
- Switching output: NPN no (NO)
- Switching distance indicator: ■■■
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Compressive strength max. 80 bar
- Compressive strength, note: Pressure-resistant
- Product type
Inductive sensor
- Type
BES02WF
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Switching distance (max.)
4.9 mm
- Switching frequency
400 Hz
- Model
Inductive
- Connector
M12
- Installation type
quasi-shielded
- Size
M12
- Material properties
rust-proof
- Enclosure material
Stainless steel
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
60.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 60.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417348 BALLUFF Inductive sensor Inductive BES02WF BES02WF M12 quasi-shielded NPN (Ø x L) 12 mm x 60.00 mm
User & Safety Instructions
User & Safety Instructions 3417348 BALLUFF Inductive sensor Inductive BES02WF BES02WF M12 quasi-shielded NPN (Ø x L) 12 mm x 60.00 mm
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions=Ø 12 x 60 mm, design=M12x1, installation=quasi flush, range=6 mm, switching output=NPN NO contact (NO), Switching frequency=400 Hz, casing material=stainless steel, active surface, material=stainless steel, connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
