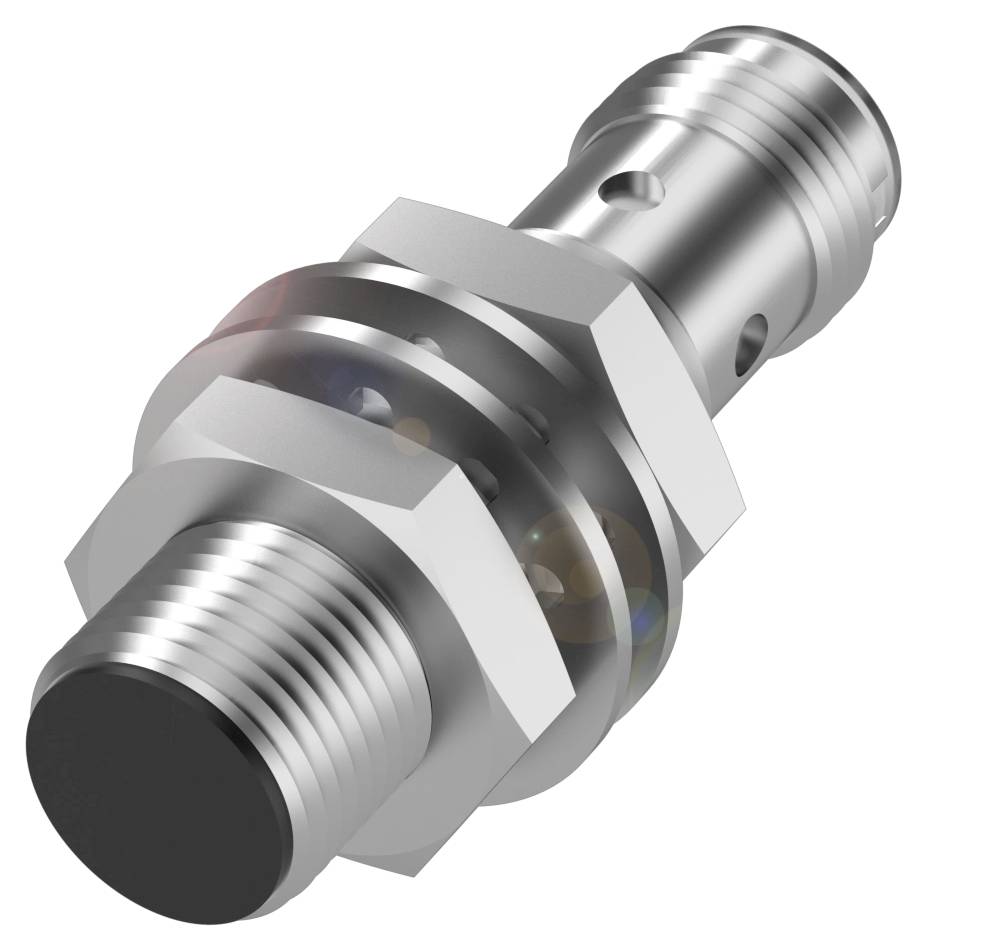

BALLUFF Inductive sensor Inductive BES02WM BES02WM M12 quasi-shielded PNP (Ø x H) 12 mm x 45 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
4.8 mm
Datasheet (PDF)
Highlights & Details
Balluff BES02WM inductive proximity switch
- Dimensions: Ø 12 x 45 mm
- Design M12x1
- Mounting: Quasi flush-shielded
- Range: 6 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 45 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Mounting: Quasi flush-shielded
- Housing material: Brass, nickel-free coated
- Range: 6 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection type IP68, according to BWN Pr 20
- Ambient temperature: -25 to 85 °C
- Additional features:
- Dimensions: Ø 12 x 45 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 35 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1.5 µF
- Idle current IO max., dammed.: 11 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Protection class: II
- Static voltage drop: 1.3 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4.8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 6 mm
- Real switching distance Sr:6 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 625 a
- Active surface, material: PBT
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 29.50 mm
- Mounting: Quasi flush-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■■
- Housing material: Brass, nickel-free coated
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02WM
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
4.8 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
quasi-shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP68
- Length
45.00 mm
- Height
45 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 45 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417099 BALLUFF Inductive sensor Inductive BES02WM BES02WM M12 quasi-shielded PNP (Ø x H) 12 mm x 45 m Piece
User & Safety Instructions
User & Safety Instructions 3417099 BALLUFF Inductive sensor Inductive BES02WM BES02WM M12 quasi-shielded PNP (Ø x H) 12 mm x 45 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 45 mm, design=M12x1, installation=quasi flush, range=6 mm, switching output=PNP NO (NO), Switching frequency=1000 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=plug connector, M12x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...85 °C, Protection class=IP68, approval/conformity=EACCECULUSWEEE
