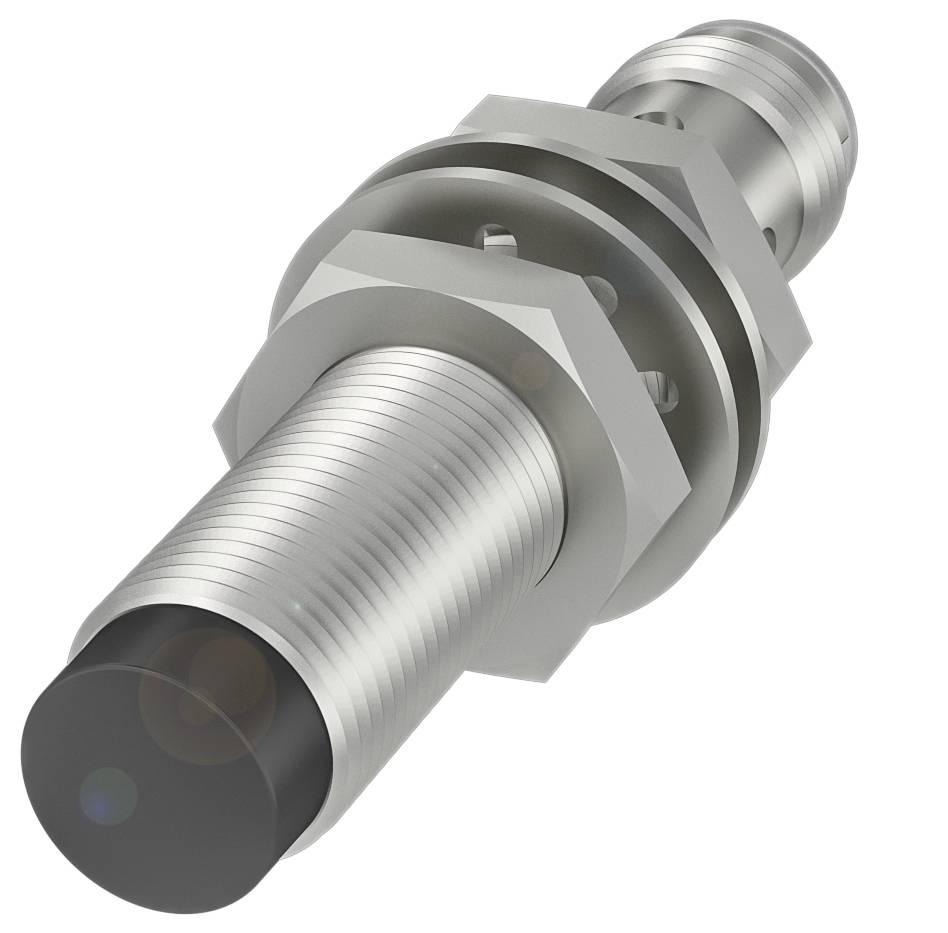

BALLUFF Inductive sensor Inductive BES02WP BES02WP M12 non-shielded PNP (Ø x H) 12 mm x 60 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
8 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02WP Inductive Proximity Switches
- Dimensions: Ø 12 x 60 mm
- Design M12x1
- Fitting: Non-shielded
- Range: 10 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 12 x 60 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, nickel-free coated
- Range: 10 mm
- Switching output: PNP NC
- Switching frequency 600 Hz
- Protection type IP68, according to BWN Pr 20
- Ambient temperature: -25 to 85 °C
- Additional features:
- Dimensions: Ø 12 x 60 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 35 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1.5 µF
- Idle current IO max., dammed.: 11 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 600 Hz
- Protection class: II
- Static voltage drop: 1.3 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 625 a
- Active surface, material: PBT
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 40.00 mm
- Fitting: Non-shielded
- Switching output: PNP NC
- Switching distance indicator: ■■■
- Housing material: Brass, nickel-free coated
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02WP
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
8 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP68
- Length
60.00 mm
- Height
60 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 60 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
600 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416560 BALLUFF Inductive sensor Inductive BES02WP BES02WP M12 non-shielded PNP (Ø x H) 12 mm x 60 m Piece
User & Safety Instructions
User & Safety Instructions 3416560 BALLUFF Inductive sensor Inductive BES02WP BES02WP M12 non-shielded PNP (Ø x H) 12 mm x 60 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 60 mm, design=M12x1, installation=not flush, range=10 mm, switching output=PNP NC), Switching frequency=600 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=plug connector, M12x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...85 °C, Protection class=IP68, approval/conformity=EACCECULUSWEEE
