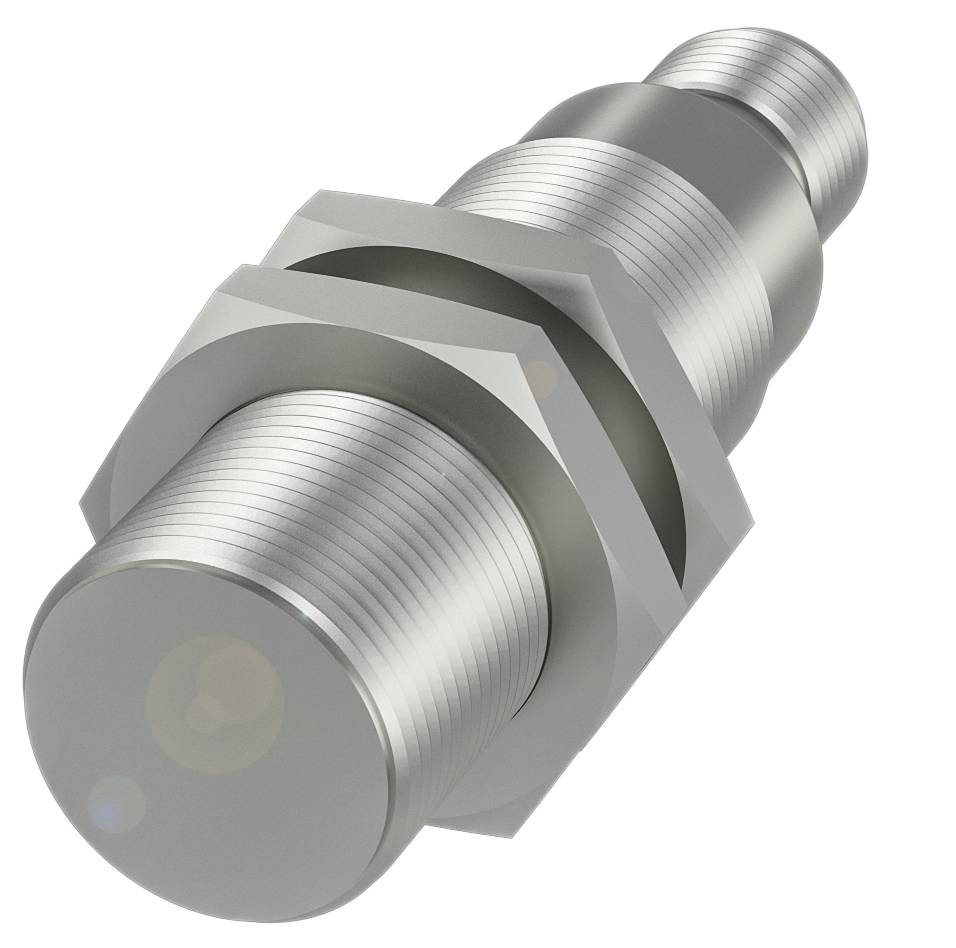

BALLUFF Inductive sensor Inductive BES02Y2 BES02Y2 shielded NPN (Ø x H) 18 mm x 63.5 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
8.1 mm
Datasheet (PDF)
Highlights & Details
Balluff BES02Y2 Cylindrical design for high pressure resistant applications
- Dimensions: Ø 18 x 63.5 mm
- Design M18x1
- Flush mounting
- Range: 10 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 18 x 63.5 mm
- Active surface, material: Stainless steel
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 60 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 10 mm
- Switching output: NPN no (NO)
- Switching frequency 200 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 18 x 63.5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 35 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 16 mA
- Idle current IO max., unattenuated: 9 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 200 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 375 a
- Active surface, material: Stainless steel
- Tightening torque: 50 Nm ±10%
- Size M18x1
- Mounting length 42.00 mm
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Switching distance indicator: ■■
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Compressive strength max. 60 bar
- Compressive strength, note: Pressure-resistant
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02Y2
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Switching distance (max.)
8.1 mm
- Switching frequency
200 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Enclosure material
Stainless steel
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
63.50 mm
- Height
63.5 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 63.5 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417479 BALLUFF Inductive sensor Inductive BES02Y2 BES02Y2 shielded NPN (Ø x H) 18 mm x 63.5 m Piece
User & Safety Instructions
User & Safety Instructions 3417479 BALLUFF Inductive sensor Inductive BES02Y2 BES02Y2 shielded NPN (Ø x H) 18 mm x 63.5 m Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions=Ø 18 x 63.5 mm, design=M18x1, installed=flush, range=10 mm, switched output=NPN NO contact (NO), Switching frequency=200 Hz, casing material=stainless steel, active surface, material=stainless steel, connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
This text is machine translated.
