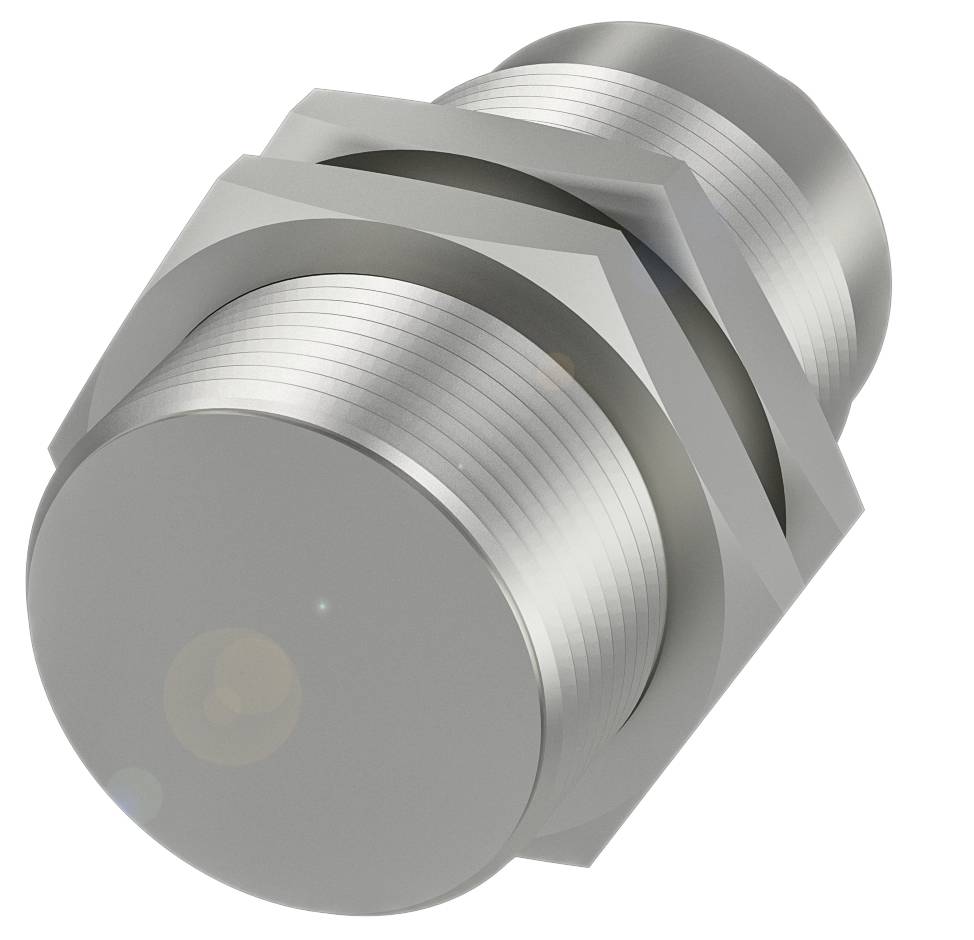

BALLUFF Inductive sensor Inductive BES02YF BES02YF M30 shielded PNP (Ø x L) 30 mm x 63.50 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
16 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02YF Cylindrical design for high pressure resistant applications
- Dimensions: Ø 30 x 63.5 mm
- Type M30x1.5
- Flush mounting
- Range: 20 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 63.5 mm
- Active surface, material: Stainless steel (1.4305)
- Connection: Connector, M12x1 connector, 4-pin
- Type M30x1.5
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 40 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 20 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 30 x 63.5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 35 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 16 mA
- Idle current IO max., unattenuated: 9 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 16 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 20 mm
- Real switching distance Sr:20 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 340 a
- Active surface, material: Stainless steel (1.4305)
- Tightening torque: 80 Nm ±10%
- Size M30x1.5
- Mounting length 42.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Switching distance indicator: ■■
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Compressive strength max. 40 bar
- Compressive strength, note: Pressure-resistant
- Product type
Inductive sensor
- Type
BES02YF
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
16 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M30
- Connector
M12 (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
63.50 mm
- (Ø)
30 mm
- Dim
(Ø x L) 30 mm x 63.50 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417221 BALLUFF Inductive sensor Inductive BES02YF BES02YF M30 shielded PNP (Ø x L) 30 mm x 63.50 mm
User & Safety Instructions
User & Safety Instructions 3417221 BALLUFF Inductive sensor Inductive BES02YF BES02YF M30 shielded PNP (Ø x L) 30 mm x 63.50 mm
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions = Ø 30 x 63.5 mm, design = M301.5, flush-mount = flush-mount, range = 20 mm, switch output = PNP NO (NO), Switching frequency=100 Hz, casing material=stainless steel, active surface, material=stainless steel (1.4305), connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
