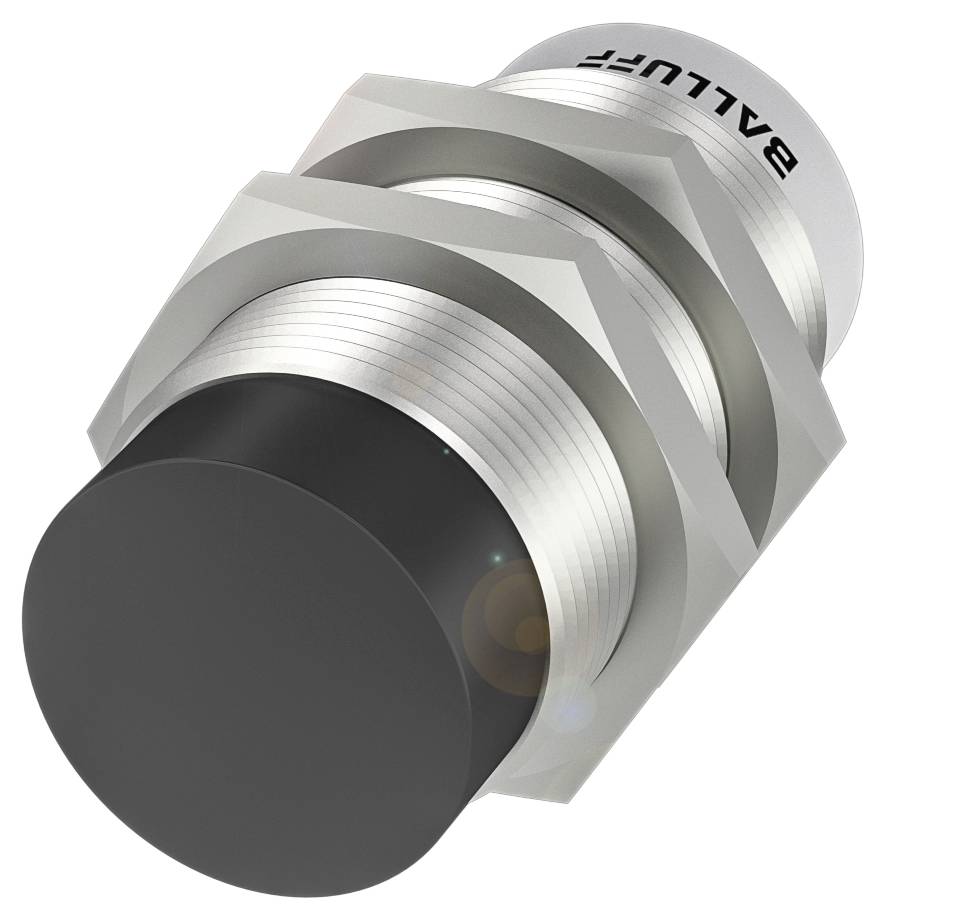

BALLUFF Inductive sensor Inductive BES02YJ BES02YJ M30 non-shielded PNP (Ø x H) 30 mm x 73.5 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
32 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02YJ Inductive Proximity Switches
- Dimensions: Ø 30 x 73.5 mm
- Type M30x1.5
- Fitting: Non-shielded
- Range: 40 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 73.5 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Type M30x1.5
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, chrome-plated
- Range: 40 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class: IP54
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 30 x 73.5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 10 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 20%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 32 mm
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 40 mm
- Real switching distance Sr:40 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 380 a
- Active surface, material: PBT
- Tightening torque 70 Nm
- Size M30x1.5
- Mounting length 42.00 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■■
- Housing material: Brass, chrome-plated
- Product type
Inductive sensor
- Type
BES02YJ
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
32 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
chrome plated
- Installation type
non-shielded
- Size
M30
- Connector
M12 (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP54
- Length
73.50 mm
- Height
73.5 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 73.5 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417439 BALLUFF Inductive sensor Inductive BES02YJ BES02YJ M30 non-shielded PNP (Ø x H) 30 mm x 73.5 m
User & Safety Instructions
User & Safety Instructions 3417439 BALLUFF Inductive sensor Inductive BES02YJ BES02YJ M30 non-shielded PNP (Ø x H) 30 mm x 73.5 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 30 x 73.5 mm, design=M30x1.5, mounting=not flush-mounted, range=40 mm, switching output=PNP NO contact (NO), Switching frequency=100 Hz, casing material=brass, surface protection=chrome, active surface, material=PBT, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP54, approval/conformity=CecULusEACWEEE
