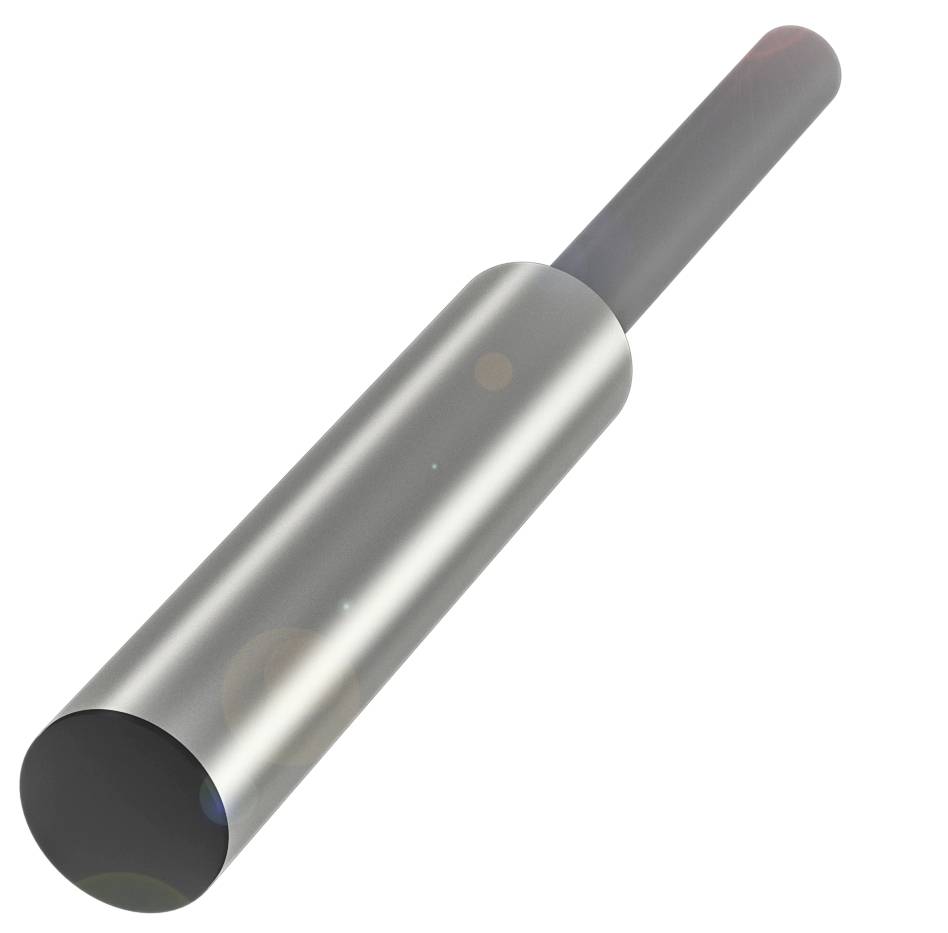

BALLUFF Inductive sensor Inductive BES02ZR BES02ZR shielded NPN (Ø x L) 6.5 mm x 30.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
9.0 V
Outputs
NPN
Switching distance (max.)
0.8 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02ZR Non-threaded cylindrical design for hazardous areas
- Dimensions: Ø 6.5 x 30 mm
- D6.5 design
- Flush mounting
- Range: 1 mm
- Interface: NAMUR
Technical specifications
- Main features:Dimensions: Ø 6.5 x 30 mm
- Active surface, material: PBT/Duroplast
- Connection: Cable, 2.00 m, PVC
- D6.5 design
- Operating voltage Ub 7.7...9 VDC
- Flush mounting
- Ex category: ATEX: 1D (EPL Da)
- ATEX 2D (EPL DB)
- ATEX 2G (EPL GB)
- ATEX 3D (EPL DC)
- ATEX 3G (EPL GC)
- ATEX 1G (EPL GA)
- Housing material: Brass, nickel-free coated
- Range: 1 mm
- Switching frequency 2000 Hz
- Interface: NAMUR
- Protection class IP67
- Ambient temperature -20...70 °C
- Additional features:
- Dimensions: Ø 6.5 x 30 mm
- Operating voltage display: No.
- Function display: No.
- Rated operating voltage Ue DC 8.2 V
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 1 ms
- Operating voltage Ub 7.7...9 VDC
- Switching frequency 2000 Hz
- Reverse polarity protection: No.
- Guaranteed switching distance of Sa: 0.8 mm
- Rated switching distance Sn: 1 mm
- Real switching distance Sr:1 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 4816 a
- Active surface, material: PBT/Duroplast
- Size D6.5
- Mounting length 30.00 mm
- Flush mounting: Flush mounting
- Connection type: Cable, 2.00 m, PVC
- Cable length 2 m
- Housing material: Brass, nickel-free coated
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -20...70 °C
- Number of conductors: 2
- Conductor cross-section: 0.14 mm²
- Interface: NAMUR
- Ex marking: ATEX: Ex II 1G Ex ia IIC T6 Ga Ta:|-20 … 55 °C|Ex II 2G Ex ia IIC T6 GB Ta: -20 …|70 °C|Ex 1D Ex ia IIIC T90°C Ta: -20 … 70|°C|NEC: CSA/FM Class I, Division 1,|Groups ABCD|Class II, Division 1, Groups EFG|Class III.
- Rated load resistance RV 1000 Ohm
- Internal inductance Li max. 0.07 nH
- Internal capacity CI max.: 80 nF
- Power consumption max., dammed 1 mA
- Power consumption min., unattenuated: 2.1 mA
- Series resistor RV approved 550...1100 ohms
- Product type
Inductive sensor
- Type
BES02ZR
- Min. operating voltage
7.7 V
- Max. operating voltage
9.0 V
- Operating voltage
7.7 - 9.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching distance (max.)
0.8 mm
- Switching frequency
2000 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Enclosure material
Brass
IP67
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
30.00 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 30.00 mm
- Nominal voltage
8.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417002 BALLUFF Inductive sensor Inductive BES02ZR BES02ZR shielded NPN (Ø x L) 6.5 mm x 30.00 mm
User & Safety Instructions
User & Safety Instructions 3417002 BALLUFF Inductive sensor Inductive BES02ZR BES02ZR shielded NPN (Ø x L) 6.5 mm x 30.00 mm
Description
For all Ex-zones, we supply inductive sensors. These wear-free switches can be used in areas of zones 2/22, where an explosive atmosphere only rarely occurs (category 3G/3D), up to areas of zones 0/20, where the highest explosion hazard exists.With a wide range of sensor variants, we offer a wide range of applications so that you can solve a wide variety of requirements. The comprehensive portfolio includes, for example, high-pressure sensors up to 500 bar or sensors with extended temperature range - in different designs. You will of course also get the suitable accessories, such as NAMUR isolating amplifiers or connecting cables. Dimensions = Ø 6.5 x 30 mm, design = D6.5, installation = flush, range = 1 mm, interface = NAMUR, switching frequency = 2000 Hz, housing material = brass, nickel-free coated, active surface, material = PBT/duroplastic, Connection = cable, 2.00 m, PVC, operating voltage Ub = 7.7...9 VDC, ambient temperature = -20...70 °C, Ex category = ATEX: 1D (EPL Da) GB, ATEX: 2D (EPL DB), ATEX: 3D (EPL Dc), ATEX: 3G (EPL GC), ATEX: 1G (EPL Ga), protection type = IP67, approval/conformity = CE, ATEX, FM, ATEX, cCSAus, WEEE
This text is machine translated.
This text is machine translated.
