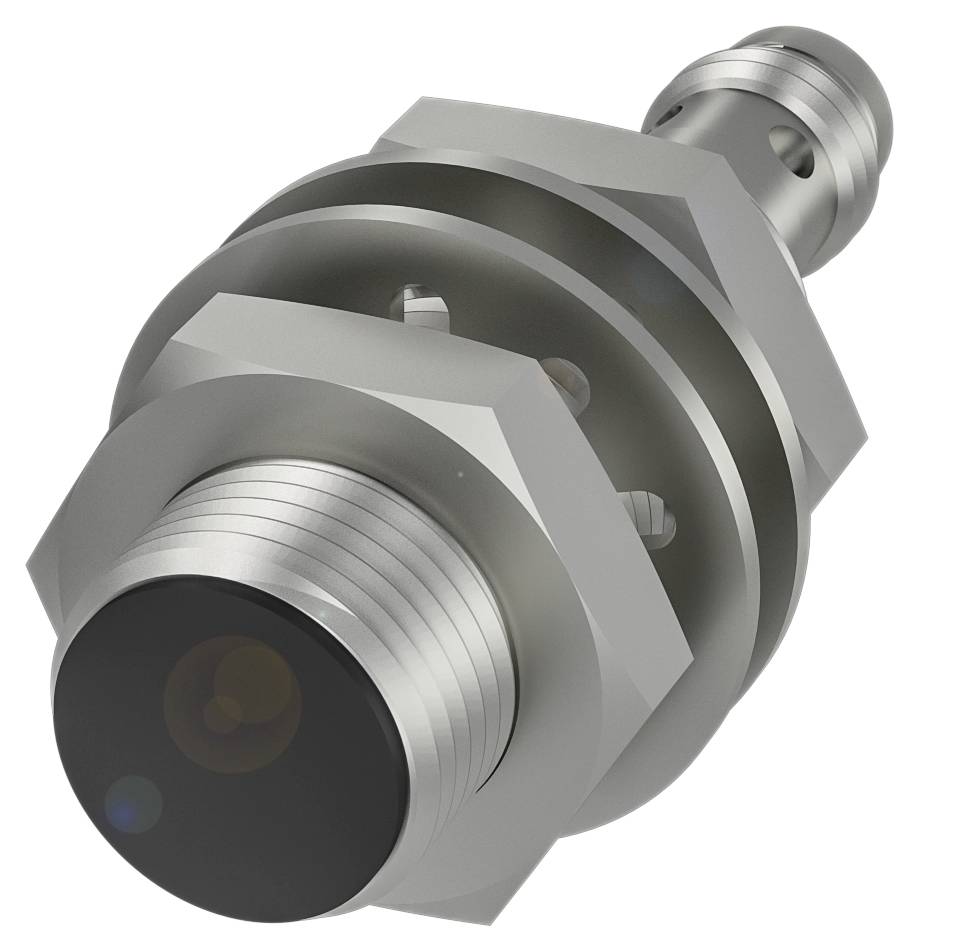

BALLUFF Inductive sensor Inductive BES030W BES030W shielded PNP (Ø x H) 12 mm x 44 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
1.6 mm
Datasheet (PDF)
Highlights & Details
Balluff BES030W Inductive proximity switch
- Dimensions: Ø 12 x 44 mm
- Design M12x1
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 44 mm
- Active surface, material: PA 12
- Connection: Plug connector, M8x1 plug, 3-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 44 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 2.0 kOhm + D + LED
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 130 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 3.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 1620 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 15 Nm
- Size M12x1
- Mounting length 30.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES030W
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
1.6 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
44.00 mm
- Height
44 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 44 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416942 BALLUFF Inductive sensor Inductive BES030W BES030W shielded PNP (Ø x H) 12 mm x 44 m Piece
User & Safety Instructions
User & Safety Instructions 3416942 BALLUFF Inductive sensor Inductive BES030W BES030W shielded PNP (Ø x H) 12 mm x 44 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 44 mm, design=M12x1, installation=flush, range=2 mm, switching output=PNP NO (NO), Switching frequency=1000 Hz, casing material=brass, surface protection=nickel, active surface, material=PA 12, connection = plug connector, M8x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
