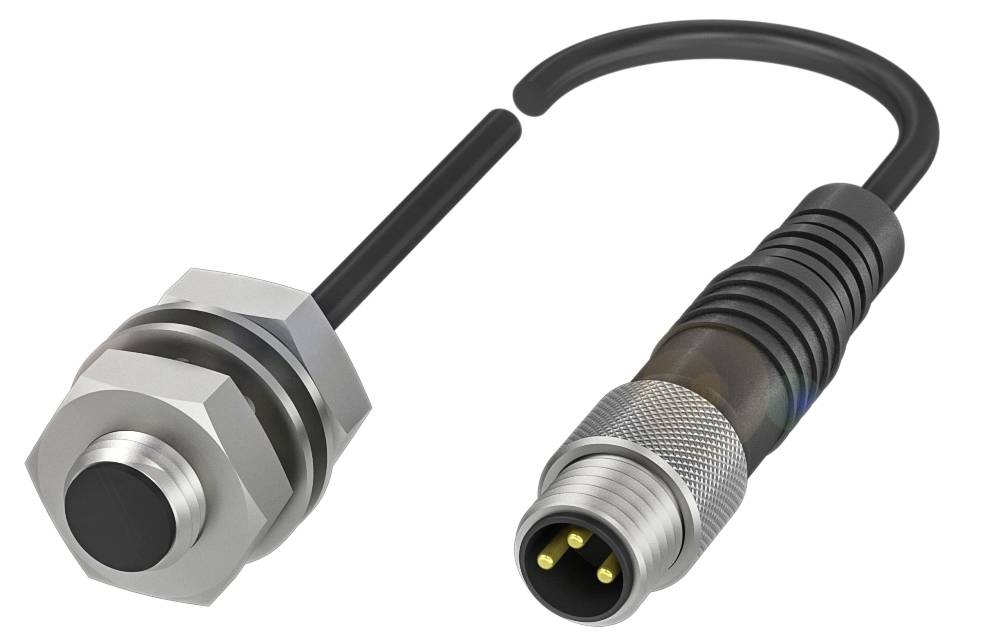

BALLUFF Inductive sensor Inductive BES034W BES034W shielded PNP (Ø x L) 8 mm x 20.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
1.2 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
BES034W Cylindrical Miniature Design
- Dimensions: Ø 8 x 20 mm
- M8x1 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 8 x 20 mm
- Active surface, material: PBT
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 4000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 20 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 4000 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: PBT
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 19.60 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable with connector, 0.20 m,|PUR
- Cable diameter D 3.10 mm
- Cable length 0.2 m
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Deviation from basic type: Housing length
- Product type
Inductive sensor
- Type
BES034W
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
1.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Connector
M8
- Cable length
0.20 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
20.00 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 20.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
4000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416551 BALLUFF Inductive sensor Inductive BES034W BES034W shielded PNP (Ø x L) 8 mm x 20.00 mm
User & Safety Instructions
User & Safety Instructions 3416551 BALLUFF Inductive sensor Inductive BES034W BES034W shielded PNP (Ø x L) 8 mm x 20.00 mm
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 8 x 20 mm, built = M8x1, built = flush, range = 1.5 mm, switched output = PNP NO, switching frequency = 4000 Hz, housing material = stainless steel, active surface, material = PBT, connection = cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR, Operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
