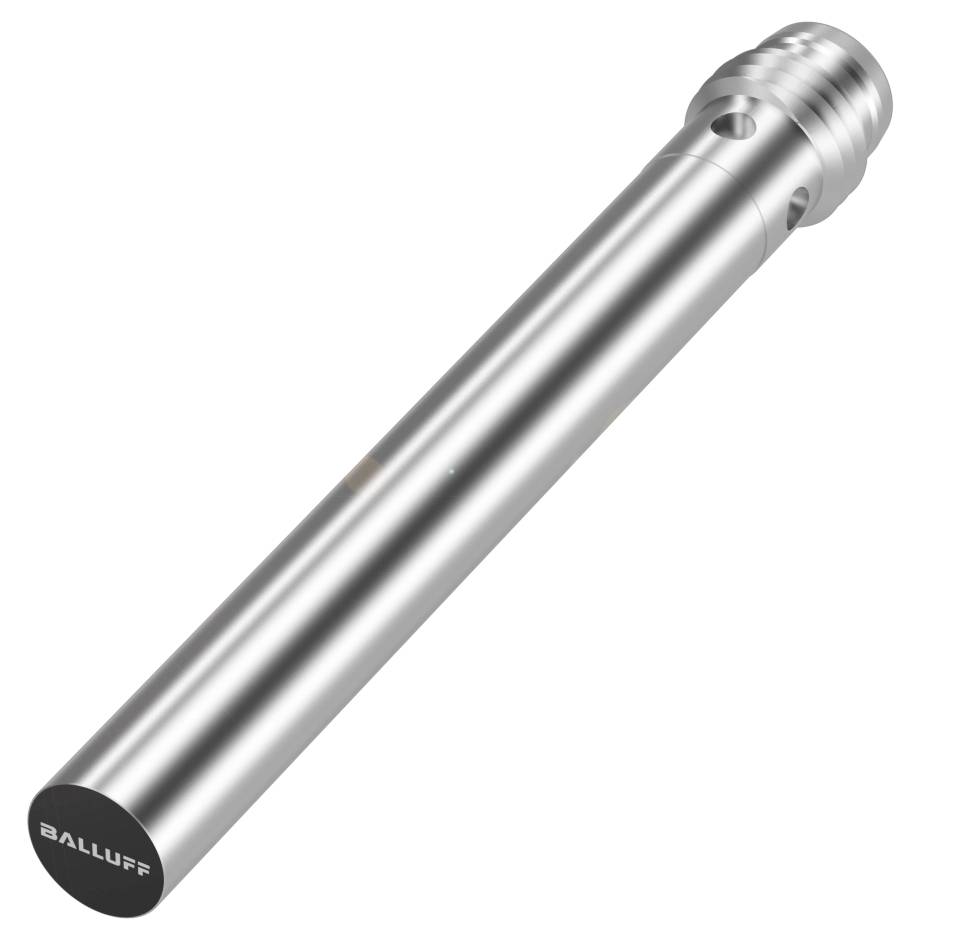

BALLUFF Inductive sensor Inductive BES038Y BES038Y quasi-shielded PNP (Ø x L) 6.5 mm x 60.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
2.4 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES038Y inductive proximity switch
- Dimensions: Ø 6.5 x 60 mm
- D6.5 design
- Mounting: Quasi flush-shielded
- Range: 3 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 6.5 x 60 mm
- Active surface, material: PBT
- Connection: Plug connector, M8x1 plug, 3-pin
- D6.5 design
- Operating voltage Ub 10...30 VDC
- Mounting: Quasi flush-shielded
- Housing material: Stainless steel
- Range: 3 mm
- Switching output: PNP NO
- Switching frequency 1200 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 6.5 x 60 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 100.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 40 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 11 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 1200 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 3 mm
- Real switching distance Sr:3 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 584 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Size D6.5
- Mounting length 48 mm
- Mounting: Quasi flush-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■■
- Product type
Inductive sensor
- Type
BES038Y
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
2.4 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
quasi-shielded
- Connector
M8 (3-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
60.00 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 60.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416562 BALLUFF Inductive sensor Inductive BES038Y BES038Y quasi-shielded PNP (Ø x L) 6.5 mm x 60.00 mm
User & Safety Instructions
User & Safety Instructions 3416562 BALLUFF Inductive sensor Inductive BES038Y BES038Y quasi-shielded PNP (Ø x L) 6.5 mm x 60.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 6.5 x 60 mm, design=D6.5, mount=flush, range=3 mm, switch output=PNP NO (NO), Switching frequency=1200 Hz, casing material=stainless steel, active surface, material=PBT, connection=connector, M8x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP68, approval/conformity=CecULusEACWEEE
