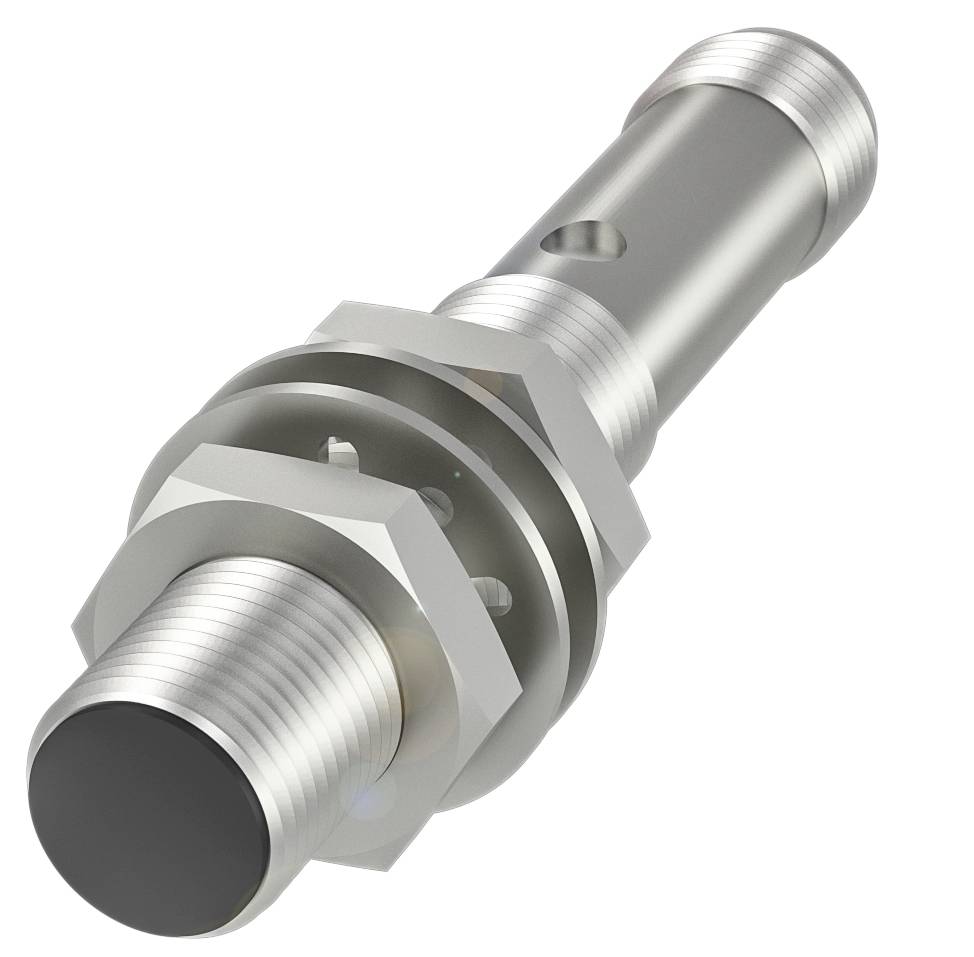

BALLUFF Inductive sensor Inductive BES03AR BES03AR shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
2.9 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
BES03AR inductive proximity switch
- Dimensions: Ø 12 x 70 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 70 mm
- Active surface, material: LCP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 600 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 70 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 2.2 kOhm + D + LED
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 20 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 600 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: No.
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Guaranteed switching distance of Sa: 2.9 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±20 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: LCP
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 40.50 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES03AR
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
2.9 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
70.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 70.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
600 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416548 BALLUFF Inductive sensor Inductive BES03AR BES03AR shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416548 BALLUFF Inductive sensor Inductive BES03AR BES03AR shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 12 x 70 mm, design = M12x1, installation = flush, range = 4 mm, switching output = PNP NO, switching frequency = 600 Hz, housing material = brass, nickel-plated, active surface, material = LCP, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
