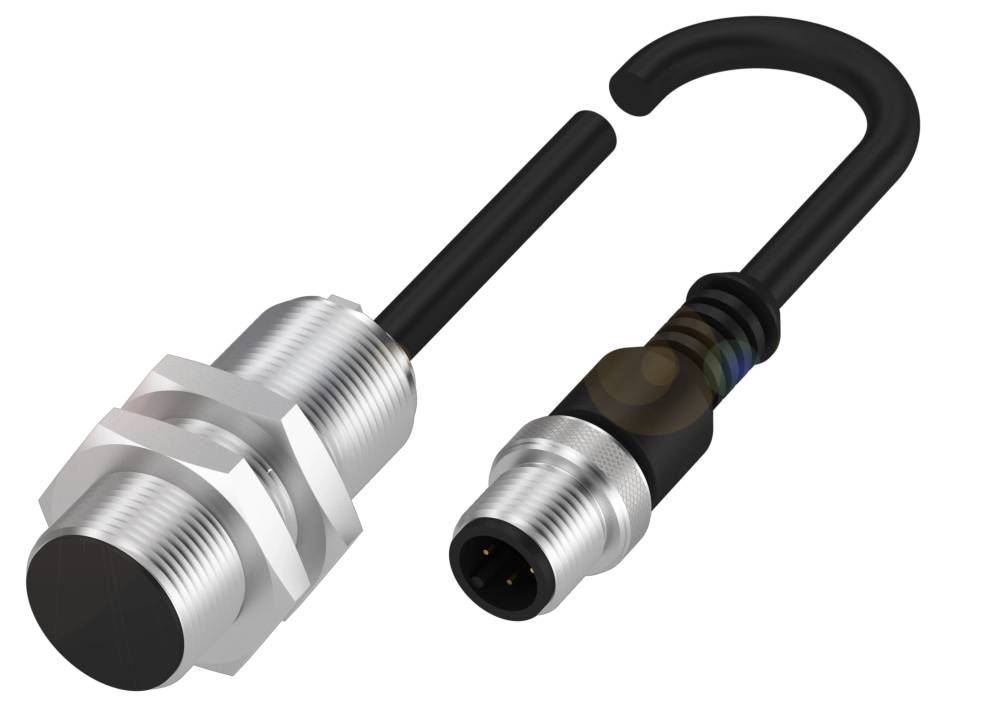

BALLUFF Inductive sensor Inductive BES03FJ BES03FJ M18 shielded (Ø x H) 18 mm x 46 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
36.0 V
Switching distance (max.)
5.6 mm
Model
Inductive
Connector
M18
Datasheet (PDF)
Highlights & Details
Balluff BES03FJ inductive proximity switch
- Dimensions: Ø 18 x 46 mm
- Design M18x1
- Flush mounting
- Range: 7 mm
- Switch output: Polarity sensitive NO
Technical specifications
- Main features:Dimensions: Ø 18 x 46 mm
- Active surface, material: LCP/PTFE
- Connection: Cable with connector, M12x1 connector, 4-pin, 0.30 m, PUR
- Design M18x1
- Operating voltage Ub 10...36 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Range: 7 mm
- Switch output: Polarity sensitive NO
- Switching frequency 600 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 18 x 46 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...36 VDC
- Usage category: DC-13
- Minimum operating current Im: 5 mA
- Load capacity max. at Ue 1 µF
- Residual current l max. 600 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 600 Hz
- Static voltage drop: 4.2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 5.6 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 7 mm
- Real switching distance Sr:7 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: LCP/PTFE
- Tightening torque 15 Nm
- Size M18x1
- Mounting length 40.00 mm
- Flush mounting: Flush mounting
- Switch output: Polarity sensitive NO
- Connection type: Cable with connector, 0.30 m,|PUR
- Cable diameter D 4.70 mm
- Cable length 0.3 m
- Switching distance indicator: ■■
- Housing material: Brass, coated, PTFE
- Jacket material: PUR, radiation cross-linked
- Product type
Inductive sensor
- Type
BES03FJ
- Min. operating voltage
10.0 V
- Max. operating voltage
36.0 V
- Operating voltage
10.0 - 36.0 V
- Cable length
0.30 m
- Switching distance (max.)
5.6 mm
- Switching frequency
600 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
46.00 mm
- Height
46 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 46 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417129 BALLUFF Inductive sensor Inductive BES03FJ BES03FJ M18 shielded (Ø x H) 18 mm x 46 m
User & Safety Instructions
User & Safety Instructions 3417129 BALLUFF Inductive sensor Inductive BES03FJ BES03FJ M18 shielded (Ø x H) 18 mm x 46 m
Description
Dimensions = Ø 18 x 46 mm, design = M18x1, installation = flush, range=7 mm, switching output = pole NO, Switching frequency=600 Hz, casing material=brass, surface protection=coated, PTFE, active surface, Material=LCP/PTFE, connector=cable with connector, M12x1 connector, 4-pin, 0.30 m, PUR, operating voltage Ub=10...36 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=EACcULusCEWEEE
