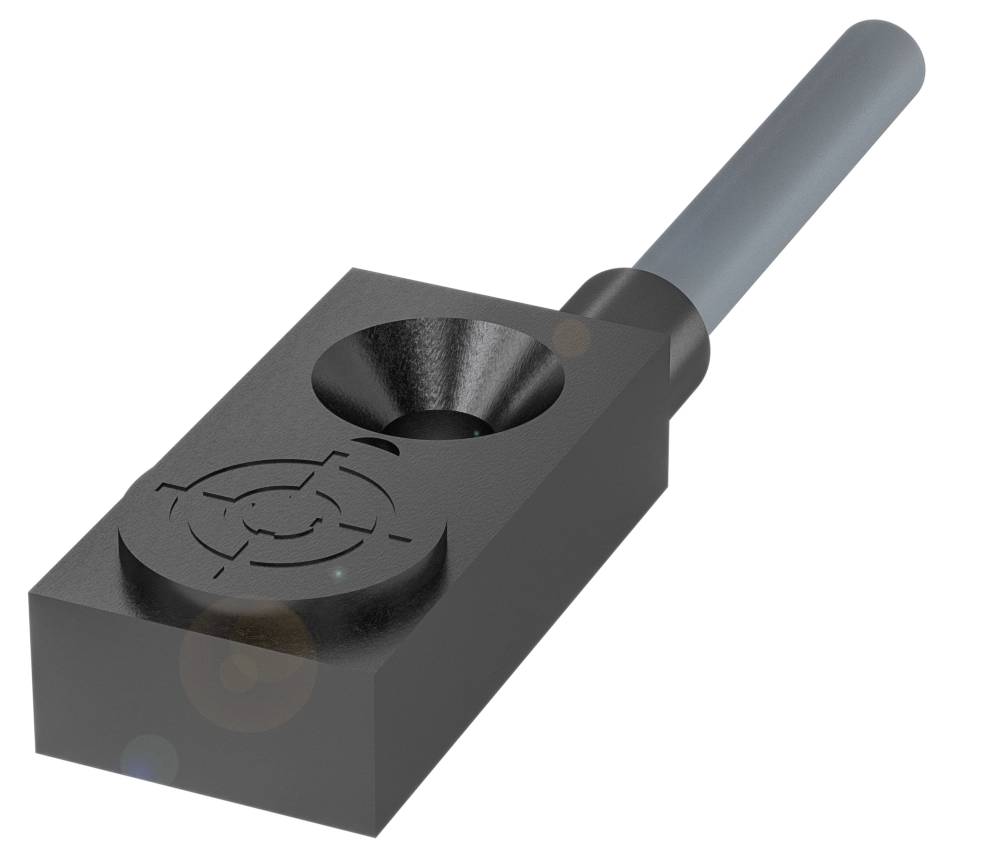

BALLUFF Inductive sensor Inductive BES03J1 BES03J1 shielded PNP (Ø x H) 3 m x 8.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES03J1 cubic capacity
- Dimensions 16 x 8 x 4.7 mm
- 16x8x4.7 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimension 16 x 8 x 4.7 mm
- Active surface, material: PA 6, GF30
- Connection: Cable, 2.00 m, PVC
- 16x8x4.7 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- PA 6, GF30 housing material
- Range: 1.5 mm
- Switching output: PNP NC
- Switching frequency 2500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 16 x 8 x 4.7 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open emitter
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-12
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 3 mA
- Idle current IO max., unattenuated: 10 mA
- Residual current l max. 50 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 1.0%
- MTTF (40 °C) 830 a
- Active surface, material: PA 6, GF30
- Size 16x8x4.7
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 2.50 mm
- Cable length 2 m
- PA 6, GF30 housing material
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.09 mm²
- Product type
Inductive sensor
- Type
BES03J1
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching distance (max.)
1.2 mm
- Switching frequency
2500 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Enclosure material
PA
- Contact type
1 breaker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
4.70 mm
- Width
16.00 mm
- Height
8.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 8.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417358 BALLUFF Inductive sensor Inductive BES03J1 BES03J1 shielded PNP (Ø x H) 3 m x 8.00 mm
User & Safety Instructions
User & Safety Instructions 3417358 BALLUFF Inductive sensor Inductive BES03J1 BES03J1 shielded PNP (Ø x H) 3 m x 8.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=16 x 8 x 4.7 mm, design=16x8x4.7, installation=flush, range=1.5 mm, switching output=PNP NC), Switching frequency=2500 Hz, casing material=PA 6, GF30, active surface, material=PA 6, GF30, connection=cable, 2.00 m, PVC, operating voltage Ub=10...30 VDC, Ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
