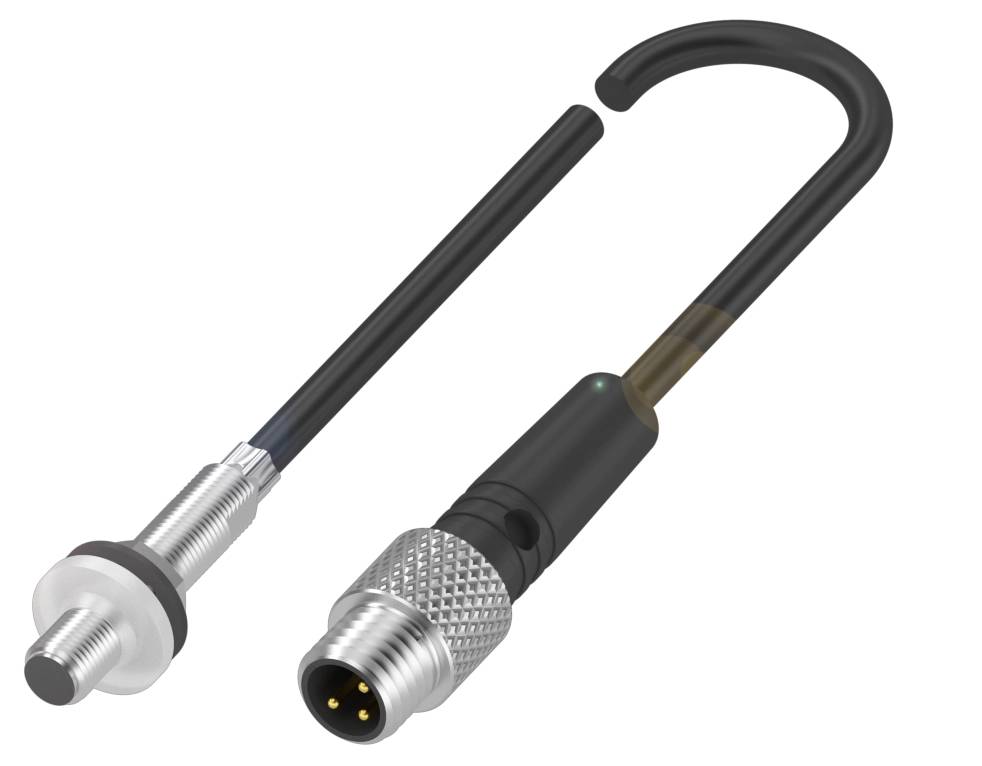

BALLUFF Inductive sensor Inductive BES03LC BES03LC M5 shielded PNP (Ø x L) 5 mm x 27.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
0.65 mm
Datasheet (PDF)
Highlights & Details
Balluff BES03LC Cylindrical design for high-pressure resistant applications
- Dimensions: Ø 5 x 27 mm
- Size: M5x0.5
- Flush mounting
- Range: 0.8 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 5 x 27 mm
- Active surface, material: Ceramic
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Size: M5x0.5
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 100 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 0.8 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 5 x 27 mm
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 1 mA
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 3 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 0.65 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 0.8 mm
- Real switching distance Sr:0.8 mm
- Real switching distance Sr, tolerance: -10 %/40 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: Ceramic
- Tightening torque: 1 Nm ±10%
- Size M5x0.5
- Mounting length 24.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable with connector, 0.30 m,|PUR
- Cable diameter D 3.00 mm
- Cable length 0.3 m
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Sealing ring, size 10.4 × 3.5 mm
- Compressive strength max. 100 bar
- Compressive strength, note: Oil-pressure resistant
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES03LC
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
0.30 m
- Switching distance (max.)
0.65 mm
- Switching frequency
3000 Hz
- Model
Inductive
- Connector
M5
- Installation type
shielded
- Size
M5
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
27.00 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 27.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416944 BALLUFF Inductive sensor Inductive BES03LC BES03LC M5 shielded PNP (Ø x L) 5 mm x 27.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416944 BALLUFF Inductive sensor Inductive BES03LC BES03LC M5 shielded PNP (Ø x L) 5 mm x 27.00 mm Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions=Ø 5 x 27 mm, design=M5x0.5, installation=flush, range=0.8 mm, switching output=PNP NO contact (NO), Switching frequency=3000 Hz, casing material=stainless steel, active surface, material=ceramic, connection=cable with connector, M8x1 plug, 3-pin, 0.30 m, PUR, operating voltage Ub=10...30 VDC, Ambient temperature=-25...70 °C, pressure resistance max.=100 bar, protection class=IP67, approval/conformity=CecULusEACWEEE
