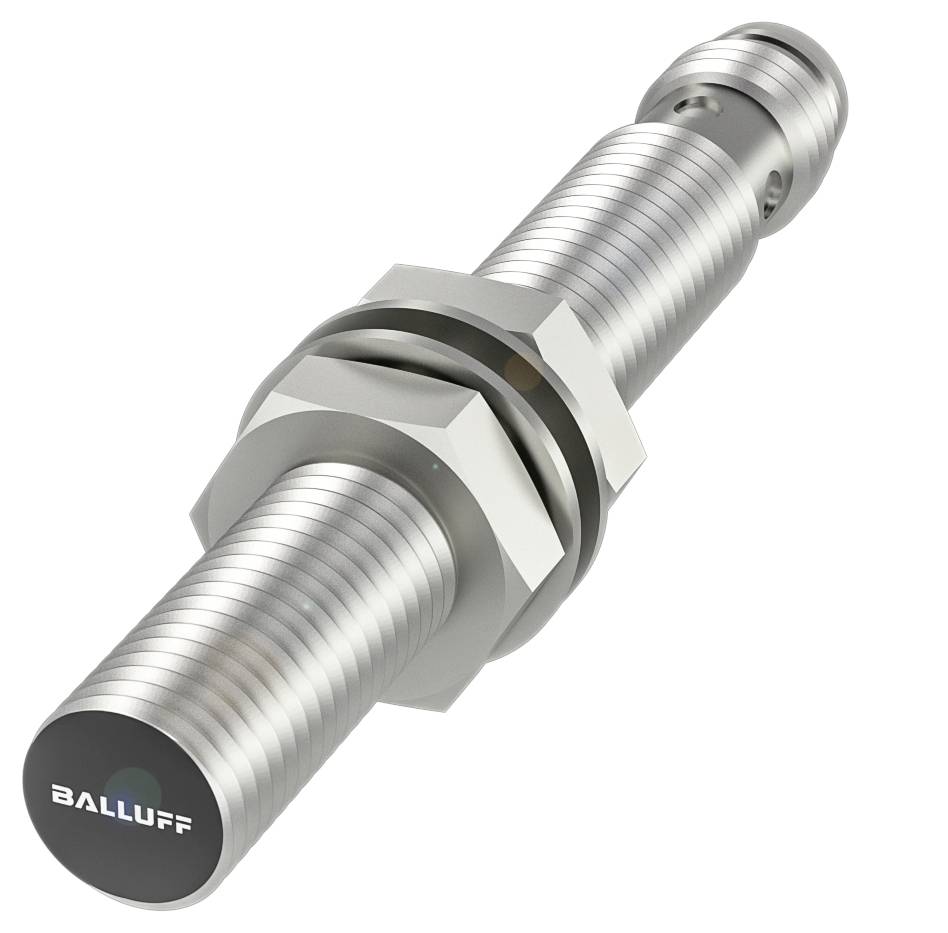

BALLUFF Inductive sensor Inductive BES03P6 BES03P6 M8 shielded PNP (Ø x H) 8 mm x 59 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES03P6 Inductive proximity switch
- Dimensions: Ø 8 x 59 mm
- M8x1 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 8 x 59 mm
- Active surface, material: PA 12
- Connection: Plug connector, M8x1 plug, 3-pin
- M8x1 design
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 1.5 mm
- Switching output: PNP NC
- Switching frequency 1000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 59 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 6 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 880 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Brand: Global
- Product type
Inductive sensor
- Type
BES03P6
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
1.2 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Size
M8
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 breaker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
59.00 mm
- Height
59 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 59 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417079 BALLUFF Inductive sensor Inductive BES03P6 BES03P6 M8 shielded PNP (Ø x H) 8 mm x 59 m
User & Safety Instructions
User & Safety Instructions 3417079 BALLUFF Inductive sensor Inductive BES03P6 BES03P6 M8 shielded PNP (Ø x H) 8 mm x 59 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 59 mm, design=M8x1, installation=flush, range=1.5 mm, switching output=PNP NC), Switching frequency=1000 Hz, casing material=brass, surface protection=nickel, active surface, material=PA 12, connection = plug connector, M8x1 plug, 3-pin, operating voltage Ub=12...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
