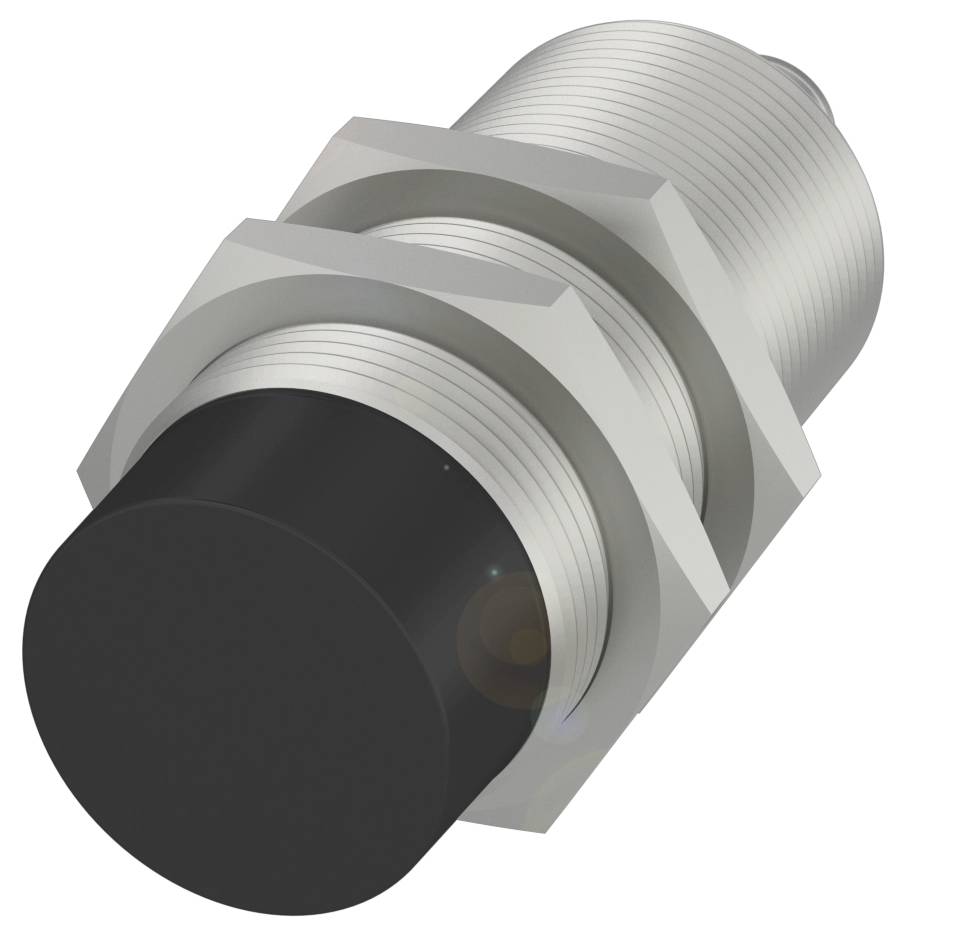

BALLUFF Inductive sensor Inductive BES03RE BES03RE M30 non-shielded PNP (Ø x H) 30 mm x 83 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
24 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES03RE cylindrical design
- Dimensions: Ø 30 x 83 mm
- Type M30x1.5
- Fitting: Non-shielded
- Range: 30 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 83 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Type M30x1.5
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, nickel-free coated
- Range: 30 mm
- Switching output: PNP NO
- Switching frequency 300 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 300 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 24 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 30 mm
- Real switching distance Sr:30 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Brand: Global
- Product type
Inductive sensor
- Type
BES03RE
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
24 mm
- Switching frequency
300 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
non-shielded
- Size
M30
- Enclosure material
Brass
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
83.00 mm
- Height
83 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 83 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417377 BALLUFF Inductive sensor Inductive BES03RE BES03RE M30 non-shielded PNP (Ø x H) 30 mm x 83 m
User & Safety Instructions
User & Safety Instructions 3417377 BALLUFF Inductive sensor Inductive BES03RE BES03RE M30 non-shielded PNP (Ø x H) 30 mm x 83 m
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 30 x 83 mm, design = M30x1.5, installation = not flush, range = 30 mm, switch output = PNP NO, switching frequency = 300 Hz, housing material = brass, nickel-free coating, active surface, material = PBT, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = cULus, CE, UKCA, WEEE
