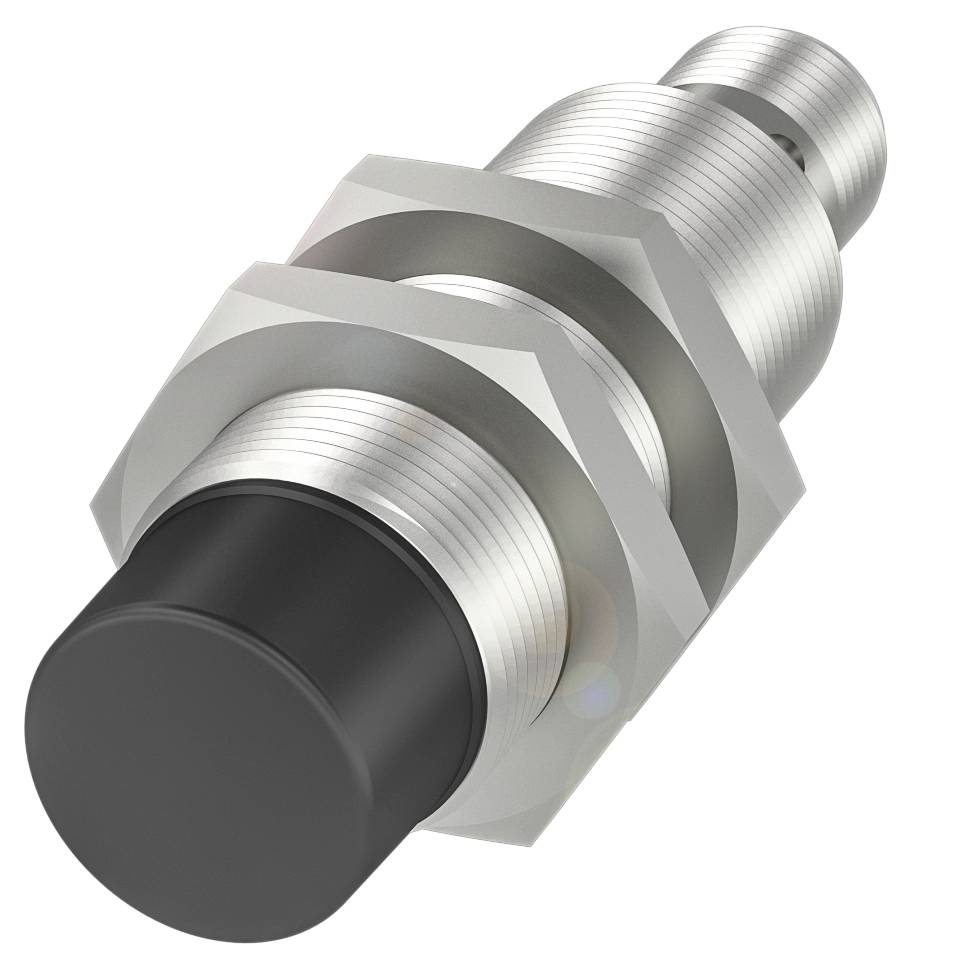

BALLUFF Inductive sensor Inductive BES03RM BES03RM non-shielded PNP (Ø x H) 18 mm x 66 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
12.8 mm
Datasheet (PDF)
Highlights & Details
Balluff BES03RM inductive proximity switch
- Dimensions: Ø 18 x 66 mm
- Design M18x1
- Fitting: Non-shielded
- Range: 16 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 66 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, nickel-free coated
- Range: 16 mm
- Switching output: PNP NO
- Switching frequency 430 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 66 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 430 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 12.8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 16.0 mm
- Real switching distance Sr:16 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 587 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 40.5 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■
- Brand: Global
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES03RM
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
12.8 mm
- Switching frequency
430 Hz
- Model
Inductive
- Connector
M18
- Installation type
non-shielded
- Enclosure material
Brass
- Contact type
1 PNP
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
66.0 mm
- Height
66 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 66 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417265 BALLUFF Inductive sensor Inductive BES03RM BES03RM non-shielded PNP (Ø x H) 18 mm x 66 m Piece
User & Safety Instructions
User & Safety Instructions 3417265 BALLUFF Inductive sensor Inductive BES03RM BES03RM non-shielded PNP (Ø x H) 18 mm x 66 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 18 x 65 mm, design=M18x1, installation=not flush, range=16 mm, switching output=PNP NO contact (NO), Switching frequency=800 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
