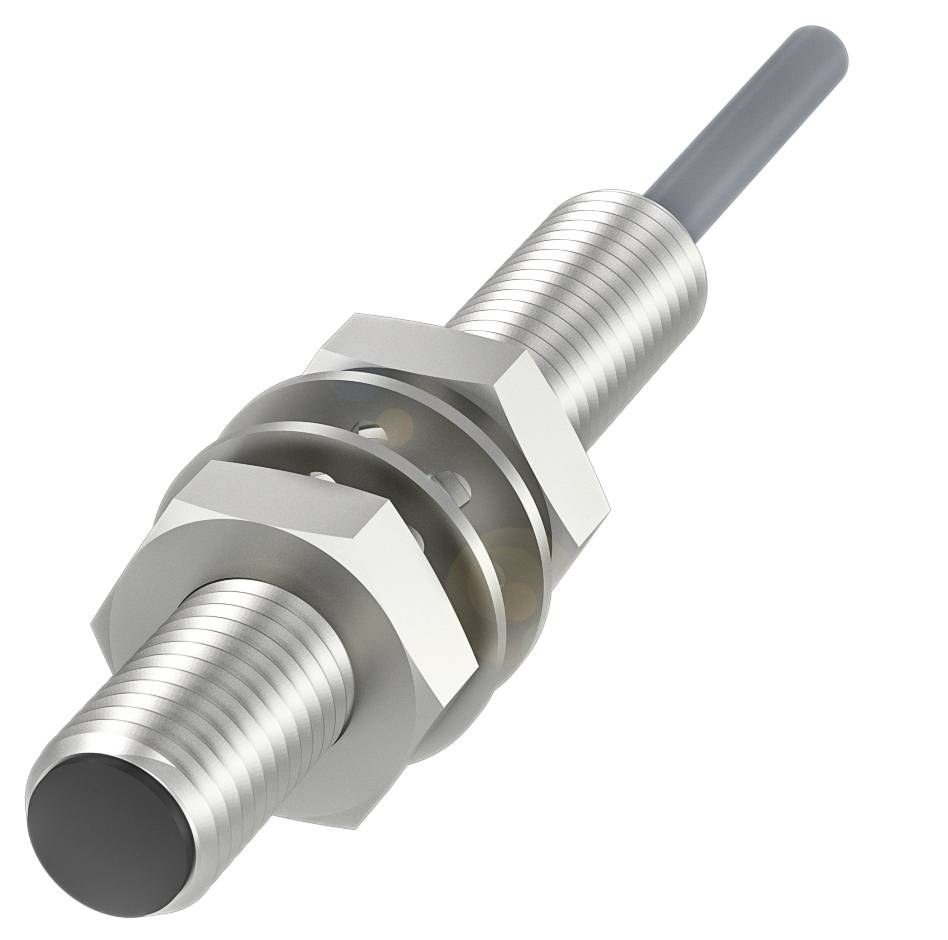

BALLUFF Inductive sensor Inductive BES03TF BES03TF M8 shielded NPN (Ø x L) 8 mm x 50.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
1.6 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES03TF Inductive Proximity Switches
- Dimensions: Ø 8 x 50 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- NPN NC switched output
Technical specifications
- Main features:Dimensions: Ø 8 x 50 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PVC
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 2 mm
- NPN NC switched output
- Switching frequency 5000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 50 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 48 mm
- Flush mounting: Flush mounting
- NPN NC switched output
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 3.00 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Brand: Global
- Product type
Inductive sensor
- Type
BES03TF
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching distance (max.)
1.6 mm
- Switching frequency
5000 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Size
M8
- Enclosure material
Brass
- Contact type
1 breaker
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
50.00 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 50.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417417 BALLUFF Inductive sensor Inductive BES03TF BES03TF M8 shielded NPN (Ø x L) 8 mm x 50.00 mm
User & Safety Instructions
User & Safety Instructions 3417417 BALLUFF Inductive sensor Inductive BES03TF BES03TF M8 shielded NPN (Ø x L) 8 mm x 50.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 50 mm, design=M8x1, installation=flush, range=2 mm, switching output=NPN NC), Switching frequency=5000 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=cable, 2.00 m, PVC, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CEEACcULusWEEE
