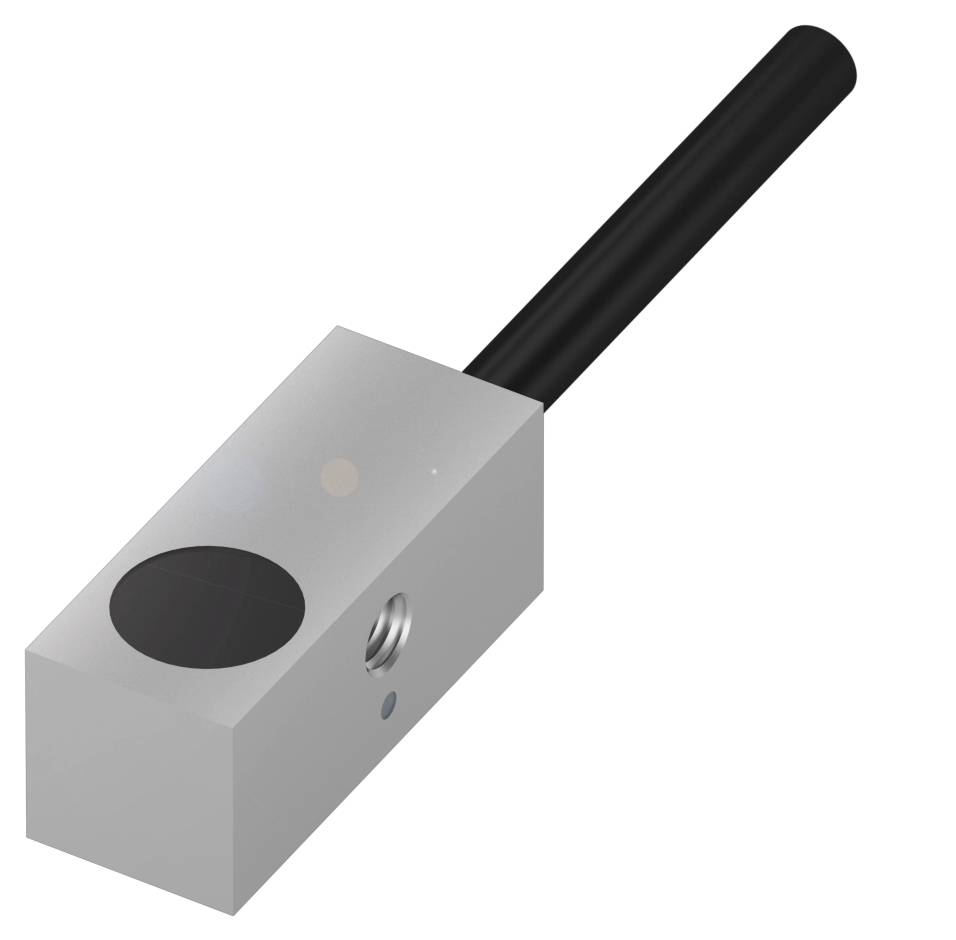

Image similar
BALLUFF Inductive sensor Inductive BES03YK BES03YK shielded PNP (Ø x H) 3 m x 8.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.6 mm
Datasheet (PDF)
Highlights & Details
Balluff BES03YK inductive proximity switches
- Dimensions 20 x 8 x 8 mm
- Size: 8x8
- Flush mounting
- Range: 2 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimension 20 x 8 x 8 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- Size: 8x8
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 2 mm
- Switching output: PNP NC
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 20 x 8 x 8 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open emitter
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.3 µF
- Idle current IO max., dammed.: 3 mA
- Idle current IO max., unattenuated: 9 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 2.8 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: PBT
- Tightening torque 0.5 Nm
- Size 8x8
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 3.00 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES03YK
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching distance (max.)
1.6 mm
- Switching frequency
3000 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
8.00 mm
- Width
20.00 mm
- Height
8.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 8.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416666 BALLUFF Inductive sensor Inductive BES03YK BES03YK shielded PNP (Ø x H) 3 m x 8.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416666 BALLUFF Inductive sensor Inductive BES03YK BES03YK shielded PNP (Ø x H) 3 m x 8.00 mm Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions = 20 x 8 x 8 mm, design = 8x8, installation = flush, range = 2 mm, switching output = PNP NC), Switching frequency=3000 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=cable, 2.00 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=cULusCEEACWEEE
