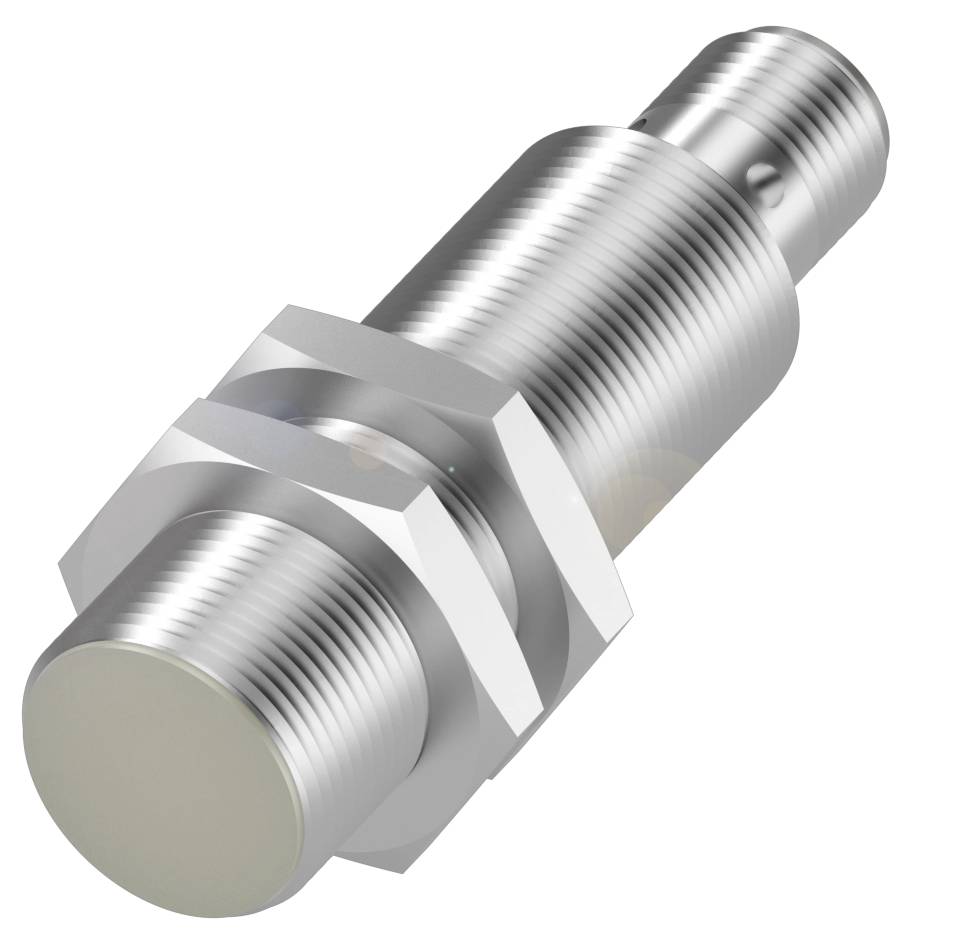

BALLUFF Inductive sensor Inductive BES0437 BES0437 M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
6.4 mm
Datasheet (PDF)
Highlights & Details
Balluff BES0437 Cylindrical design for hygiene applications
- Dimensions: Ø 18 x 65 mm
- Design M18x1
- Flush mounting
- Range: 8 mm
- Special features: Washdown
Technical specifications
- Main features:Dimensions: Ø 18 x 65 mm
- Active surface, material: PEEK
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Special features: Washdown
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel (1.4404)
- Range: 8 mm
- Switching output: PNP NO
- Switching frequency 700 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 700 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 6.4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 8 mm
- Real switching distance Sr:8 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- MTTF (40 °C) 830 a
- Active surface, material: PEEK
- Tightening torque 45 Nm
- Size M18x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Switching distance indicator: ■■
- Housing material: Stainless steel (1.4404)
- Brand: Proxinox®
- Repeatability max. (% of Sr) Functional safety: 5.0%
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES0437
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
6.4 mm
- Switching frequency
700 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18 x 1
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Contact type
1 maker
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
65.00 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 65.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417193 BALLUFF Inductive sensor Inductive BES0437 BES0437 M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417193 BALLUFF Inductive sensor Inductive BES0437 BES0437 M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
Description
Our wash-down and hygienic inductive sensors BES are extremely resistant to high pressure cleaning as well as to abrasive and aggressive media. The housing design and the selection of materials have been optimized for safe and lasting use in packaging, food and beverage. Full-PTFE versions are available for use in extremely aggressive environments. Special features = wash-down, dimension = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 8 mm, switching output = PNP NO, switching frequency = 700 Hz, housing material = stainless steel (1.4404), active surface, material = PEEK, connection = connector, M12x1 connector, 4-pole, operating voltage Ub = 10...30 VDC, ambient temperature = -40...85 °C, protection type = IP68, approval/conformity = CE, UKCA, cULus, Ecolab WEEE
