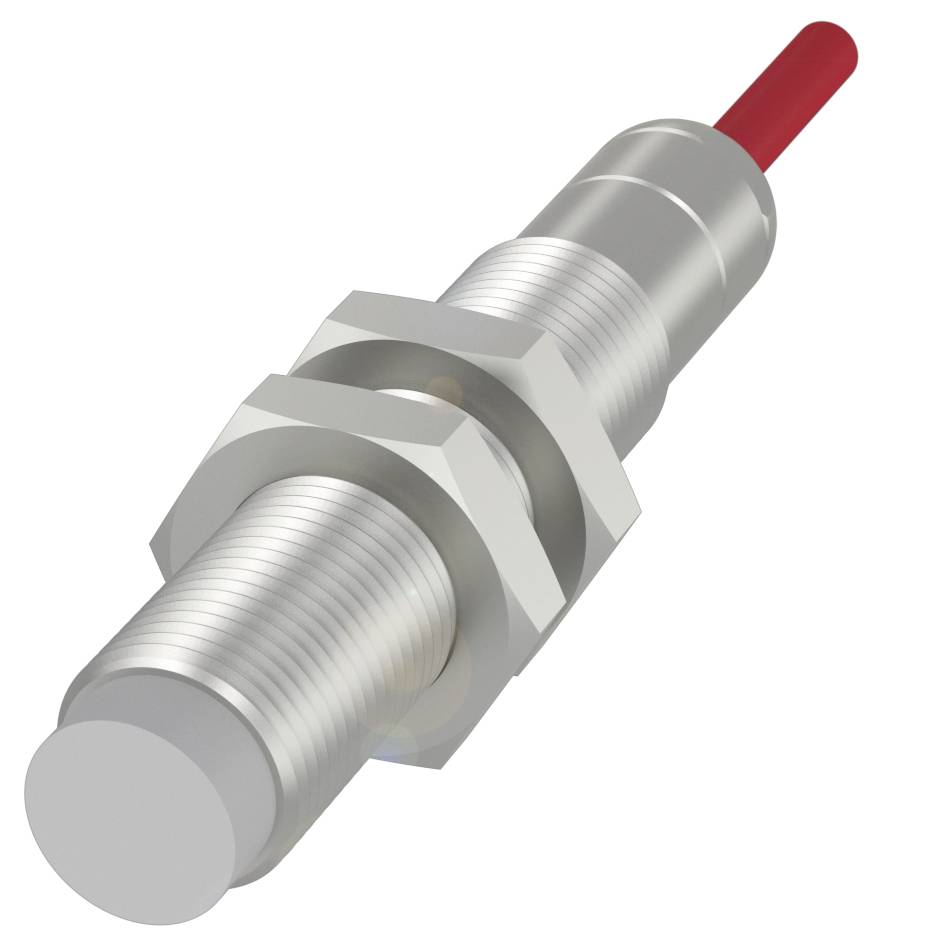

BALLUFF Inductive sensor Inductive BES04CL BES04CL M12 non-shielded PNP (Ø x H) 12 mm x 66 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
3.2 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES04CL Cylindrical design for temperature resistant applications
- Dimensions: Ø 12 x 66 mm
- Design M12x1
- Fitting: Non-shielded
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 66 mm
- Active surface, material: PEEK
- Connection: Cable, 2.00 m, PTFE
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel (1.4571)
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 200 Hz
- Protection class: IP68
- Ambient temperature: -25 to 160 °C
- Additional features:
- Dimensions: Ø 12 x 66 mm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 160 ms
- Operating voltage Ub 10...30 VDC
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 200 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: PEEK
- Size M12x1
- Mounting length 47.00 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Connection type: Cable, 2.00 m, PTFE
- Cable diameter D 3.70 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4571)
- Sheath material: PTFE, FEP
- Protection class: IP68
- Ambient temperature: -25 to 160 °C
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Product type
Inductive sensor
- Type
BES04CL
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
M12
- Cable length
2.00 m
- Min. temperature
-25 °C
- Max. temperature
160 °C
IP68
- Length
66.00 mm
- Height
66 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 66 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416582 BALLUFF Inductive sensor Inductive BES04CL BES04CL M12 non-shielded PNP (Ø x H) 12 mm x 66 m
User & Safety Instructions
User & Safety Instructions 3416582 BALLUFF Inductive sensor Inductive BES04CL BES04CL M12 non-shielded PNP (Ø x H) 12 mm x 66 m
Description
Our temperature-resistant sensors are designed for temperatures up to 230 °C: Both the housing and the cable construction are optimized for increased temperatures. The electronics are completely integrated Some variants are also available as high pressure sensors, WAS makes the use even more flexible. Dimensions=Ø 12 x 66 mm, design=M12x1, installation=not flush, range=4 mm, switching output=PNP NO (NO), Switching frequency=200 Hz, housing material=stainless steel (1.4571), active surface, material=PEEK, connection=cable, 2.00 m, PTFE, operating voltage Ub=10...30 VDC, ambient temperature=-25...160 °C, protection class=IP68, approval/conformity=CEEACWEEE
