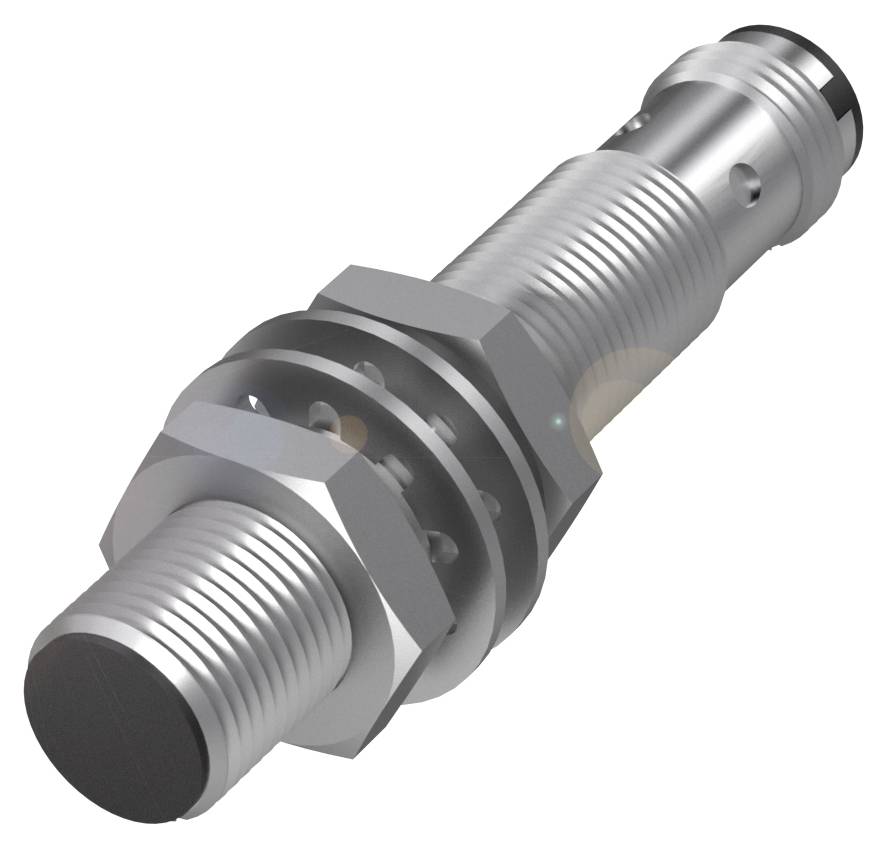

Image similar
BALLUFF Inductive sensor Inductive BES04FK BES04FK M12 shielded IO link (Ø x L) 12 mm x 65.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
IO link
Switching distance (max.)
2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES04FK Cylindrical design
- Dimensions: Ø 12 x 65 mm
- Design M12x1
- Flush mounting
- Range 0.5...2 mm
- Interface: IO-Link 1.1
Technical specifications
- Main features:Dimensions: Ø 12 x 65 mm
- Active surface, material: LCP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range 0.5...2 mm
- Switching frequency 2000 Hz
- Interface: IO-Link 1.1
- Protection type IP68, according to BWN Pr 20
- Ambient temperature: -25 to 85 °C
- Additional features:
- Dimensions: Ø 12 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 250 V AC
- Standby delay TV max.: 21 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 24 mA
- Idle current IO max., unattenuated: 20 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Rated switching distance Sn: 2 mm
- MTTF (40 °C) 415 a
- Active surface, material: LCP
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Housing material: Brass, nickel-free coated
- Application: Object detection
- Measurement range 0.5...2 mm
- Operating mode: SIO mode|IO-Link mode
- Process data IN: Feedback Teaching|successful|1 bytes|switching state|Target too close/wide
- IO-Link Profile IDs: 0x0001 SP0
- Setting option Interface: Factory setting (Reset)|SIO mode/IO-Link mode|Fine adjustment ±0.05 mm
- Hysteresis H max. (% of being): 15%
- Product type
Inductive sensor
- Type
BES04FK
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
IO link
- Switching distance (max.)
2 mm
- Switching frequency
2000 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
shielded
- Size
M12
- Enclosure material
Brass
IP68
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
65.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 65.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417341 BALLUFF Inductive sensor Inductive BES04FK BES04FK M12 shielded IO link (Ø x L) 12 mm x 65.00 mm
User & Safety Instructions
User & Safety Instructions 3417341 BALLUFF Inductive sensor Inductive BES04FK BES04FK M12 shielded IO link (Ø x L) 12 mm x 65.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 65 mm, design=M12x1, installation=flush, range=0.5...2 mm, interface=IO-Link 1.1, Switching frequency=2000 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=LCP, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=12...30 VDC, ambient temperature=-25...85 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
