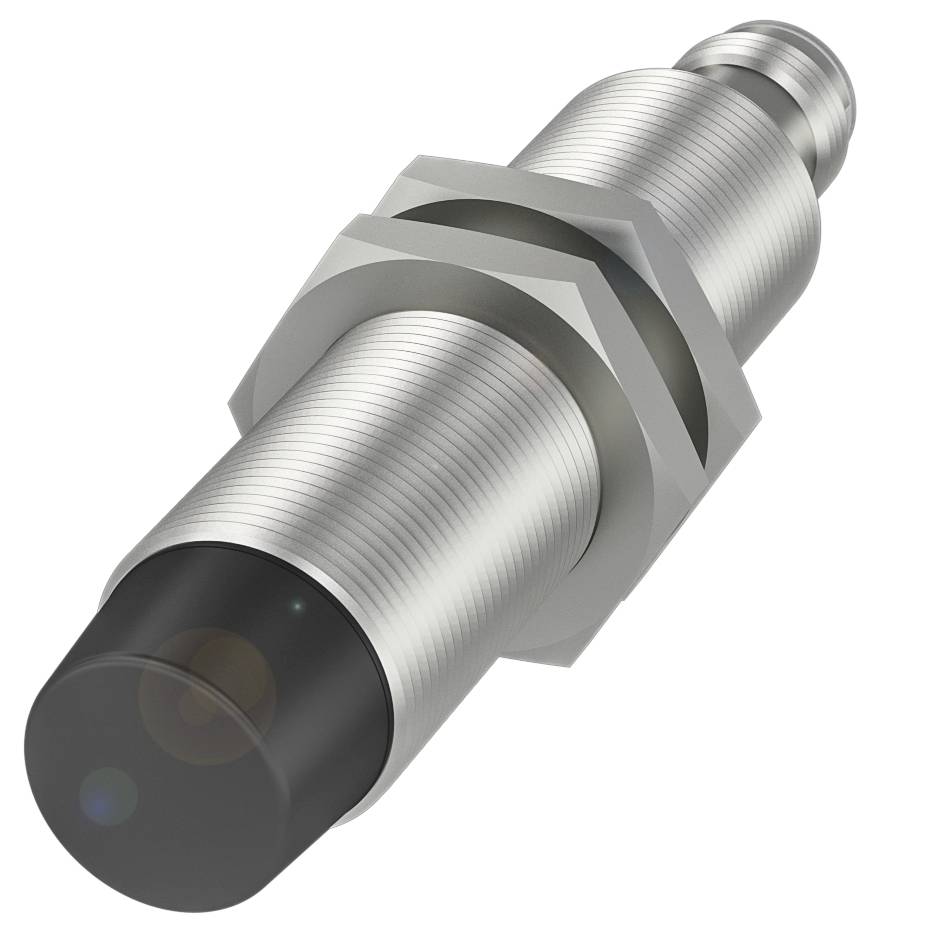

BALLUFF Inductive sensor Inductive BES04RM BES04RM M18 x 1 non-shielded PNP (Ø x H) 18 mm x 86 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
55.0 V
Contact type
Antivalent
Switching distance (max.)
12.8 mm
Datasheet (PDF)
Highlights & Details
Balluff BES04RM Inductive Proximity Switches
- Dimensions: Ø 18 x 86 mm
- Design M18x1
- Fitting: Non-shielded
- Range: 16 mm
- Switching output PNP NO/NC
Technical specifications
- Main features:Dimensions: Ø 18 x 86 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...55 VDC
- Fitting: Non-shielded
- Housing material: Brass, nickel-free coated
- Range: 16 mm
- Switching output PNP NO/NC
- Switching frequency 430 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 86 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + 2D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 35 ms
- Operating voltage Ub 10...55 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 13 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 430 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 12.8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 16.0 mm
- Real switching distance Sr:16 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 271 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 60.5 mm
- Fitting: Non-shielded
- Switching output PNP NO/NC
- Switching distance indicator: ■■
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES04RM
- Min. operating voltage
10.0 V
- Max. operating voltage
55.0 V
- Operating voltage
10.0 - 55.0 V
- Contact type
Antivalent
- Switching distance (max.)
12.8 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M18 x 1
- Connector
M18
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
86.0 mm
- Height
86 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 86 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
430 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416614 BALLUFF Inductive sensor Inductive BES04RM BES04RM M18 x 1 non-shielded PNP (Ø x H) 18 mm x 86 m Piece
User & Safety Instructions
User & Safety Instructions 3416614 BALLUFF Inductive sensor Inductive BES04RM BES04RM M18 x 1 non-shielded PNP (Ø x H) 18 mm x 86 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, connector, NO/NC (NO/NC), nominal switching distance Sn=16.0 mm, not flush, Active surface, material=PBT
