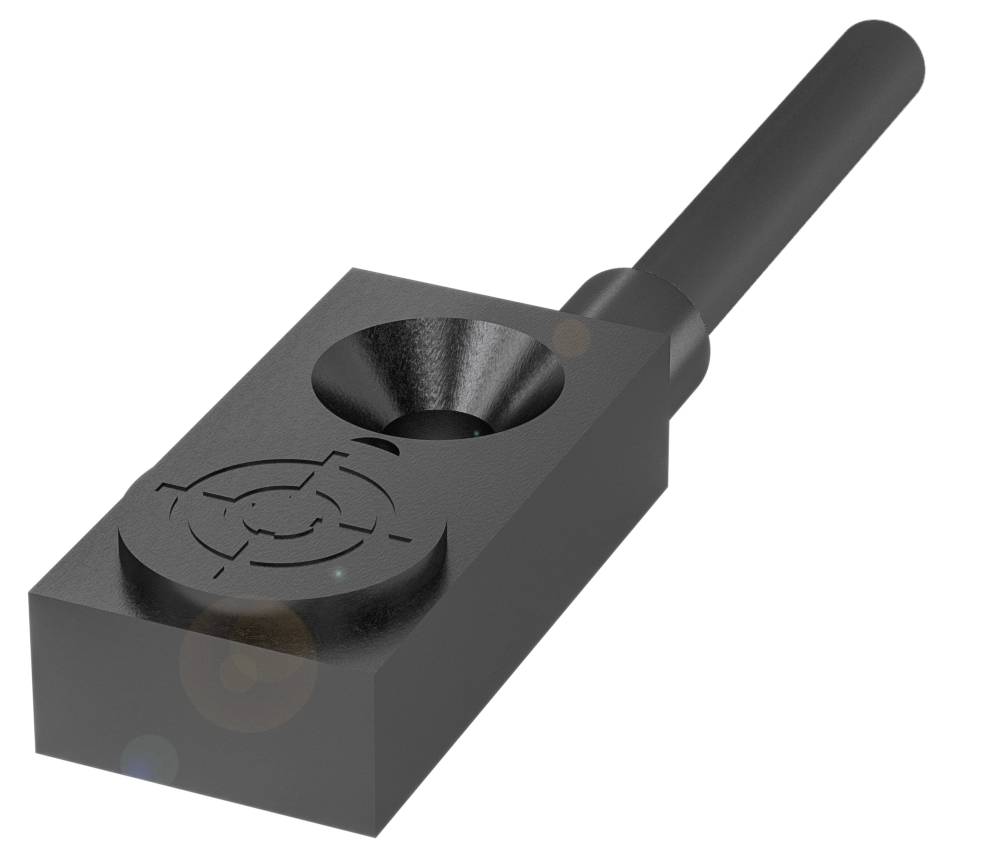

BALLUFF Inductive sensor Inductive BES054K BES054K shielded PNP (Ø x H) 3 m x 8.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.2 mm
Datasheet (PDF)
Highlights & Details
Balluff BES054K Cubic design
- Dimensions 16 x 8 x 4.7 mm
- 16x8x4.7 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 16 x 8 x 4.7 mm
- Active surface, material: PA 6, GF30
- Connection: Cable, 2.00 m, PUR
- 16x8x4.7 design
- Operating voltage Ub 5...30 VDC
- Flush mounting
- PA 6, GF30 housing material
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 2500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 16 x 8 x 4.7 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 21 ms
- Operating voltage Ub 5...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 6 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 50 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Static voltage drop: 1.1 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 305 a
- Active surface, material: PA 6, GF30
- Size 16x8x4.7
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 2.50 mm
- Cable length 2 m
- PA 6, GF30 housing material
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.10 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES054K
- Min. operating voltage
5.0 V
- Max. operating voltage
30.0 V
- Operating voltage
5.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching distance (max.)
1.2 mm
- Switching frequency
2500 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Enclosure material
PA
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
4.70 mm
- Width
16.00 mm
- Height
8.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 8.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417413 BALLUFF Inductive sensor Inductive BES054K BES054K shielded PNP (Ø x H) 3 m x 8.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417413 BALLUFF Inductive sensor Inductive BES054K BES054K shielded PNP (Ø x H) 3 m x 8.00 mm Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=16 x 8 x 4.7 mm, design=16x8x4.7, installation=flush, range=1.5 mm, switching output=PNP NO contact (NO), Switching frequency=2500 Hz, casing material=PA 6, GF30, active surface, material=PA 6, GF30, connection=cable, 2.00 m, PUR, operating voltage Ub=5...30 VDC, Ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
