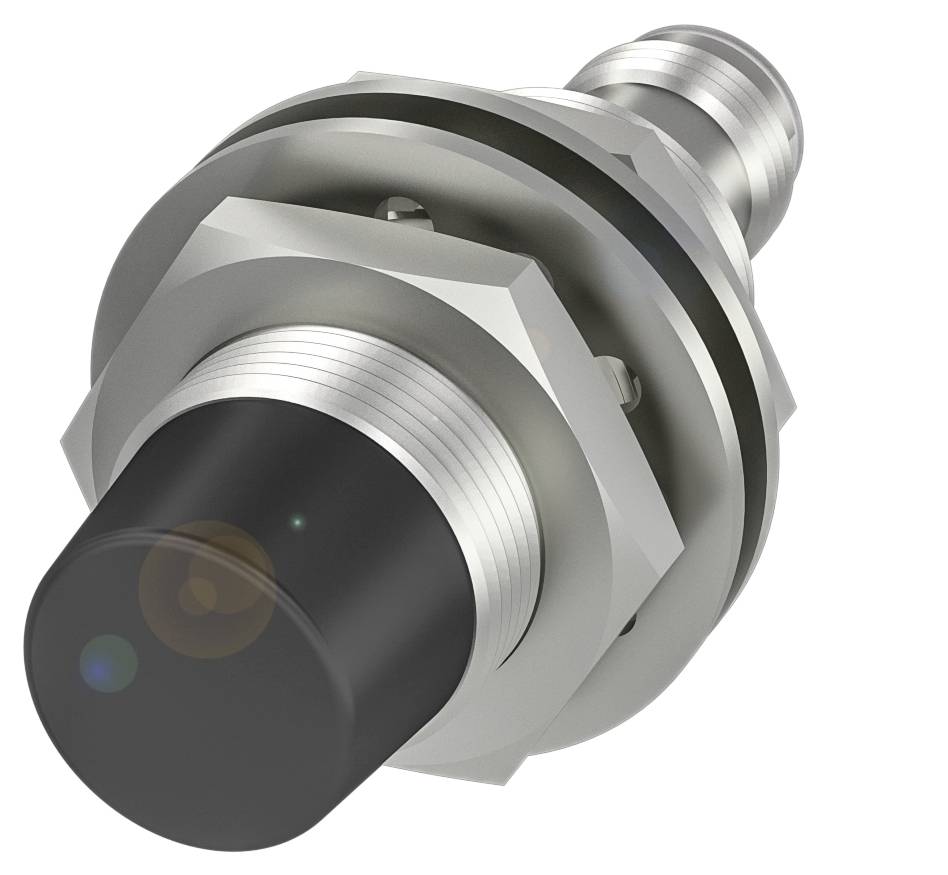

BALLUFF Inductive sensor Inductive BES05AL BES05AL M18 x 1 non-shielded PNP (Ø x H) 18 mm x 56 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30 V
Contact type
1 PNP
Switching distance (max.)
9.7 mm
Datasheet (PDF)
Highlights & Details
BES05AL Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 18 x 56 mm
- Design M18x1
- Fitting: Non-shielded
- Range: 12 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 56 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 12 mm
- Switching output: PNP NO
- Switching frequency 2000 Hz
- Protection class IP67
- IP68
- Ambient temperature -40...85 °C
- Additional properties: Factor 1
- Extended temperature range
- Housing resistant to welding spatter
- Additional features:
- Supplied with nut M18x1 (2x)
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 100.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 30 mA
- Idle current IO max., unattenuated: 25 mA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2000 Hz
- Protection class: II
- Static voltage drop: 2 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 9.7 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 12 mm
- Real switching distance Sr:12 mm
- Real switching distance Sr, tolerance: 10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 240 a
- Active surface, material: PBT
- Switching distance indicator: ■■
- Housing material: Brass, coated, PTFE
- Brand: Factor 1
- Additional properties: Factor 1|Extended temperature range|Housing resistant to|Spatter
- Magnetic field strength, interference field: 100 kA/m
- Electrical design: 3-wire
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES05AL
- Min. operating voltage
10.0 V
- Max. operating voltage
30 V
- Operating voltage
10.0 - 30 V
- Contact type
1 PNP
- Switching distance (max.)
9.7 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M18 x 1
- Connector
M18
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
56 mm
- Height
56 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 56 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416037 BALLUFF Inductive sensor Inductive BES05AL BES05AL M18 x 1 non-shielded PNP (Ø x H) 18 mm x 56 m Piece
User & Safety Instructions
User & Safety Instructions 3416037 BALLUFF Inductive sensor Inductive BES05AL BES05AL M18 x 1 non-shielded PNP (Ø x H) 18 mm x 56 m Piece
Description
Balluff's inductive factor 1 sensors detect all metals with high precision and convince especially where different types of metals are used. They offer high switching distances without a reduction factor and are magnetic field-proof, so that they are suitable for the area of strong electromagnetic fields - for example, for welding systems. For these harsh environments, you also get appropriate variants with an extremely resistant coating against welding spatter. Inductive sensor, Ø 18 x 56 mm, connector, NO (NO), nominal switching distance Sn=12 mm, not flush, Housing material=brass, active surface, material=PBT
