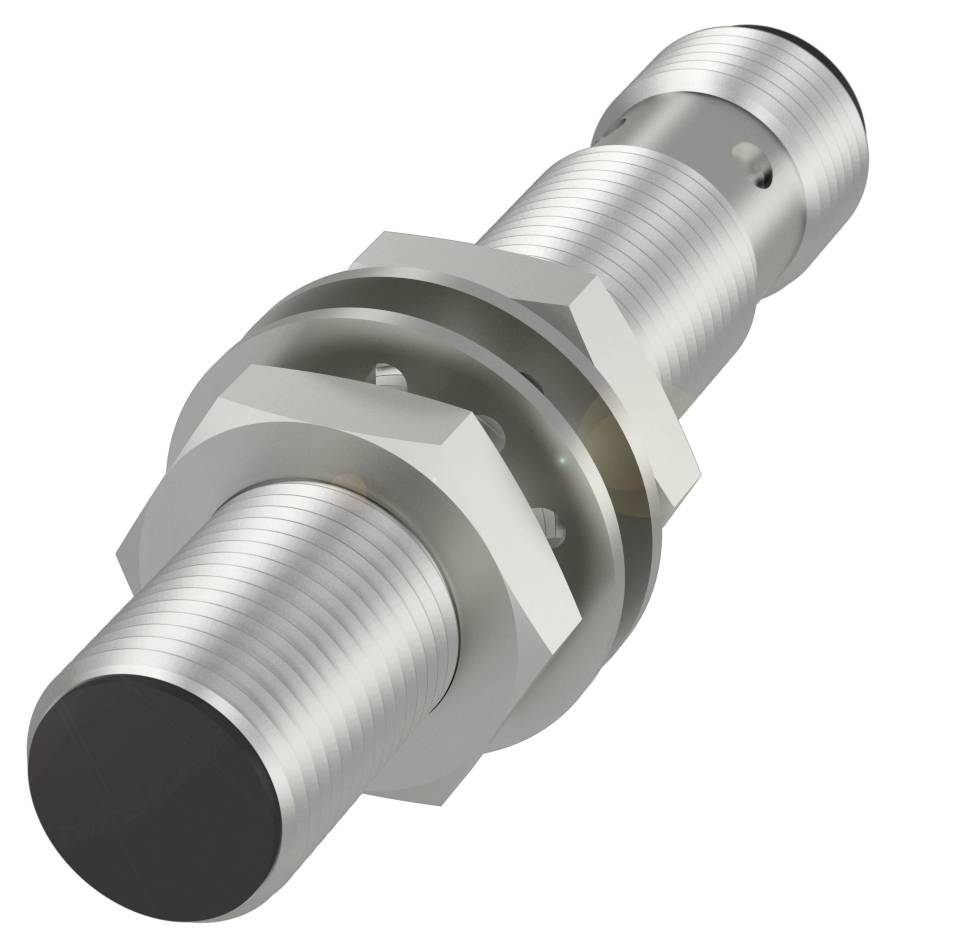

BALLUFF Inductive sensor Inductive BES05F9 BES05F9 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
3.2 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES05F9 Inductive proximity switch
- Dimensions: Ø 12 x 65 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 65 mm
- Active surface, material: LCP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 14 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 675 a
- Active surface, material: LCP
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Switching distance indicator: ■■
- Additional properties: Function monitoring*
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES05F9
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
65.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 65.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416565 BALLUFF Inductive sensor Inductive BES05F9 BES05F9 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416565 BALLUFF Inductive sensor Inductive BES05F9 BES05F9 shielded PNP (Ø x L) 12 mm x 65.00 mm Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 12 x 65 mm, design = M12x1, installation = flush, range = 4 mm, switching output = PNP NO, switching frequency = 1000 Hz, housing material = brass, nickel-free coated, active surface, material = LCP, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP68, approval/conformity = CE, UKCA, cULus, WEEE
