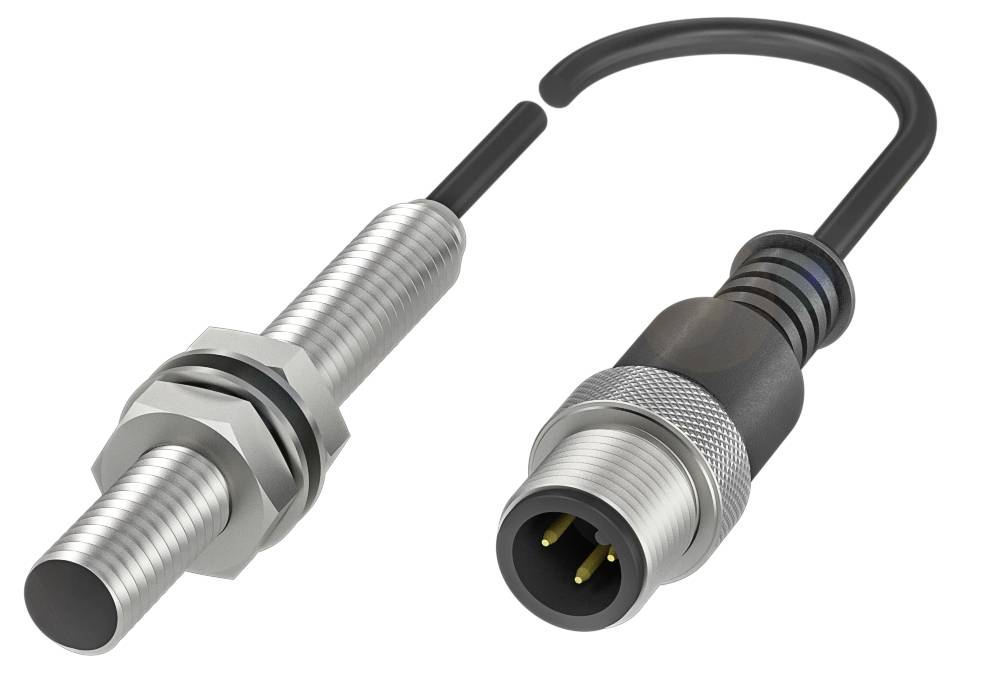

BALLUFF Inductive sensor Inductive BES05U9 BES05U9 M8 quasi-shielded PNP (Ø x H) 8 mm x 60 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
2.9 mm
Datasheet (PDF)
Highlights & Details
BES05U9 Cylindrical design
- Dimensions: Ø 8 x 60 mm
- M8x1 design
- Mounting: Quasi flush-shielded
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 8 x 60 mm
- Active surface, material: PBT
- Connection: Cable with connector, M12x1 connector, 3-pin, 0.3 m, PUR
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Mounting: Quasi flush-shielded
- Housing material: Brass, nickel-free coated
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 1200 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 60 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 100.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 40 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 11 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 1200 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 connector, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.9 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- MTTF (40 °C) 584 a
- Active surface, material: PBT
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 58 mm
- Mounting: Quasi flush-shielded
- Switching output: PNP NO
- Connection type: Cable with connector, 0.3 m,|PUR
- Cable diameter D 3 mm
- Cable length 0.3 m
- Switching distance indicator: ■■■■
- Housing material: Brass, nickel-free coated
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES05U9
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
1 maker
- Switching distance (max.)
2.9 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
quasi-shielded
- Size
M8
- Connector
M8
- Cable length
0.3 m
- Features
3x M12 connector
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
60.00 mm
- Height
60 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 60 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416057 BALLUFF Inductive sensor Inductive BES05U9 BES05U9 M8 quasi-shielded PNP (Ø x H) 8 mm x 60 m Piece
User & Safety Instructions
User & Safety Instructions 3416057 BALLUFF Inductive sensor Inductive BES05U9 BES05U9 M8 quasi-shielded PNP (Ø x H) 8 mm x 60 m Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 8 x 60 mm, design = M8X1, installation = quasi flush, range = 4 mm, switching output = PNP NO, switching frequency = 1200 Hz, housing material = brass, nickel-free coated, active surface, material = PBT, Connection = cable with connector, M12x1 connector, 3-pin, 0.3 m, PUR, Operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
