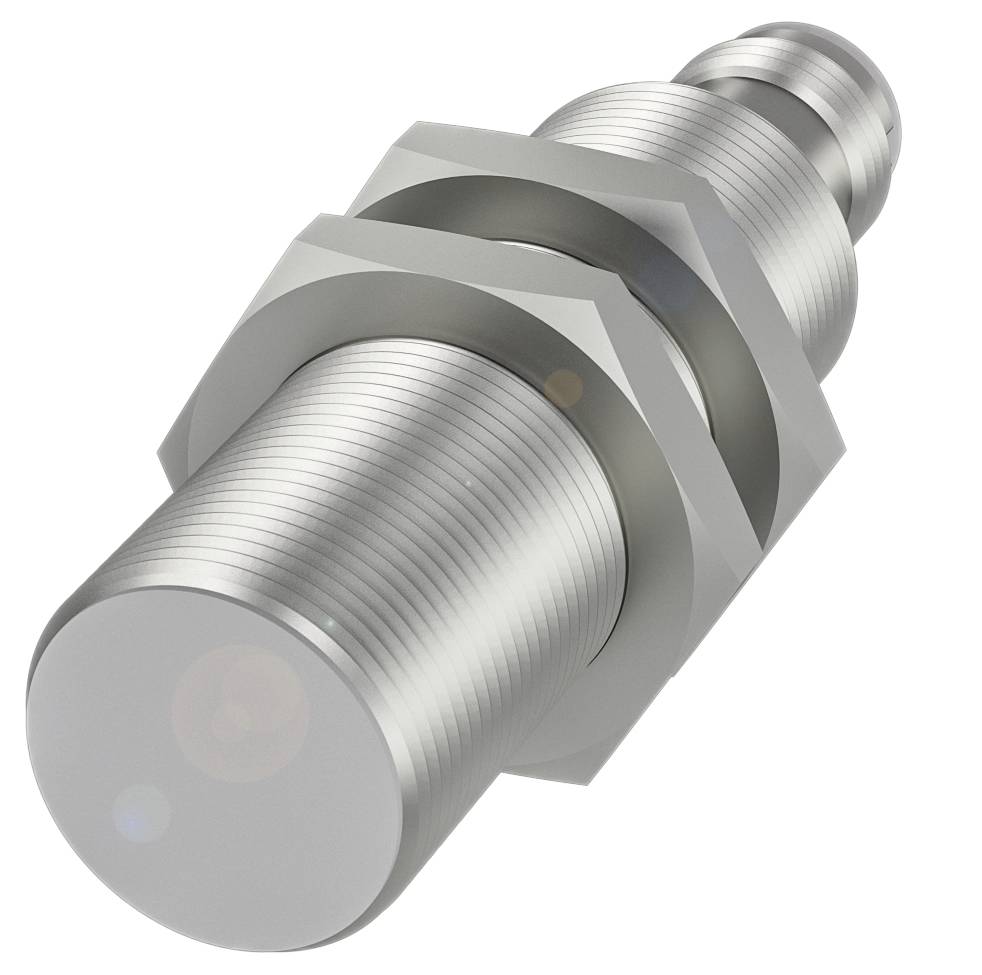

BALLUFF Inductive sensor Inductive BES05Y1 BES05Y1 M18 shielded PNP (Ø x H) 18 mm x 66 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
4 mm
Datasheet (PDF)
Highlights & Details
Balluff BES05Y1 Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 18 x 66 mm
- Design M18x1
- Flush mounting
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 66 mm
- Active surface, material: PBT, PTFE coated
- Connection: Connector, M12x1 connector, 3-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class IP67
- IP68
- Ambient temperature -40...85 °C
- Additional properties: Factor 1
- Extended temperature range
- Sweat-resistant (magnetic field 100kA/m)
- Housing resistant to welding spatter
- Additional features:
- Supplied with nut (2x)
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 2 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 15 mA
- Idle current IO max., unattenuated: 5 mA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Protection class: II
- Static voltage drop: 2 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: 10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 400.5 a
- Active surface, material: PBT, PTFE coated
- Switching distance indicator: ■
- Housing material: Brass, coated, PTFE
- Additional properties: Factor 1|extended temperature range|sweat-resistant (magnetic field 100kA/|m)|Housing resistant to|Weld spatter
- Magnetic field strength, interference field: 100 kA/m
- Electrical design: 3-wire
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES05Y1
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
4 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18
- Enclosure material
Brass
- Contact type
1 maker
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
66 mm
- Height
66 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 66 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416059 BALLUFF Inductive sensor Inductive BES05Y1 BES05Y1 M18 shielded PNP (Ø x H) 18 mm x 66 m Piece
User & Safety Instructions
User & Safety Instructions 3416059 BALLUFF Inductive sensor Inductive BES05Y1 BES05Y1 M18 shielded PNP (Ø x H) 18 mm x 66 m Piece
Description
Balluff's inductive Factor 1 BES sensors can be used wherever various types of metals have to be detected evenly and with high precision. Our all-rounder for all metals reliably detects iron and non-ferrous metals, steel, brass, aluminum etc. without any reduction factor in the switching distance. In addition, they are magnetic field-proof and can therefore also be used in the area of strong electromagnetic fields - for example in welding systems. For this purpose we also provide variants with PTFE coating against welding spatter. Dimensions = Ø 18 x 66 mm, design = M18x1, installation = flush, range = 5 mm, switching output = PNP NO, switching frequency = 1000 Hz, housing material = brass, coated, PTFE, active surface, Material = PBT, PTFE coated, connector = connector, M12x1 connector, 3-pin, Operating voltage Ub = 10...30 VDC, ambient temperature = -40...85 °C, magnetic field = magnetic field proof (AC/DC), protection class = IP67, IP68, approval/conformity = CE, UKCA, cULus, WEEE, additional properties = factor 1, extended temperature range, sweat-resistant (magnetic field 100kA/m), casing resistant to weld spatter
