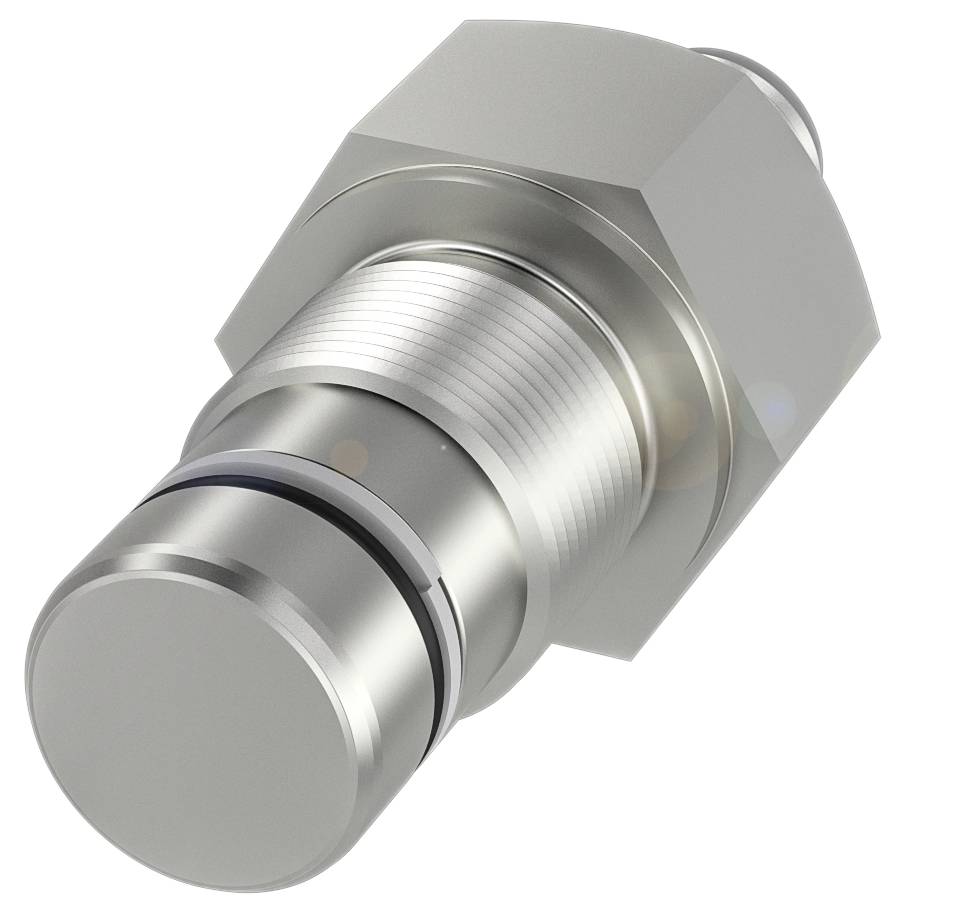

BALLUFF Inductive sensor Inductive BHS0026 BHS0026 M18 x 1 shielded PNP (Ø x H) 18 mm x 58 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
2.1 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BHS0026 High pressure resistant inductive sensors
- Dimensions: Ø 18 x 58 mm
- Design M18x1
- Flush mounting
- Range: 3 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 58 mm
- Active surface, material: PEEK
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 3 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 18 x 58 mm
- Attachment: M18x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 2.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 130 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 3.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 3 mm
- Real switching distance Sr:3 mm
- Real switching distance Sr, tolerance: -20 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 1620 a
- Active surface, material: PEEK
- Tightening torque: 40 Nm ±10%
- Size M18x1
- Mounting length 13.00 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel
- Seal material NBR 60-80
- Support ring material PTFE
- Sealing ring, size 13 × 1.5 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Inductive sensor
- Type
BHS0026
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
2.1 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Connector
M18
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP68
- Length
58.00 mm
- Height
58 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 58 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416887 BALLUFF Inductive sensor Inductive BHS0026 BHS0026 M18 x 1 shielded PNP (Ø x H) 18 mm x 58 m
User & Safety Instructions
User & Safety Instructions 3416887 BALLUFF Inductive sensor Inductive BHS0026 BHS0026 M18 x 1 shielded PNP (Ø x H) 18 mm x 58 m
Description
Our high-pressure inductive sensors BHS can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as when checking the end position of hydraulic cylinders or monitoring valve positions. Their load capacity is made possible by medium-resistant housing materials and a special sealing method. For your individual applications we offer various designs as well as an extensive range with different housing diameters and thread sizes. Dimensions = Ø 18 x 58 mm, design = M18x1, installation = flush, range = 3 mm, switching output = PNP NO, switching frequency = 400 Hz, housing material = stainless steel, active surface, material = PEEK, connection = connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...80 °C, compressive strength max. = 500 bar, protection class = IP68, approval/conformity = CE, UKCA, WEEE
