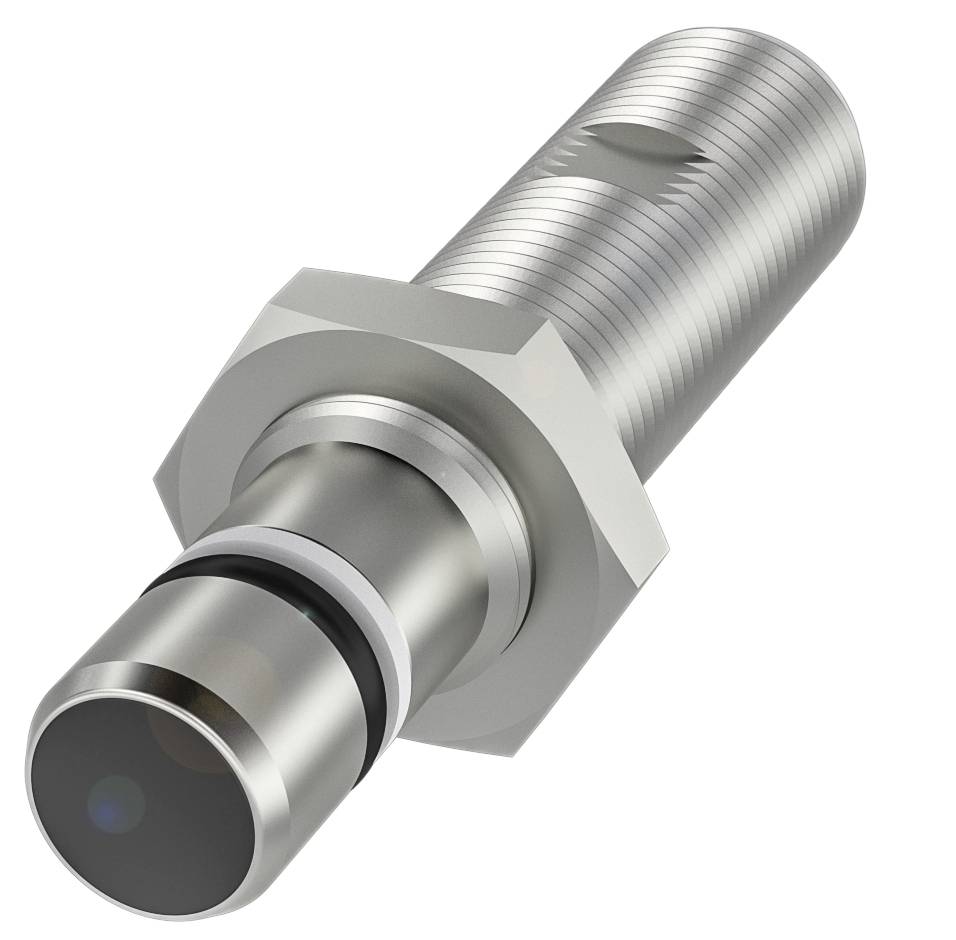

Image similar
Image similar
BALLUFF Inductive sensor Inductive BHS0034 BHS0034 shielded (Ø x H) 12 mm x 56 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
9.0 V
Switching distance (max.)
1.1 mm
Model
Inductive
Connector
M12
Datasheet (PDF)
Highlights & Details
Balluff BHS0034 Inductive sensors for areas at risk of explosion
- Dimensions: Ø 12 x 56 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Interface: NAMUR
Technical specifications
- Main features:Dimensions: Ø 12 x 56 mm
- Active surface, material: POM
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 7.7...9 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Ex category: ATEX: 2G (EPL GB)
- ATEX 3G (EPL GC)
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching frequency 1000 Hz
- Interface: NAMUR
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 56 mm
- Attachment: M12x1
- Operating voltage display: No.
- Function display: No.
- Rated operating voltage Ue DC 8.2 V
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 10 ms
- Operating voltage Ub 7.7...9 VDC
- Usage category: DC-12
- Switching frequency 1000 Hz
- Connection: M12x1 4-pin connector, A-coded
- Safe from polarity reversal: Up to 9 V.
- Guaranteed switching distance of Sa: 1.1 mm
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: -20 %
- Temperature drift max. (% of Sr): -10 %/20 %
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: POM
- Tightening torque: 15 Nm ±10%
- Size M12x1
- Mounting length 21.60 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Interface: NAMUR
- Support ring material PTFE
- Sealing ring, size 5.3 × 2.4 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Ex marking: ATEX: EX II 2G Ex ia IIC T6 GB|IECEx: EX ia IIC T6 GB|CCC: Ex ia IIC T6 GB
- Rated load resistance RV 1000 Ohm
- Internal inductance Li max. 0.5 nH
- Internal capacity CI max.: 30 nF
- Power consumption max., dammed 1 mA
- Power consumption min., unattenuated: 4 mA
- Series resistor RV approved 550...1100 ohms
- Product type
Inductive sensor
- Type
BHS0034
- Min. operating voltage
7.7 V
- Max. operating voltage
9.0 V
- Operating voltage
7.7 - 9.0 V
- Switching distance (max.)
1.1 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M12
- Installation type
shielded
- Material properties
rust-proof
- Enclosure material
Stainless steel
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
56.00 mm
- Height
56 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 56 m
- Nominal voltage
8.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416555 BALLUFF Inductive sensor Inductive BHS0034 BHS0034 shielded (Ø x H) 12 mm x 56 m
User & Safety Instructions
User & Safety Instructions 3416555 BALLUFF Inductive sensor Inductive BHS0034 BHS0034 shielded (Ø x H) 12 mm x 56 m
Description
For all Ex-zones, we supply inductive sensors. These wear-free switches can be used in areas of zones 2/22, where an explosive atmosphere only rarely occurs (category 3G/3D), up to areas of zones 0/20, where the highest explosion hazard exists.With a wide range of sensor variants, we offer a wide range of applications so that you can solve a wide variety of requirements. The comprehensive portfolio includes, for example, high-pressure sensors up to 500 bar or sensors with extended temperature range - in different designs. You will of course also get the suitable accessories, such as NAMUR isolating amplifiers or connecting cables. Dimensions = Ø 12 x 56 mm, design = M12x1, installation = flush, range = 1.5 mm, switching frequency = 1000 Hz, housing material = stainless steel, active surface, material = POM, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 7.7...9 VDC, ambient temperature = -25...70 °C, compressive strength max. = 500 bar, protection class = IP68, approval/conformity = CE, UKCA, CCC Ex, IECEx, ATEX, WEEE
