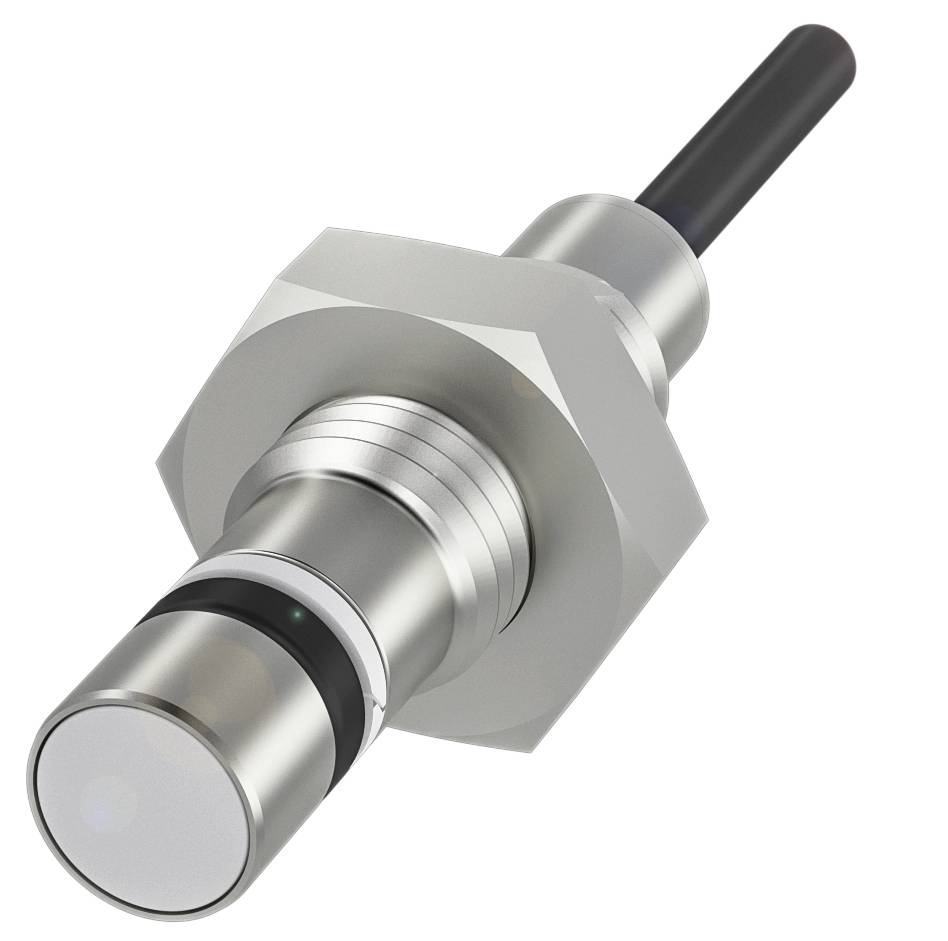

BALLUFF Inductive sensor Inductive BHS0058 BHS0058 M8 shielded PNP (Ø x L) 6.5 mm x 31.30 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BHS0058 Cylindrical design for high pressure resistant applications
- Dimensions: Ø 6.5 x 31.3 mm
- M8x1 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 6.5 x 31.3 mm
- Active surface, material: Ceramic
- Connection: Cable, 2.00 m, PUR
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 4000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 6.5 x 31.3 mm
- Attachment: M8x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 10 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 4000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 735 a
- Active surface, material: Ceramic
- Tightening torque: 7 Nm ±10%
- Size M8x1
- Mounting length 14.00 mm
- Flush mounting: Flush mounting
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 2.50 mm
- Cable length 2 m
- Housing material: Stainless steel
- Sheath material: PUR
- Number of conductors: 3
- Conductor cross-section: 0.10 mm²
- Seal material NBR 70
- Support ring material PTFE
- Sealing ring, size 4 × 1.5 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Inductive sensor
- Type
BHS0058
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching distance (max.)
1.2 mm
- Switching frequency
4000 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Size
M8
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP68
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
31.30 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 31.30 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417436 BALLUFF Inductive sensor Inductive BHS0058 BHS0058 M8 shielded PNP (Ø x L) 6.5 mm x 31.30 mm
User & Safety Instructions
User & Safety Instructions 3417436 BALLUFF Inductive sensor Inductive BHS0058 BHS0058 M8 shielded PNP (Ø x L) 6.5 mm x 31.30 mm
Description
Our high-pressure inductive sensors BHS can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as when checking the end position of hydraulic cylinders or monitoring valve positions. Their load capacity is made possible by medium-resistant housing materials and a special sealing method. For your individual applications we offer various designs as well as an extensive range with different housing diameters and thread sizes. Dimensions = Ø 6.5 x 31.3 mm, design = D6.5, installation = flush, range = 1.5 mm, switching output = PNP NO, switching frequency = 4000 Hz, housing material = stainless steel, active surface, material = ceramic, connection = cable, 2.00 m, PUR, operating voltage Ub = 10...30 VDC, ambient temperature = -25...80 °C, compressive strength max. = 500 bar, protection class = IP68, certification/conformity = CE, UKCA, cULus, WEEE
