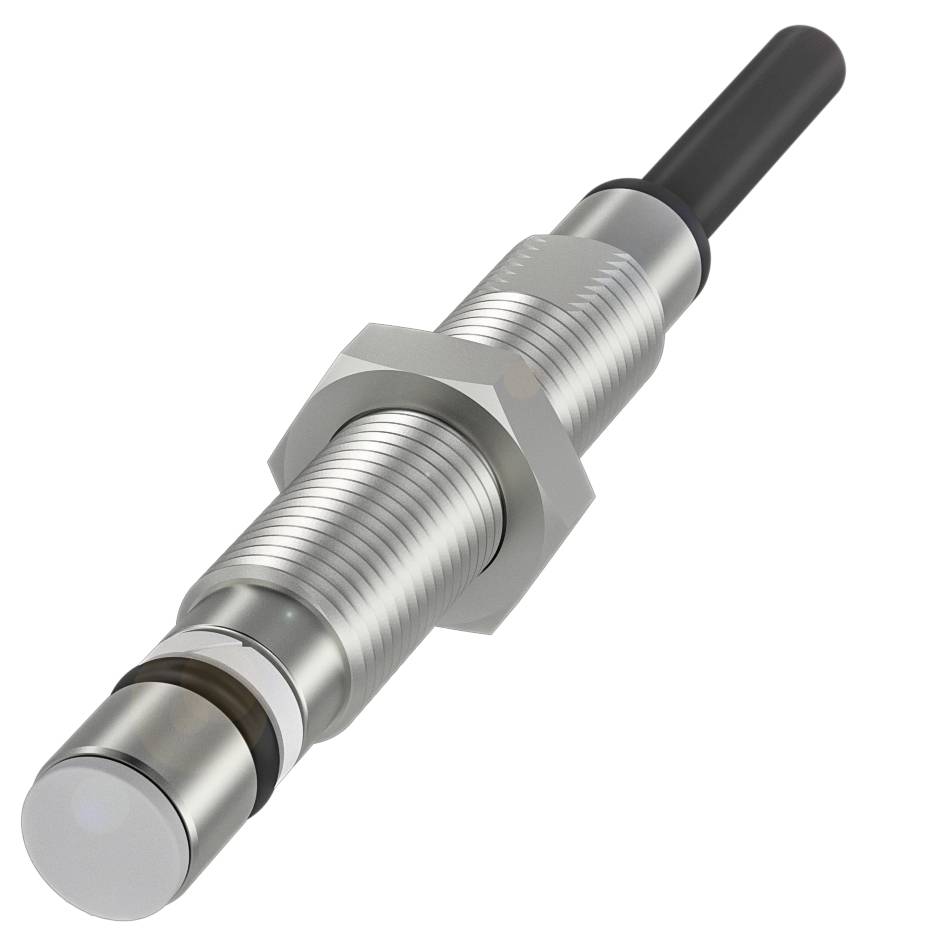

BALLUFF Inductive sensor Inductive BHS006U BHS006U M5 shielded PNP (Ø x L) 5 mm x 32.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
0.8 mm
Datasheet (PDF)
Highlights & Details
Balluff BHS006U Cylindrical design for high pressure resistant applications
- Dimensions: Ø 5 x 32 mm
- Size: M5x0.5
- Flush mounting
- Range: 1 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 5 x 32 mm
- Active surface, material: Ceramic
- Connection: Cable, 2.00 m, PUR
- Size: M5x0.5
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 1 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 5 x 32 mm
- Attachment: M5x0.5
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 10 mA
- Load capacity max. at Ue 0.4 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Guaranteed switching distance of Sa: 0.8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1 mm
- Real switching distance Sr:1 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 10.0%
- Active surface, material: Ceramic
- Tightening torque: 1 Nm ±10%
- Size M5x0.5
- Mounting length 19.50 mm
- Flush mounting: Flush mounting
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 2.50 mm
- Cable length 2 m
- Housing material: Stainless steel
- Sheath material: PUR
- Number of conductors: 3
- Conductor cross-section: 0.10 mm²
- Seal material NBR 70
- Support ring material PTFE
- Sealing ring, size 2.35 × 1 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BHS006U
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
0.8 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M5
- Connector
M5
- Cable length
2.00 m
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP68
- Length
32.00 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 32.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416078 BALLUFF Inductive sensor Inductive BHS006U BHS006U M5 shielded PNP (Ø x L) 5 mm x 32.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416078 BALLUFF Inductive sensor Inductive BHS006U BHS006U M5 shielded PNP (Ø x L) 5 mm x 32.00 mm Piece
Description
Our high-pressure inductive sensors BHS can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as when checking the end position of hydraulic cylinders or monitoring valve positions. Their load capacity is made possible by medium-resistant housing materials and a special sealing method. For your individual applications we offer various designs as well as an extensive range with different housing diameters and thread sizes. Dimensions = Ø 5 x 32 mm, design = M5x0.5, installation = flush, range = 1 mm, switching output = PNP NO, switching frequency = 3000 Hz, housing material = stainless steel, active surface, material = ceramic, connection = cable, 2.00 m, PUR, operating voltage Ub = 10...30 VDC, ambient temperature = -25...80 °C, compressive strength max. = 500 bar, protection class = IP68, certification/conformity = CE, UKCA, cULus, WEEE
