BALLUFF Light grid BLG0001 BLG0001 Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Light grid
Functions
Dark-ON
Max. operating voltage
28.0 V
Connector
M12
Datasheet (PDF)
Highlights & Details

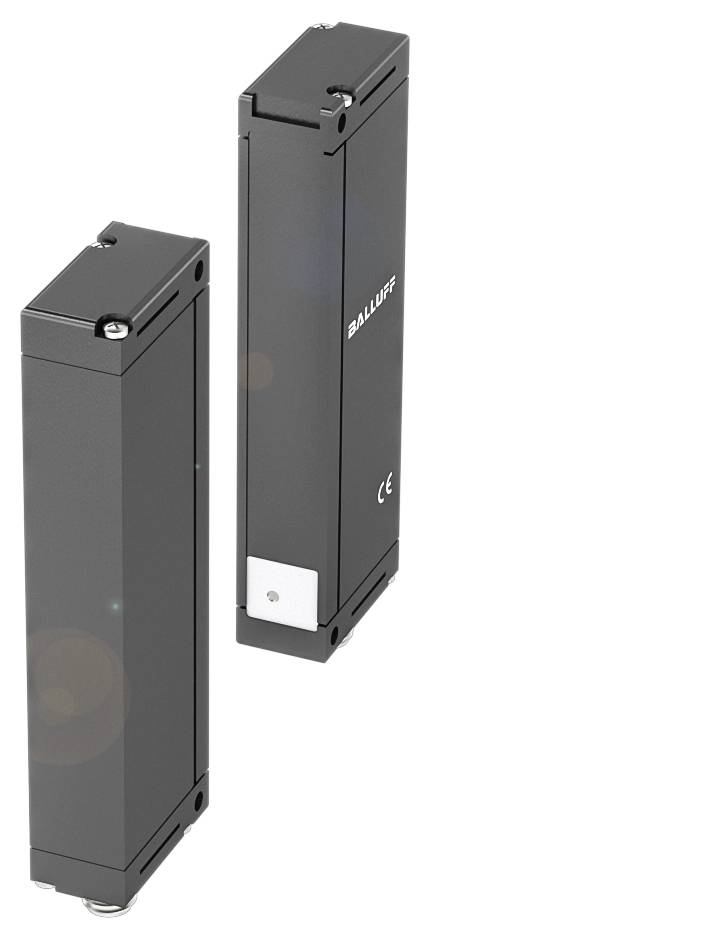

Balluff BLG0001 Light grid
- Dimensions 22 x 150.1 x 43.2 mm
- Series 1-010
- Interface: Analog, voltage 0…10 V.
- PNP no
- Light grid function
- Active length AL 1: 100 mm
Technical specifications
- Main features:Dimension 22 x 150.1 x 43.2 mm
- Active surface, material: PMMA
- Active length AL 1: 100 mm
- Connection: Connector, M12x1 connector
- Series 1-010
- Operating voltage Ub 20...28 VDC
- Light grid function
- Optical functional principle: One-way light barrier
- Housing material: Aluminium, anodized
- Smallest part type: 5.0 @ t 0.5 x Sn, R 0 = 2.1 m.
- Type of light: Infrared
- Range 0 - 2.1 m
- Interface: Analog, voltage 0…10 V.
- PNP no
- Beam characteristics: Varied
- Additional features:
- Light grid function
- Dimensions 22 x 150.1 x 43.2 mm
- Mounting: M4 screw
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Operating voltage Ub 20...28 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 15%
- Switching frequency 250 Hz
- Connection: Connector, M12x1 connector
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Rated switching distance Sn: 2.1 m.
- MTTF (40 °C) 44 a
- Active surface, material: PMMA
- Housing material: Aluminium, anodized
- Range 0 - 2.1 m
- Surface protection: Anodised
- Series 1-010
- Shape: Cube|connection 90°
- Display: Output function - LED yellow|LED green: Operating voltage|Error - LED green, old|Stability - LED green
- Shutdown delay toff max.: 2 ms
- ON delay max.: 2 ms
- Input function: Synchronisation (transmitter)
- Resolution ≤ 3.5 mm
- Connection 2: M12x1
- Active length AL 1: 100 mm
- Packaging type
Piece
- Product type
Light grid
- Type
BLG0001
- Functions
Dark-ON
- Operating voltage
24
- Min. operating voltage
20.0 V
- Max. operating voltage
28.0 V
- Operating voltage
20.0 - 28.0 V
- Contact type
1 maker
- Outputs
PNP
- Switching frequency
250 Hz
- Connector
M12
- Enclosure material
Aluminium
- Material properties
anodised
- Transmitter type
LED IR
2.1 m
IP65
- Min. temperature
0 °C
- Max. temperature
55 °C
- Length
43.20 mm
- Width
22.00 mm
- Height
150.10 mm
- Depth
43.2 m
- Dim
(L x W x H) 43.20 x 22.00 x 150.10 mm
- Content
1 pc(s)
- Smallest detectable object size (diameter)
5.0 mm
- Nominal voltage
28.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417195 BALLUFF Light grid BLG0001 BLG0001 Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417195 BALLUFF Light grid BLG0001 BLG0001 Dark-ON 1 pc(s)
Description
Our light grids are Ideal suitable for querying large areas, counting parts, detecting stack heights (e.g. paper) or for height measurement of pallets. Therefore, they are superior to conventional one-way light barriers, which usually only query selective. The Balluff light grids have a switch output - for example for counting - and an analogue output for measuring tasks. Series=1-010, dimension=22 x 150.1 x 43.2 mm, active length AL 1=100 mm, interface=analogue, voltage 0.10 V PNP NO, operational principle=light grid, operational principle optical=one-way light barrier, beam characteristic=diverse, light type=infrared, Range=0...2.1 m, smallest part type.=5.0 with t 0.5 x Sn, R 0 = 2.1 m, connection=connector, M12x1 connector, case material=Aluminium, active surface, Material=PMMA, operating voltage Ub=20...28 VDC, certification/conformity=CEEEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BLG0001, please refer to its datasheet under 'downloadable documents'
