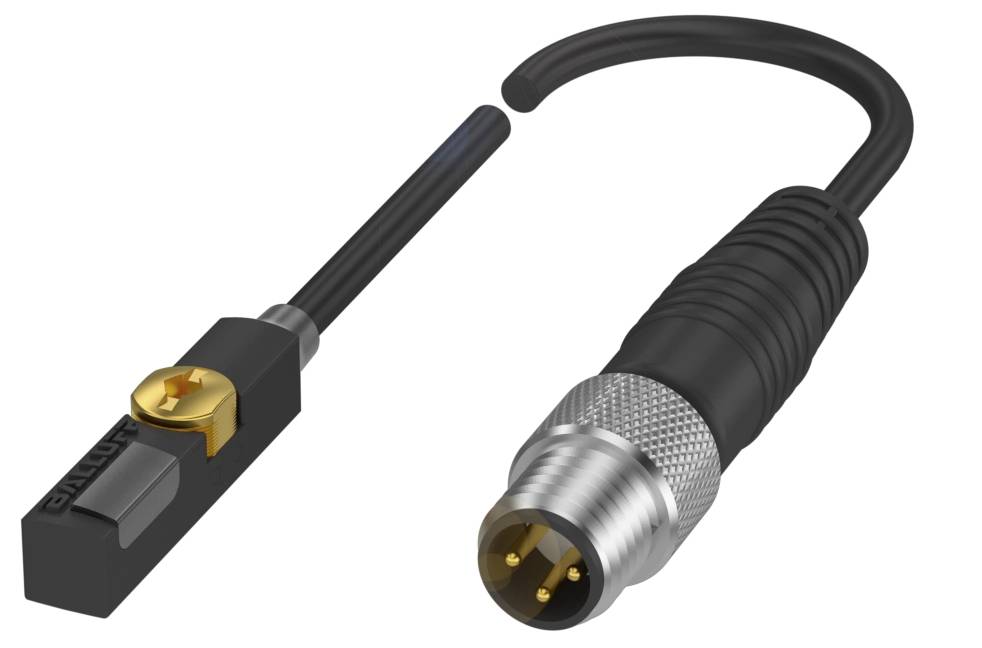

BALLUFF Magnetic field detector Magnetic BMF 235K-PS-C-2A-SA2-S49-00,3 BMF00C4 T groove PNP NC (L x W x H) 23.5 x 5 x 5.
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Magnetic field detector
Max. operating voltage
30 V DC
Outputs
PNP NC
Model
Magnetic
Datasheet (PDF)
Highlights & Details
Balluff BMF00C4 For T-groove
- M8x1 connection, 3-pin
- Dimensions 23.5 x 5 x 5.5 mm
- Cable PUR, 0.3 m
- Magnetic field sensor operating principle
- Groove shape: T-groove
Technical specifications
- Main features:Dimension 23.5 x 5 x 5.5 mm
- M8x1 connection, 3-pin
- Application: Pneumatic cylinder with T-groove. For dimensions, see sketch in product view.
- Mounting: Can be inserted from above in the T-slot
- Operating voltage Ub 10...30 VDC
- Magnetic field sensor operating principle
- PA 12 case material
- Cable PUR, 0.3 m
- Groove shape: T-groove
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Additional features:
- Magnetic field sensor operating principle
- Cable clip for a T-slot
- Dimensions 23.5 x 5 x 5.5 mm
- Mounting: Can be inserted from above in the T-slot
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: No.
- Option to switch, protected: No.
- Active surface, material: PU
- Tightening torque 0.4 Nm
- Switching output: PNP NO
- Cable diameter D 2.50 mm
- Cable length 0.30 m
- PA 12 case material
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 3
- Cable sheath material PUR
- Brand: Global
- Shutdown delay toff max.: 0.1 ms
- ON delay max.: 0.1 ms
- Rated switch panel thickness Hn: 1.2 kA/m.
- Protected panel thickness Ha: 2 kA/m
- Hysteresis H max. (% of Hn): 45%
- ESD 3A (8kV)
- Emission: Group 1, Class B.
- Application: Pneumatic cylinders with T-groove.|For dimensions see sketch in|Product view.
- Temperature drift max. (% of Hn): 0.3%
- MTTF (40 °C) Material 355 a
- Packaging type
Piece
- Product type
Magnetic field detector
- Type
BMF 235K-PS-C-2A-SA2-S49-00,3
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP NC
- Enclosure material
PA12
- Model
Magnetic
- Installation type
T groove
- Connector
M8 (3-pin)
- Cable length
0.30 m
IP67
- Length
23.5 mm
- Width
5 mm
- Height
5.5 mm
- Dim
(L x W x H) 23.5 x 5 x 5.5 mm
- Content
1 pc(s)
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
3000 Hz
- Operating current
200 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420332 BALLUFF Magnetic field detector Magnetic BMF 235K-PS-C-2A-SA2-S49-00,3 BMF00C4 T groove PNP NC (L x W x H) 23.5 x 5 x 5.
User & Safety Instructions
User & Safety Instructions 3420332 BALLUFF Magnetic field detector Magnetic BMF 235K-PS-C-2A-SA2-S49-00,3 BMF00C4 T groove PNP NC (L x W x H) 23.5 x 5 x 5.
Description
Our magnetic field sensors BMF for the T-slot can be mounted directly into the groove and are characterized by their particularly firm grip. They are flush-mounted, so they are suitable for space-critical applications as well.Balluff also offers extremely short designs for flexible applications. The sensors detect the piston position contact-less through the cylinder wall. The system can be used for cylinders and grippers with both strong and weak magnets. Thanks to the especially bright LEDs you can reliably detect the switching state of the sensors from a large distance. The magnetic field sensors for the T-groove can also be used in metal casings for use in harsh environments such as welding sparks or flying sparks. Or with magnetic field sensitive electronics such as for the industrial environment with high welding currents. Dimensions = 23.5 x 5 x 5.5 mm, operating principle = magnetic field sensor, connection = M8x1 plug, 3-pin, cable = PUR, 0.3 m, application = pneumatic cylinder with T-groove. For dimensions see sketch in product view, mounting = can be used from above in T-groove, housing material = PA 12, switching output = PNP NO, switching frequency = 3000 Hz, operating voltage Ub = 10...30 VDC, ambient temperature = -25...85 °C, protection type = IP67, approval/conformity = cULus, CE, UKCA, WEEE
