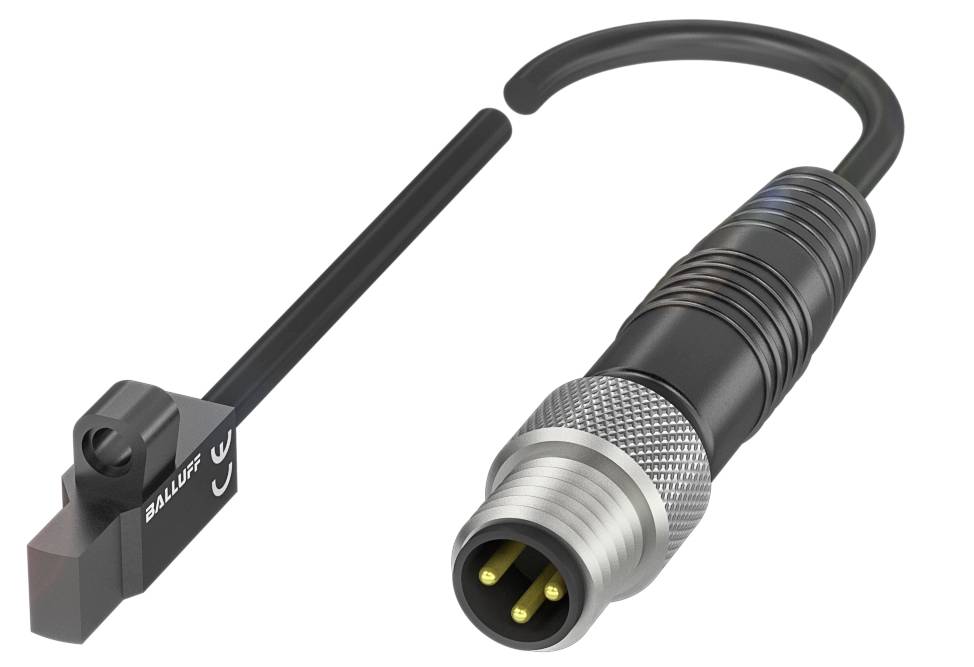

BALLUFF Magnetic field detector Magnetic BMF001L BMF001L PNP (L x W x H) 16.00 x 9.00 x 4.80 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Magnetic field detector
Max. operating voltage
30.0 V
Contact type
1 maker
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BMF001L For different groove shapes and small construction spaces
- M8x1 connection, 3-pin
- Dimensions 9 x 4.8 x 16 mm
- Cable PUR, 0.3 m
- Magnetic field sensor operating principle
- Groove shape: Variable
Technical specifications
- Main features:Dimension 9 x 4.8 x 16 mm
- M8x1 connection, 3-pin
- Application: Specially suitable for short stroke cylinders thanks to optimized response travel.
- Mounting bracket BMF 103-HW*
- Operating voltage Ub 10...30 VDC
- Magnetic field sensor operating principle
- PBT casing material
- Cable PUR, 0.3 m
- Groove shape: Variable
- Switching output: PNP NO
- Switching frequency 30000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Additional features:
- Magnetic field sensor operating principle
- Dimensions 9 x 4.8 x 16 mm
- Mounting bracket BMF 103-HW*
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., unattenuated: 3.5 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 30000 Hz
- Static voltage drop: 1 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 739 a
- Active surface, material: PBT
- Cable diameter D 2.50 mm
- Cable length 0.30 m
- PBT casing material
- Cable sheath material PUR
- Shutdown delay toff max.: 0.02 ms
- ON delay max.: 0.02 ms
- Not included in delivery: Retaining bracket e.g. BMF 103-HW-42
- Rated switch panel thickness Hn: 1.2 kA/m.
- Protected panel thickness Ha: 2 kA/m
- Hysteresis H max. (% of Hn): 45%
- Jacket material Mechanical characteristics: PUR
- Application: Thanks to optimized response path|especially suitable for|short stroke cylinders.
- Packaging type
Piece
- Product type
Magnetic field detector
- Type
BMF001L
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
PBT
- Model
Magnetic
- Connector
M8 (3-pin)
- Cable length
0.30 m
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
16.00 mm
- Width
9.00 mm
- Height
4.80 mm
- Dim
(L x W x H) 16.00 x 9.00 x 4.80 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
30000 Hz
- Operating current
24 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420083 BALLUFF Magnetic field detector Magnetic BMF001L BMF001L PNP (L x W x H) 16.00 x 9.00 x 4.80 mm Piece
User & Safety Instructions
User & Safety Instructions 3420083 BALLUFF Magnetic field detector Magnetic BMF001L BMF001L PNP (L x W x H) 16.00 x 9.00 x 4.80 mm Piece
Description
Our magnetic field sensors with a flexible mounting system are suitable for all types of grooves, such as the T, C, round or trapezoidal groove. They can be adapted to almost all types of cylinders by means of special retaining brackets. This ensures that you always have a reliable tool at your disposal for position detection on grippers and pneumatic cylinders. In addition, the switching point is only adjusted once and is retained when the sensor is replaced. This way you increase the functional safety of your system. And the sensor exchange becomes safer and easier even at places difficult to access. A welcome side-effect: Our universally applicable sensor types save you storage space and can reduce your costs. Dimensions = 9 x 4.8 x 16 mm, operating principle = magnetic field sensor, connection = M8x1 plug, 3-pin, cable = PUR, 0.3 m, application = particularly suitable for short stroke cylinders thanks to optimized response travel., mounting = retaining angle BMF 103-HW*, housing material = PBT, switching output = PNP NO, switching frequency = 30000 Hz, operating voltage Ub = 10...30 VDC, ambient temperature = -25...85 °C, protection class = IP67, approval/conformity = cULus, CE, UKCA, WEEE
