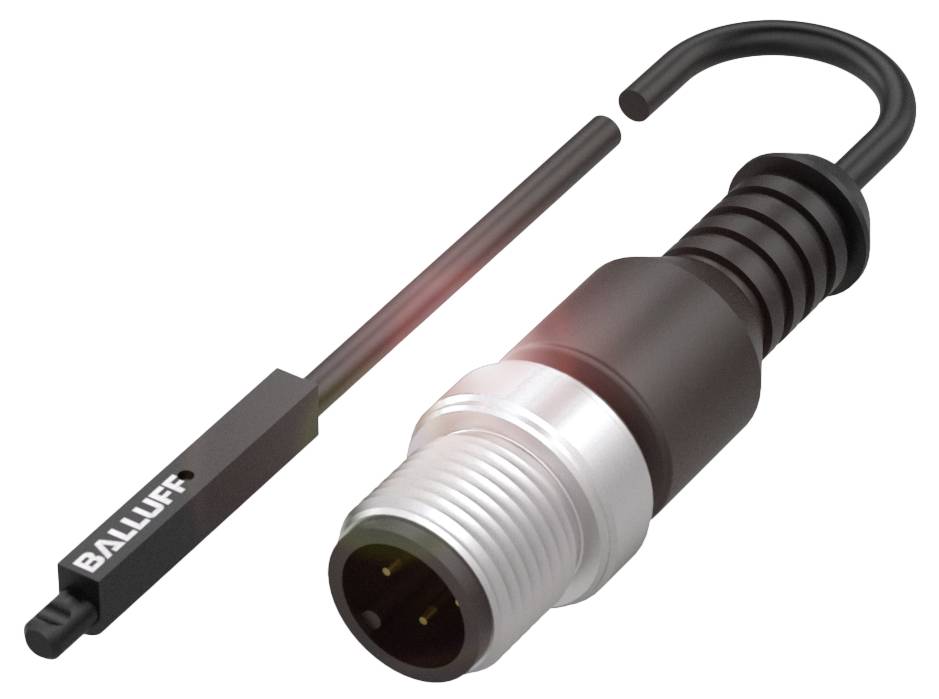

BALLUFF Magnetic field detector Magnetic BMF0040 BMF0040 PNP (L x W x H) 4.50 x 25.50 x 3.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Magnetic field detector
Max. operating voltage
30.0 V
Contact type
1 PNP
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BMF0040 For different types of groove with position-retaining brackets
- Connection: M12x1 4-pin connector, A-coded
- Dimensions 25.5 x 3 x 4.5 mm
- Cable PUR, 0.5 m
- Magnetic field sensor operating principle
- Groove shape: Variable
Technical specifications
- Main features:Dimension 25.5 x 3 x 4.5 mm
- Connection: M12x1 4-pin connector, A-coded
- Application: Miniaturized actuators
- Mounting bracket BMF 303-HW*
- Operating voltage Ub 10...30 VDC
- Magnetic field sensor operating principle
- Housing material LCP
- Cable PUR, 0.5 m
- Groove shape: Variable
- Switching output: PNP NO
- Switching frequency 30000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Additional features:
- Magnetic field sensor operating principle
- Dimensions 25.5 x 3 x 4.5 mm
- Mounting bracket BMF 303-HW*
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., unattenuated: 3.5 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 30000 Hz
- Static voltage drop: 1 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 744 a
- Active surface, material: LCP
- Cable diameter D 2.50 mm
- Cable length 0.50 m
- Housing material LCP
- Cable sheath material PUR
- Shutdown delay toff max.: 0.02 ms
- ON delay max.: 0.02 ms
- Not included in delivery: Retaining bracket e.g. BMF 303-HW-28
- Rated switch panel thickness Hn: 1.2 kA/m.
- Protected panel thickness Ha: 2 kA/m
- Hysteresis H max. (% of Hn): 45%
- Jacket material Mechanical characteristics: PUR
- Application: Miniaturized actuators
- Packaging type
Piece
- Product type
Magnetic field detector
- Type
BMF0040
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
LCP
- Model
Magnetic
- Connector
M12 (4-pin)
- Cable length
0.50 m
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
4.50 mm
- Width
25.50 mm
- Height
3.00 mm
- Dim
(L x W x H) 4.50 x 25.50 x 3.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Technology
Magnetic
- Operating voltage
24 V DC
- Switching frequency
30000 Hz
- Operating current
24 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420044 BALLUFF Magnetic field detector Magnetic BMF0040 BMF0040 PNP (L x W x H) 4.50 x 25.50 x 3.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3420044 BALLUFF Magnetic field detector Magnetic BMF0040 BMF0040 PNP (L x W x H) 4.50 x 25.50 x 3.00 mm Piece
Description
Our magnetic field sensors with a flexible mounting system are suitable for all types of grooves, such as the T, C, round or trapezoidal groove. They can be adapted to almost all types of cylinders by means of special retaining brackets. This ensures that you always have a reliable tool at your disposal for position detection on grippers and pneumatic cylinders. In addition, the switching point is only adjusted once and is retained when the sensor is replaced. This way you increase the functional safety of your system. And the sensor exchange becomes safer and easier even at places difficult to access. A welcome side-effect: Our universally applicable sensor types save you storage space and can reduce your costs. Dimensions = 25.5 x 3 x 4.5 mm, operating principle = magnetic field sensor, connection = M12x1 plug, 4-pin, A-coded, Cable = PUR, 0.5 m, application = miniaturized actuators, mounting = mounting angle BMF 303-HW*, housing material = LCP, switching output = PNP NO, switching frequency = 30000 Hz, operating voltage Ub = 10...30 VDC, ambient temperature = -25...85 °C, protection class = IP67, approval/conformity = cULus, CE, UKCA, WEEE
