BALLUFF Magnetic field detector Magnetic BMF00A3 BMF00A3 PNP (L x W x H) 4.50 x 16.80 x 2.90 mm
EAN:
Part number:
Item no:
Product type
Magnetic field detector
Max. operating voltage
30.0 V
Outputs
PNP
Model
Magnetic
Connector
M8 (3-pin)
Datasheet (PDF)
Highlights & Details

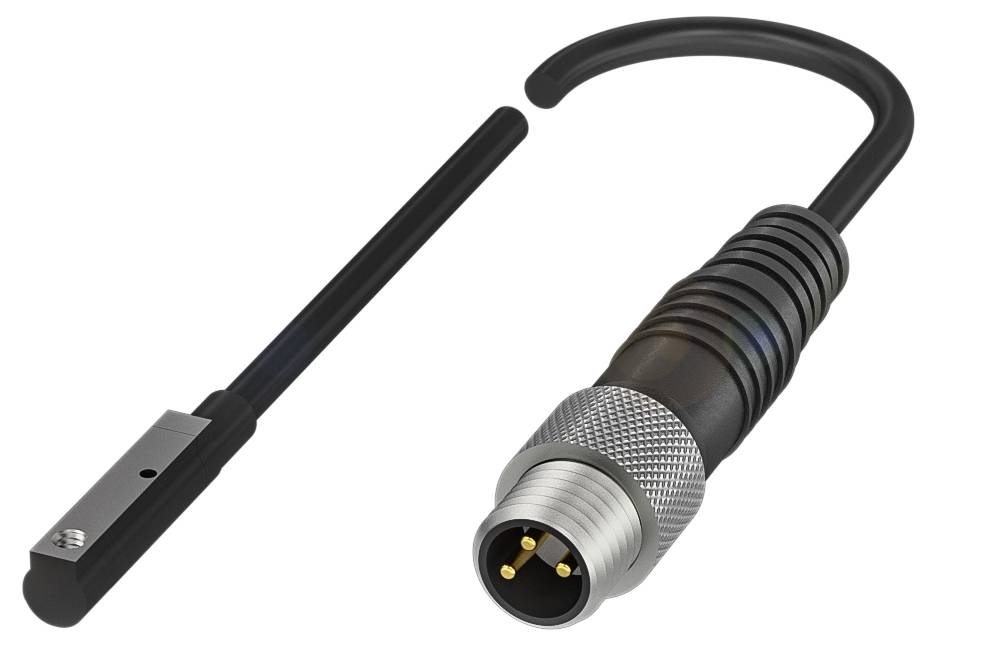

Balluff BMF00A3 cylinder switch for different grooves
- M8x1 connection, 3-pin
- Dimensions 16.8 x 2.9 x 4.5 mm
- Cable PUR, 0.5 m
- Magnetic field sensor operating principle
- Groove shape: C groove
Technical specifications
- Main features:Dimension 16.8 x 2.9 x 4.5 mm
- M8x1 connection, 3-pin
- Application: Specially suitable for short stroke cylinders thanks to optimized response travel.
- Mounting: C-slot
- SMC
- Bimba
- Schunk
- Operating voltage Ub 10...30 VDC
- Magnetic field sensor operating principle
- PA 12 case material
- Cable PUR, 0.5 m
- Groove shape: C groove
- Switching output: PNP NO
- Switching frequency 7000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Additional features:
- Magnetic field sensor operating principle
- Dimensions 16.8 x 2.9 x 4.5 mm
- Mounting: C-Nut|SMC|Bimba|Schunk
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 7000 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Tightening torque 0.03 Nm
- Switching output: PNP NO
- Cable diameter D 2.50 mm
- Cable length 0.50 m
- PA 12 case material
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 3
- Cable sheath material PUR
- Brand: Global
- Shutdown delay toff max.: 0.07 ms
- ON delay max.: 0.07 ms
- Rated switch panel thickness Hn: 1.2 kA/m.
- Protected panel thickness Ha: 2 kA/m
- ESD 3A (8kV)
- Emission: Group 1, Class B.
- Application: Thanks to optimized response path|especially suitable for|short stroke cylinders.
- Temperature drift max. (% of Hn): 0.3%
- MTTF (40 °C) Material 520 a
- Product type
Magnetic field detector
- Type
BMF00A3
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Enclosure material
PA
- Model
Magnetic
- Connector
M8 (3-pin)
- Cable length
0.50 m
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
4.50 mm
- Width
16.80 mm
- Height
2.90 mm
- Dim
(L x W x H) 4.50 x 16.80 x 2.90 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Technology
Magnetic
- Mounting type
Clamp
- Operating voltage
24 V DC
- Switching frequency
7000 Hz
- Operating current
24 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3419968 BALLUFF Magnetic field detector Magnetic BMF00A3 BMF00A3 PNP (L x W x H) 4.50 x 16.80 x 2.90 mm
User & Safety Instructions
User & Safety Instructions 3419968 BALLUFF Magnetic field detector Magnetic BMF00A3 BMF00A3 PNP (L x W x H) 4.50 x 16.80 x 2.90 mm
Description
Our magnetic field sensors BMF for the C-slot are characterized by their particularly secure support. They can be flush-mounted so that they are also suitable for space-critical applications. Since all can be used from above, they also fit where the groove ends are closed and lateral insertion is not possible.Balluff also offers extremely short designs that fit perfectly for every gripper and short stroke cylinder. The sensors detect the piston position contact-less through the cylinder wall. The system can be used for cylinders and grippers with both strong and weak magnets. Dimensions = 16.8 x 2.9 x 4.5 mm, operating principle = magnetic field sensor, connection = M8x1 plug, 3-pin, cable = PUR, 0.5 m, application = particularly suitable for short stroke cylinders thanks to optimized response travel., attachment = C-groove, SMC, Bimba, Schunk, Housing material = PA 12, switching output = PNP NO, switching frequency = 7000 Hz, operating voltage Ub = 10...30 VDC, ambient temperature = -25...85 °C, protection type = IP67, certification/conformity = CE, UKCA, cULus, WEEE
