BALLUFF Magnetic field detector Magnetic BMF00J5 BMF00J5 PNP (L x W x H) 5.50 x 23.50 x 5.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Magnetic field detector
Max. operating voltage
30.0 V
Contact type
1 maker
Outputs
PNP
Datasheet (PDF)
Highlights & Details

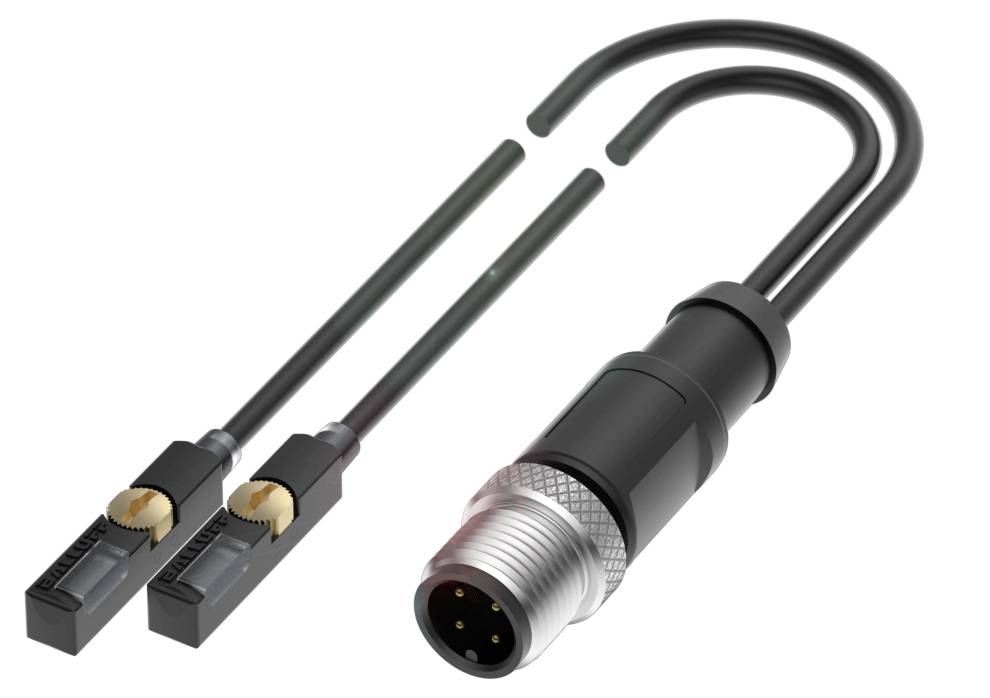

Balluff BMF00J5 For different grooves with 2 sensor heads
- Connection: M12x1 4-pin connector, A-coded
- Dimensions 23.5 x 5 x 5.5 mm
- Cable PUR, 0.5 m
- Magnetic field sensor operating principle
- Groove shape: T-groove
Technical specifications
- Main features:Dimension 23.5 x 5 x 5.5 mm
- Connection: M12x1 4-pin connector, A-coded
- Operating voltage Ub 10...30 VDC
- Magnetic field sensor operating principle
- PA 12 case material
- Cable PUR, 0.5 m
- Groove shape: T-groove
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Additional features:
- Magnetic field sensor operating principle
- Cable clip for a T-slot
- Dimensions 23.5 x 5 x 5.5 mm
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Active surface, material: PU
- Tightening torque 0.4 Nm
- Cable diameter D 2.50 mm
- Cable length 0.50 m
- PA 12 case material
- Cable sheath material PUR
- Brand: Global
- Shutdown delay toff max.: 0.1 ms
- ON delay max.: 0.1 ms
- Rated switch panel thickness Hn: 1.2 kA/m.
- Protected panel thickness Ha: 2 kA/m
- Hysteresis H max. (% of Hn): 45%
- Jacket material Mechanical characteristics: PUR
- Temperature drift max. (% of Hn): 0.3%
- Packaging type
Piece
- Product type
Magnetic field detector
- Type
BMF00J5
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
PA
- Model
Magnetic
- Connector
M12 (4-pin)
- Cable length
0.50 m
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
5.50 mm
- Width
23.50 mm
- Height
5.00 mm
- Dim
(L x W x H) 5.50 x 23.50 x 5.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Technology
Magnetic
- Operating voltage
24 V DC
- Switching frequency
3000 Hz
- Operating current
24 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420001 BALLUFF Magnetic field detector Magnetic BMF00J5 BMF00J5 PNP (L x W x H) 5.50 x 23.50 x 5.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3420001 BALLUFF Magnetic field detector Magnetic BMF00J5 BMF00J5 PNP (L x W x H) 5.50 x 23.50 x 5.00 mm Piece
Description
Our magnetic field sensors BMF for the T-slot can be mounted directly into the groove and are characterized by their particularly firm grip. They are flush-mounted, so they are suitable for space-critical applications as well.Balluff also offers extremely short designs for flexible applications. The sensors detect the piston position contact-less through the cylinder wall. The system can be used for cylinders and grippers with both strong and weak magnets. Thanks to the especially bright LEDs you can reliably detect the switching state of the sensors from a large distance. The magnetic field sensors for the T-groove can also be used in metal casings for use in harsh environments such as welding sparks or flying sparks. Or with magnetic field sensitive electronics such as for the industrial environment with high welding currents. Dimensions = 23.5 x 5 x 5.5 mm, connection = M12x1 plug, 4-pin, A-coded, cable = PUR, 0.5 m, housing material = PA 12, switching output = PNP NO, switching frequency = 3000 Hz, operating voltage Ub = 10...30 VDC, ambient temperature = -25...85 °C, protection type = IP67, certification/conformity = cULus, CE, UKCA, WEEE
