Name: BALLUFF One-way light barrier BOS 12M-PA-RE10-S4 BOS024U Receiver 1 pc(s)
Brand: BALLUFF
SKU: 3416572

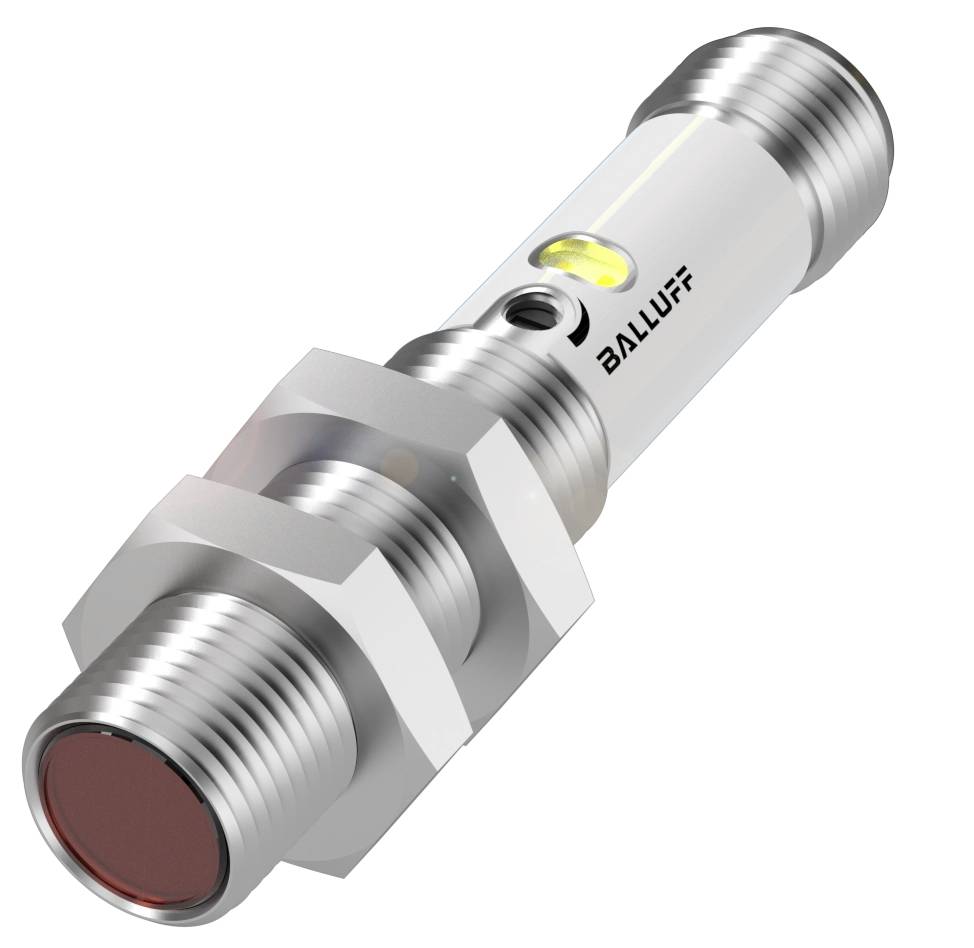

Cylindrical proximity sensor with metallic housing and LED indicator, suitable for industrial applications.

Image similar

Product type

One-way light barrier

Connector

M12 (4-pin)

Type

BOS 12M-PA-RE10-S4

Model

Receiver

Operating voltage

24 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS024U Cylindrical Single-beam sensors with M12 thread and different types of light

Dimensions: Ø 12 x 60 mm
Series 12M
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)

Technical specifications

Main features:Dimensions: Ø 12 x 60 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
Housing material: Nickel-plated brass
LED red light
Range 0 - 8 m
PNP NO interface
PNP NC
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 12 x 60 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.2 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 8 m, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 1175 a
Active surface, material: PMMA
Housing material: Nickel-plated brass
Range 0 - 8 m
Tightening torque max. 7 Nm
Setting option: Sensitivity (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Series 12M
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|Short circuit - LED green, flashes|LED yellow: Light reception|Boundary range - LED yellow, flashes
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 15 mA
Voltage drop Ud max. at Ie 1.5 V
External light max. 10000 Lux
Optical function principle: One-way light barrier (receiver)
LED red light
Optical switching function: Light switching|dark switching
REFERENCE TRANSMITTER: BOS 12M-X-RS10-S4

Product type: One-way light barrier

Type: BOS 12M-PA-RE10-S4

Model: Receiver

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M12

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 8 m

Features: LED display connector

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416572 BALLUFF One-way light barrier BOS 12M-PA-RE10-S4 BOS024U Receiver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416572 BALLUFF One-way light barrier BOS 12M-PA-RE10-S4 BOS024U Receiver 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO (PNP); PNP NC (pins 4-2, range max. = 8 m

This text is machine translated.
