Name: BALLUFF One-way light barrier BOS 12M-PS-RE10-S4 BOS01TY Receiver 1 pc(s)
Brand: BALLUFF
SKU: 3416534

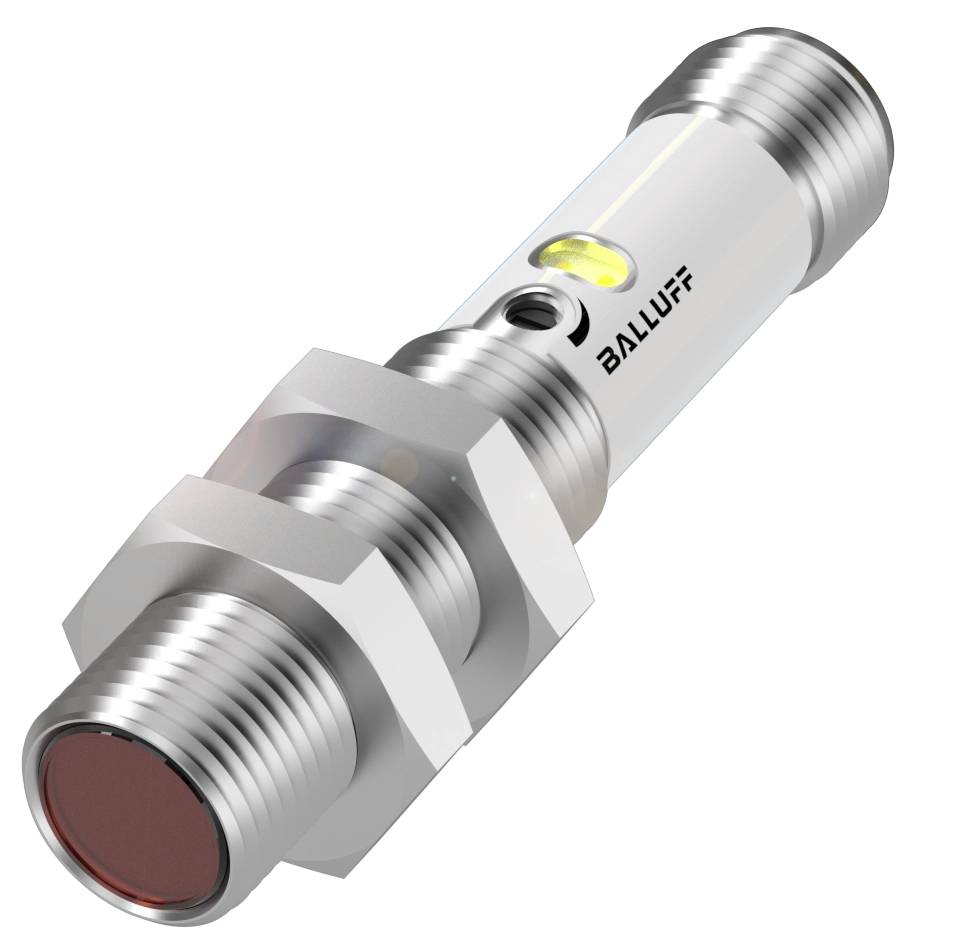

Cylindrical sensor with metal housing and two threaded connections. 'Balluff' marking visible. LED indicator on the housing.

Image similar

Packaging type

Piece

Product type

One-way light barrier

Connector

M12 (4-pin)

Type

BOS 12M-PS-RE10-S4

Model

Receiver

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS01TY Cylindrical Single-way Light Barriers with M12 thread and different types of light

Dimensions: Ø 12 x 60 mm
Series 12M
PNP NO interface
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)

Technical specifications

Main features:Dimensions: Ø 12 x 60 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
Housing material: Nickel-plated brass
LED red light
Brand: Global
Range 0 - 8 m
PNP NO interface
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 12 x 60 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.2 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 8 m, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 1508 a
Active surface, material: PMMA
Housing material: Nickel-plated brass
Range 0 - 8 m
Tightening torque max.: 7 Nm|15 Nm
Setting option: Sensitivity (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Brand: Global
Series 12M
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|LED yellow: Light reception
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 15 mA
External light max. 10000 Lux
Optical function principle: One-way light barrier (receiver)
LED red light
Optical switching function: Dark switching
REFERENCE TRANSMITTER: BOS 12M-X-RS10-S4
Voltage drop and max. at Ie Electrical connection: 1.5 V

Packaging type: Piece

Product type: One-way light barrier

Type: BOS 12M-PS-RE10-S4

Model: Receiver

Operating voltage: 24 V DC

Contact type: 1 maker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 8 m

Depth: 60 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416534 BALLUFF One-way light barrier BOS 12M-PS-RE10-S4 BOS01TY Receiver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416534 BALLUFF One-way light barrier BOS 12M-PS-RE10-S4 BOS01TY Receiver 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO pin 4, range max. = 8 m
