Name: BALLUFF One-way light barrier BOS 18E-PA-IE20-S4 BOS023A Receiver 1 pc(s)
Brand: BALLUFF
SKU: 3416788

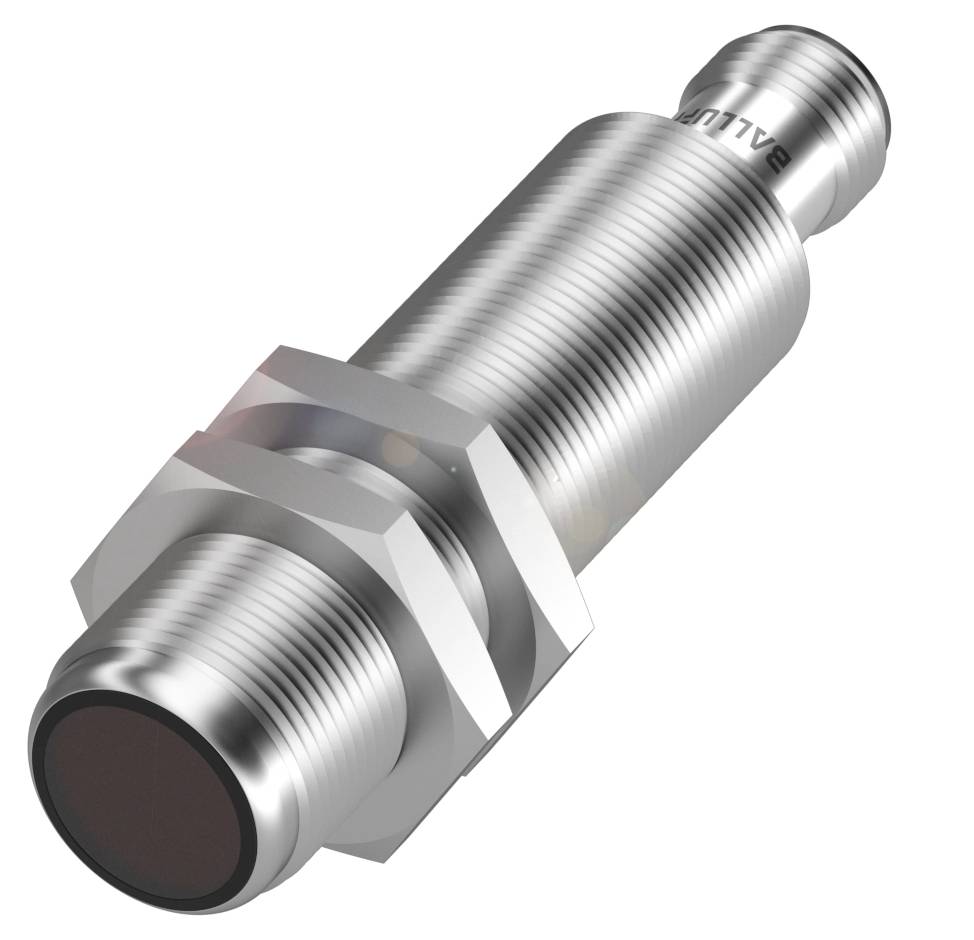

Cylindrical metal proximity sensor with thread, mountable fastening nut and flush front for industrial applications.

Image similar

Packaging type

Piece

Product type

One-way light barrier

Connector

M12 (4-pin)

Type

BOS 18E-PA-IE20-S4

Model

Receiver

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS023A Cylindrical Single-Use Light Barriers with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
Series 18E
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Special features: Washdown

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
Series 18E
Special features: Washdown
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
Housing material: Stainless steel (1.4404)
Type of light: Infrared
Range 0 - 50 m
PNP NO interface
PNP NC
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 400 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 50 m.
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 646 a
Active surface, material: Glass
Switching output: PNP NO (PNP)|PNP NC (Pins 4-2
Housing material: Stainless steel (1.4404)
Range 0 - 50 m
Tightening torque max. 40 Nm
Contacts, surface protection: Gold-plated
Series 18E
Shape: Cylinder|straight lens
Adjuster: No
Shutdown delay toff max.: 1.25 ms
ON delay max.: 1.25 ms
Idle current IO max. at Ue 30 mA
Voltage drop Ud max. at Ie 2.5 V
External light max. 10000 Lux
Optical function principle: One-way light barrier (receiver)
Type of light: Infrared
Optical switch function: Dark / light switching
REFERENCE TRANSMITTER: BOS 18E-X-IS20-S4

Packaging type: Piece

Product type: One-way light barrier

Type: BOS 18E-PA-IE20-S4

Model: Receiver

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 400 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: Stainless steel

Transmitter type: LED IR

: 50 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416788 BALLUFF One-way light barrier BOS 18E-PA-IE20-S4 BOS023A Receiver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416788 BALLUFF One-way light barrier BOS 18E-PA-IE20-S4 BOS023A Receiver 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series=18E, dimension=Ø 18 x 75 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=One-way light barrier (receiver), light type=Infrared, range=0...50 m, connector=connector M12x1 connector, 4-pin, housing material=stainless steel (1.4404), active surface, Material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEcolabFDA conforming EACWEEE
