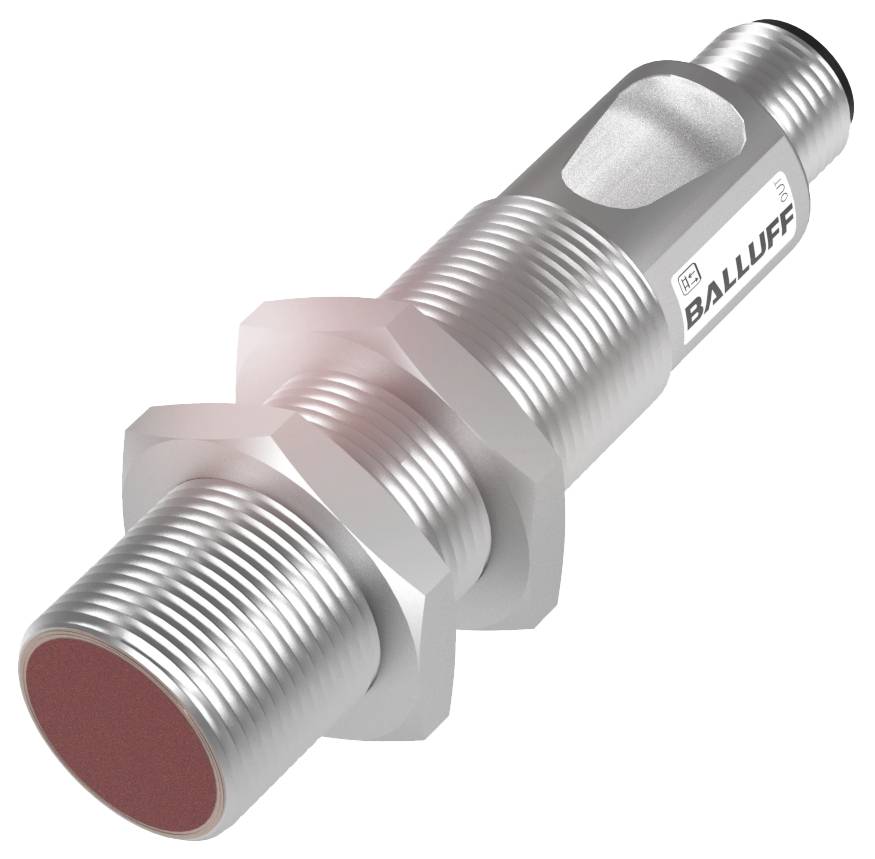

BALLUFF One-way light barrier BOS 18M-X-RS30-S4 BOS01CY 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
One-way light barrier
Connector
M12 (4-pin)
Type
BOS 18M-X-RS30-S4
Operating voltage
24 V DC
Datasheet (PDF)
Highlights & Details
BALLUFF BOS01CY Cylindrical One-way Light Barriers with M18 thread and different types of light
- Dimensions: Ø 18 x 75 mm
- 18M series
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- LED red light
Technical specifications
- Main features:Dimensions: Ø 18 x 75 mm
- Active surface, material: Glass
- Connection: Connector, M12x1 connector, 4-pin
- 18M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- Housing material: Nickel-plated brass
- LED red light
- Range 0 - 20 m
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 75 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 15%
- Protection class: II
- Connection: Connector, M12x1 connector, 4-|pin
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Rated switching distance Sn: 20 m, adjustable
- MTTF (40 °C) 1359 a
- Active surface, material: Glass
- Housing material: Nickel-plated brass
- Range 0 - 20 m
- Tightening torque max.: 15 Nm|30 Nm
- Contacts, surface protection: Gold-plated
- 18M series
- Shape: Cylinder|straight lens
- Display: LED green: Operating voltage
- Adjuster: No
- Idle current IO max. at Ue 25 mA
- Optical function principle: One-way light barrier (transmitter)
- LED red light
- Wavelength 626 nm
- LED group according to IEC 62471: Risk group 1
- REFERENCE RECEIVER: BOS 18M-PUD-RE30-S4
- Surface protection Mechanical characteristics: Nickel-plated
- Packaging type
Piece
- Product type
One-way light barrier
- Type
BOS 18M-X-RS30-S4
- Operating voltage
24 V DC
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
Brass (Ni-plated)
- Material properties
nickel plated
- Transmitter type
LED red
- Wavelength
626 nm
20 m
- Depth
75 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418137 BALLUFF One-way light barrier BOS 18M-X-RS30-S4 BOS01CY 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418137 BALLUFF One-way light barrier BOS 18M-X-RS30-S4 BOS01CY 1 pc(s)
Description
With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series=18M, dimension=Ø 18 x 75 mm, operating principle=optoelectronic sensor, operational principle optical=one-way light barrier (transmitter), light type=LED red light, range=0...20 m, connection=connector M12x1 connector, 4-pin, housing material=brass, active surface, Material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS01CY, please refer to its datasheet under 'downloadable documents'
