Name: BALLUFF One-way light barrier BOS 5K-PU-LX10-S75 BOS01JP 1 pc(s)
Brand: BALLUFF
SKU: 3416524

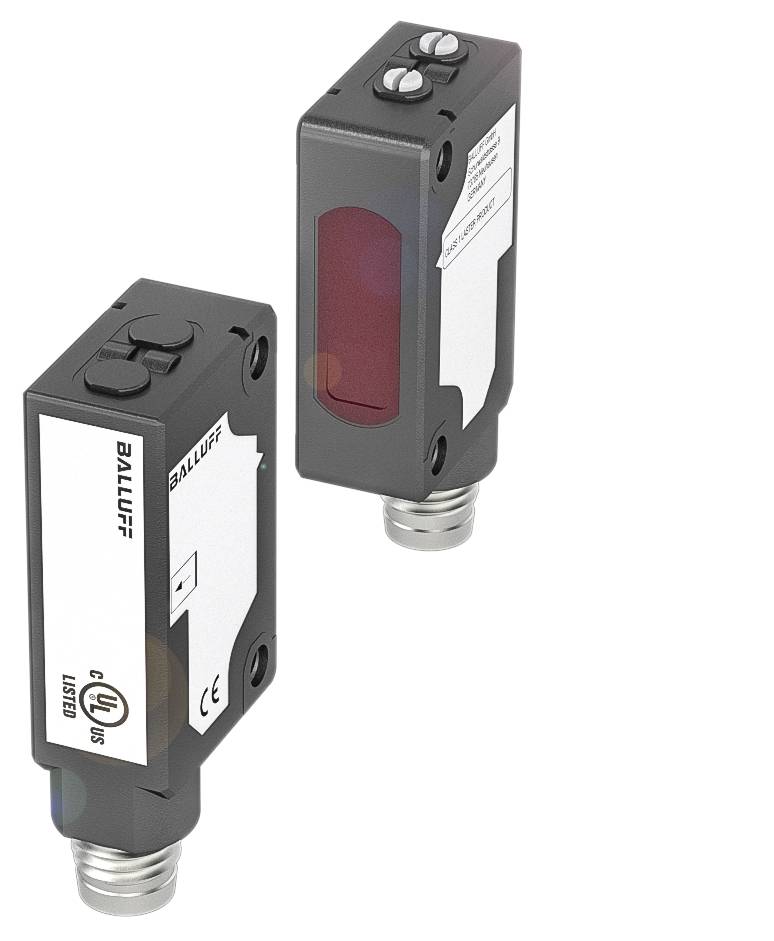

Two rectangular electrical sensors with black housing and white labels, a red surface visible on the right sensor.

Image similar

Product type

One-way light barrier

Connector

M8 (4-pin)

Type

BOS 5K-PU-LX10-S75

Operating voltage

24 V DC

Contact type

1 breaker

1 maker

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01JP Cheap and small entry-level version of our cubic disposable light barriers

Dimensions 10.8 x 43.5 x 19.5 mm
5K series
PNP NO/NC interface
Functional principle: Optoelectronic sensor
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 10.8 x 43.5 x 19.5 mm
Active surface, material: PMMA
Connection: Plug connector, M8x1 plug, 4-pin
5K series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: One-way light barrier
PC case material
PBT
Light: Red laser light
Light spot size: Ø 5 mm at 3 m.
Brand: Global
Range 0 - 30 m
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 10.8 x 43.5 x 19.5 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Operating voltage Ub 10...30 VDC
Residual ripple max. (% of Ue): 10%
Switching frequency 2000 Hz
Connection: Connector, M8x1 plug, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 30 m, adjustable
MTTF (40 °C) 3 a
Active surface, material: PMMA
Housing material: PC|PBT
Range 0 - 30 m
Tightening torque max. 0.5 Nm
Setting option: Sensitivity (Sn)|Light/dark switching
Brand: Global
5K series
Shape: Cube|connection 90°
Display: Output function - LED yellow|LED green: Operating voltage|Stability - LED green
Potentiometer 270° (2x)
Shutdown delay toff max.: 0.25 ms
ON delay max.: 0.25 ms
Idle current IO max. at Ue 45 mA
Voltage drop Ud max. at Ie 1.5 V

Product type: One-way light barrier

Type: BOS 5K-PU-LX10-S75

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 2000 Hz

Connector: M8 (4-pin)

Enclosure material: PBT

Transmitter type: SC laser red

: 30 m

Depth: 19.5 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416524 BALLUFF One-way light barrier BOS 5K-PU-LX10-S75 BOS01JP 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416524 BALLUFF One-way light barrier BOS 5K-PU-LX10-S75 BOS01JP 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series = 5K, dimension=10.8 x 43.5 x 19.5 mm, interface = PNP NO/NC contact (NO/NC), operational principle = Optoelectronic sensor, operational principle optical = One-way light barrier, radiation characteristic = diverse, light type=red laser light, light spot size=Ø 5 mm at 3 m, range=0...30 m, connection=connector, M8x1-plug, 4-pin, Housing material=PC PBT, Active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=CecULusCDRHEACWEEE
