Name: BALLUFF One-way light barrier BOS Q08M-PO-KE21-00,2-S49 BOS01Y9 Receiver 1 pc(s)
Brand: BALLUFF
SKU: 3416742

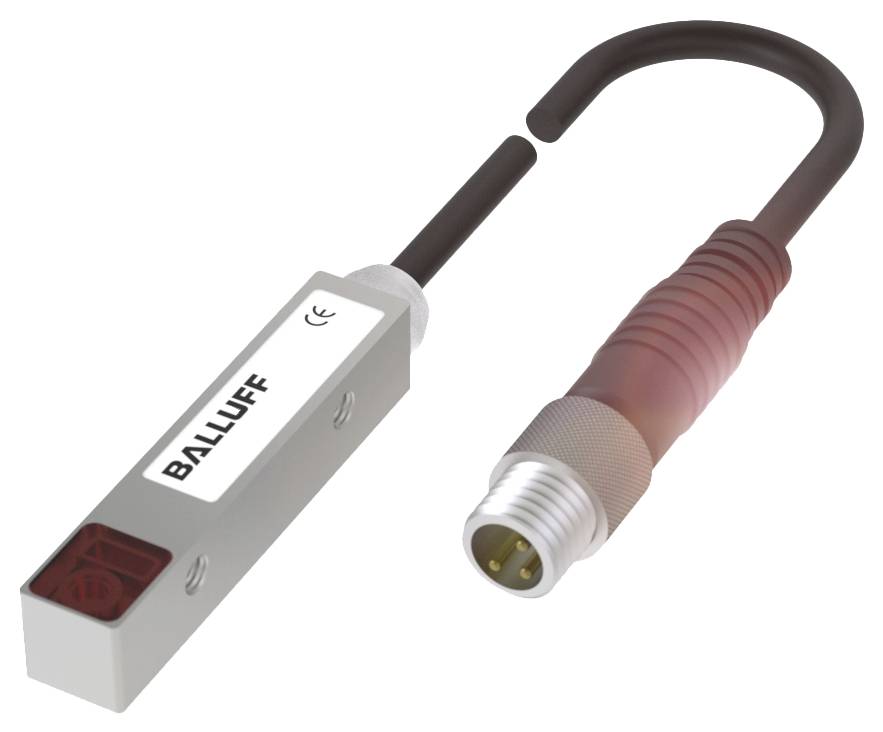

A rectangular sensor with cable and connector, marked with 'BALLUFF' and CE marking, for industrial application.

Image similar

Packaging type

Piece

Product type

One-way light barrier

Connector

M8 (3-pin)

Type

BOS Q08M-PO-KE21-00,2-S49

Model

Receiver

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01Y9 Square disposable light barriers with different light types

Dimensions 8 x 44 x 8 mm
Q08M series
PNP NC interface
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)

Technical specifications

Main features:Dimension 8 x 44 x 8 mm
Active surface, material: PMMA
Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
Q08M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
Housing material: Zinc, die-cast, nickel-plated
Range 0 - 2.2 m
PNP NC interface
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 8 x 44 x 8 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 20 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.05 µF
Residual ripple max. (% of Ue): 10%
Switching frequency 500 Hz
Connection: Cable with connector, M8x1-|plug, 3-pin, 0.20 m, PUR
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 2.2 m.
MTTF (40 °C) 972.7 a
Active surface, material: PMMA
Switching output: PNP NC
Cable diameter D 3.00 mm
Cable length 0.2 m
Housing material: Zinc, die-cast, nickel-plated
Sheath material: PUR
Range 0 - 2.2 m
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Q08M series
Shape: Cube|connection 90°
Display: Limit range - LED yellow, flashes|LED yellow: Light reception
Shutdown delay toff max.: 1 ms
ON delay max.: 1 ms
Idle current IO max. at Ue 10 mA
Voltage drop Ud max. at Ie 0.7 V
Optical function principle: One-way light barrier (receiver)
Optical switching function: Light switching

Packaging type: Piece

Product type: One-way light barrier

Type: BOS Q08M-PO-KE21-00,2-S49

Model: Receiver

Operating voltage: 24 V DC

Contact type: 1 breaker

Switching frequency: 500 Hz

Connector: M8 (3-pin)

Cable length: 0.2 m

Enclosure material: Zinc (die-cast, Ni-plated)

Material properties: Die-cast

: 2.2 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416742 BALLUFF One-way light barrier BOS Q08M-PO-KE21-00,2-S49 BOS01Y9 Receiver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416742 BALLUFF One-way light barrier BOS Q08M-PO-KE21-00,2-S49 BOS01Y9 Receiver 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, connector type = cable with connector, switching output = PNP NC, range max. = 2.2 m

This text is machine translated.
