Name: BALLUFF Optical sensor BOS020T BOS020T Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3418460

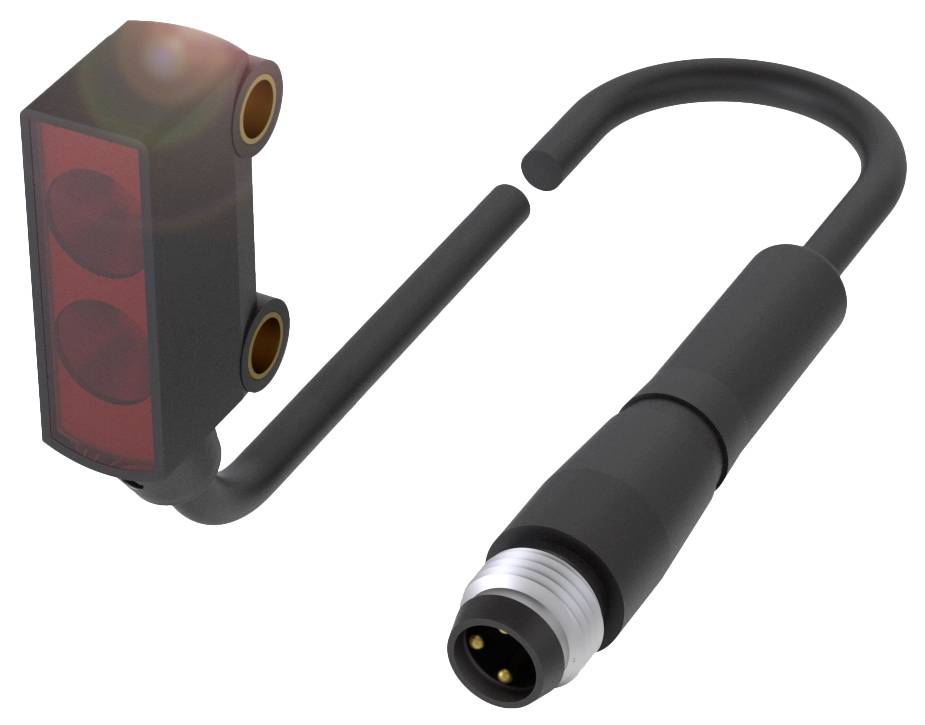

Image of an L-shaped double-sided sensor and a connector with curved cable. The sensor has two round openings.

Image similar

Packaging type

Single

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS020T Cubic reflective light barrier with different types of light up to 3 m range

Dimensions 7.7 x 26.8 x 13.5 mm
Series R020K
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimension 7.7 x 26.8 x 13.5 mm
Active surface, material: PMMA
Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PVC
Series R020K
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
ABS casing material
LED red light
Light spot size: Ø 10 mm with 100 mm
Range 0 - 3 m
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 7.7 x 26.8 x 13.5 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 50 mA
Rated insulation voltage UI 50 V DC
Operating voltage Ub 10...30 VDC
Residual ripple max. (% of Ue): 20%
Switching frequency 800 Hz
Protection class III
Connection: Cable with connector, M8x1-|plug, 3-pin, 0.20 m, PVC
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 3 m.
MTTF (40 °C) 3378 a
Active surface, material: PMMA
Switching output: PNP NO
Cable diameter D 2.40 mm
Cable length 0.2 m
ABS casing material
Jacket material PVC
Protection class IP67
Ambient temperature: -25 to 50 °C
Range 0 - 3 m
Series R020K
Shape: Cube|connection 60°
Display: LED green: Operating voltage|LED yellow: Light reception
Shutdown delay toff max.: 0.63 ms
ON delay max.: 0.63 ms
Idle current IO max. at Ue 20 mA
Voltage drop Ud max. at Ie 2.5 V
External light max. 5000 Lux
Optical operating principle: Reflection light barrier
LED red light
Light spot size: Ø 10 mm with 100 mm
Polarisation filter: Yes
Optical switching function: Dark switching
Beam characteristics: Varied
Wavelength 660 nm
Reference reflector BOS R-9
Blind zone 25 mm

Packaging type: Single

Product type: Optical sensor

Type: BOS020T

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Switching frequency: 800 Hz

Connector: M8 (3-pin)

Cable length: 0.20 m

Enclosure material: Acrylonitrile butadiene styrene

Transmitter type: LED red

Wavelength: 660 nm

: 3 m

: IP67

Min. temperature: -25 °C

Max. temperature: 50 °C

Length: 13.50 mm

Width: 7.70 mm

Height: 26.80 mm

(Ø): 10 m

Dim: (Ø x H) 10 m x 26.80 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418460 BALLUFF Optical sensor BOS020T BOS020T Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418460 BALLUFF Optical sensor BOS020T BOS020T Dark-ON 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Series=R020K, dimension=7.7 x 26.8 x 13.5 mm, interface=PNP NO, operational principle=Optoelectronic sensor, operational principle optical=reflective light barrier, beam characteristic=diverse, light type=LED red light, light spot size=Ø 10 mm at 100 mm, range=0...3 m, connection=cable with connector, M8x1-plug, 3-pin, 0.20 m, PVC, housing material=ABS, active surface, material=PMMA, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE

This text is machine translated.
