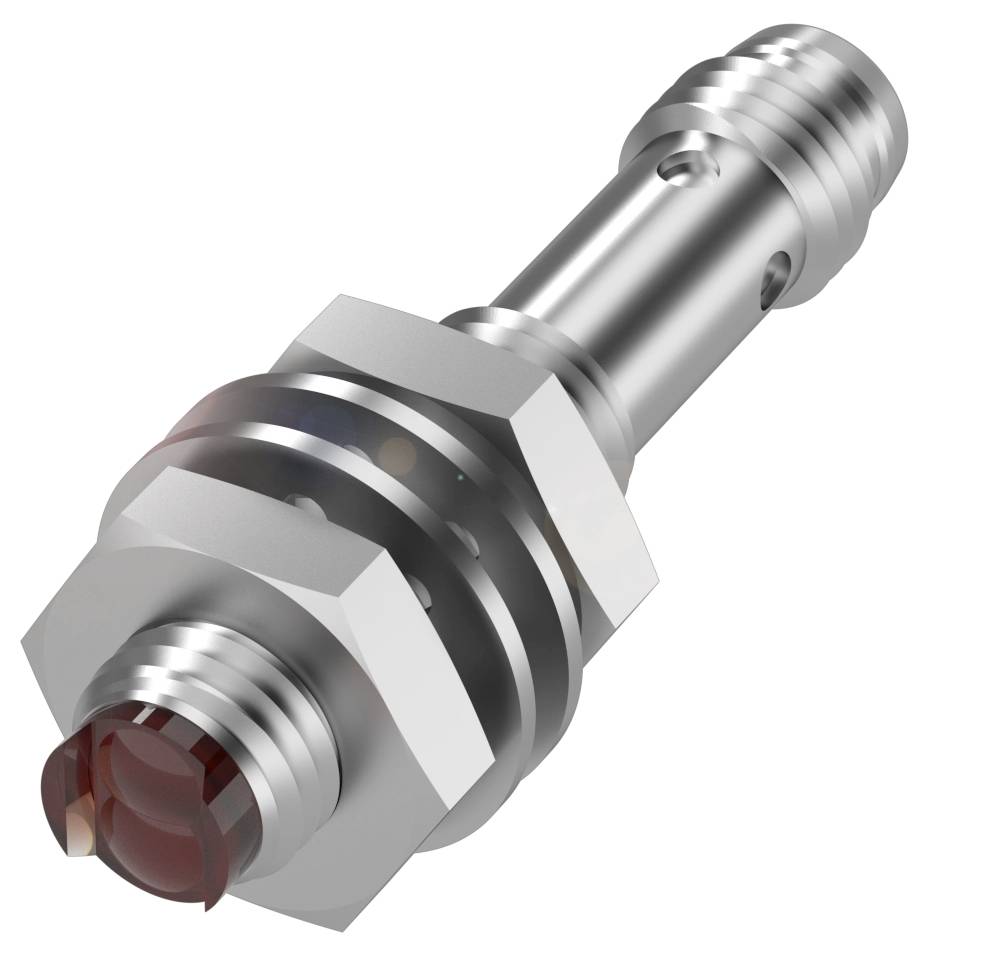

BALLUFF Photo sensor BOS 08E-PS-KF20-S49 BOS01H6 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Connector
M8 (3-pin)
Type
BOS 08E-PS-KF20-S49
Operating voltage
24 V DC
Contact type
1 maker
Datasheet (PDF)
Highlights & Details
Balluff BOS01H6 Cylindrical Light Switch with M8 thread and different types of light
- Dimensions: Ø 8 x 40 mm
- Series 08E
- PNP NO interface
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
Technical specifications
- Main features:Dimensions: Ø 8 x 40 mm
- Active surface, material: PMMA
- Connection: Plug connector, M8x1 plug, 3-pin
- Series 08E
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
- Housing material: Stainless steel
- LED red light
- Light spot size: Ø 2.5 mm light emission
- Optical special feature: Background suppression
- Range: 20 mm
- PNP NO interface
- Beam characteristics: Varied
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 8 x 40 mm
- Attachment: Nut M8x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 10...30 VDC
- Load capacity max. at Ue 0.1 µF
- Residual ripple max. (% of Ue): 5%
- Switching frequency 450 Hz
- Connection: Connector, M8x1 plug, 3-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 20 mm
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 3.0%
- MTTF (40 °C) 75.9 a
- Active surface, material: PMMA
- Housing material Mechanical characteristics: Stainless steel
- Switching output: PNP NO
- Protection class IP67
- Ambient temperature -5...55 °C
- Clearance deviation 18 % max. (% of Sr): 5 % to 90 % Rem.
- Range: 20 mm
- Series 08E
- Display: Output function - LED yellow|Boundary range - LED yellow, flashes
- Shutdown delay toff max.: 1.11 ms
- ON delay max.: 1.11 ms
- Idle current IO max. at Ue 15 mA
- Voltage drop Ud max. at Ie 0.7 V
- Optical operating principle: Light switch, triangulation
- LED red light
- Light spot size: Ø 2.5 mm light emission
- Optical special feature: Background suppression
- Optical switching function: Light switching
- Beam characteristics: Varied
- Wavelength 640 nm
- LED group according to IEC 62471: Free group
- Product type
Photo sensor
- Type
BOS 08E-PS-KF20-S49
- Operating voltage
24 V DC
- Contact type
1 maker
- Switching frequency
450 Hz
- Connector
M8 (3-pin)
- Enclosure material
Stainless steel
- Transmitter type
LED red
- Wavelength
640 nm
20 mm
- Features
Incl. background suppression
IP67
- Depth
40 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417407 BALLUFF Photo sensor BOS 08E-PS-KF20-S49 BOS01H6 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417407 BALLUFF Photo sensor BOS 08E-PS-KF20-S49 BOS01H6 1 pc(s)
Description
Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Optoelectronic sensor, background suppression, light transmitter = LED, connection type = connector, switching output = PNP NO
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS01H6, please refer to its datasheet under 'downloadable documents'
