Name: BALLUFF Photo sensor BOS 08E-PS-KH22-S49 BOS01H4 1 pc(s)
Brand: BALLUFF
SKU: 3417469

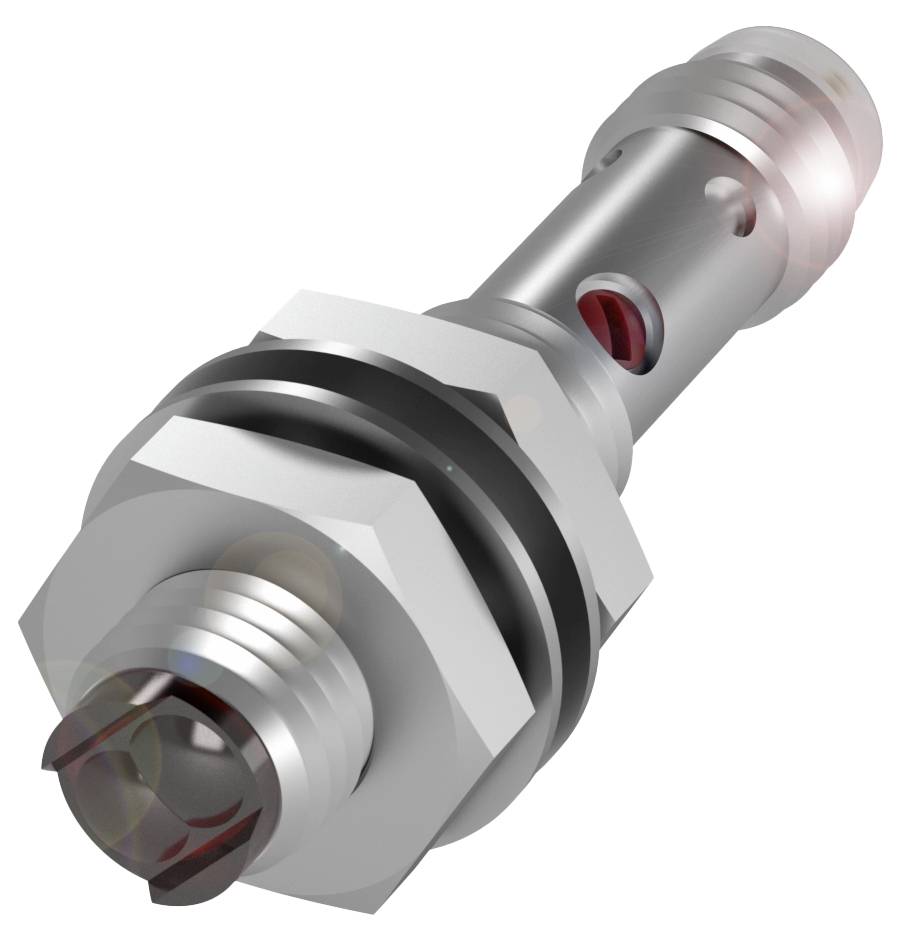

A silver, cylindrical metal component with hexagonal nut and round recesses, possibly a hydraulic valve.

Image similar

Product type

Photo sensor

Connector

M8 (3-pin)

Type

BOS 08E-PS-KH22-S49

Operating voltage

24 V DC

Contact type

1 maker

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01H4 Cylindrical Light Sensor with M8 thread and different types of light

Dimensions: Ø 8 x 40 mm
Series 08E
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimensions: Ø 8 x 40 mm
Active surface, material: PMMA
Connection: Plug connector, M8x1 plug, 3-pin
Series 08E
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
Housing material: Stainless steel
LED red light
Light spot size: Ø 2.5 mm light emission
Optical special feature: Background suppression
Range 7...30 mm
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 8 x 40 mm
Attachment: Nut M8x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 100 ms
Operating voltage Ub 10...30 VDC
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 5%
Switching frequency 450 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Hysteresis H max. (% of Sr): 10.0%
Rated switching distance Sn: 30 mm, adjustable
Temperature drift max. (% of Sr): 10%
Repeatability max. (% of Sr): 3.0%
MTTF (40 °C) 75.9 a
Active surface, material: PMMA
Switching output: PNP NO
Housing material: Stainless steel
Protection class: IP64
Ambient temperature -5...55 °C
Clearance deviation 18 % max. (% of Sr): 5 % to 90 % Rem.
Range 7...30 mm
Adjustable interval (Sn)
Series 08E
Display: Output function - LED yellow|Boundary range - LED yellow, flashes
Potentiometer 270°
Shutdown delay toff max.: 1.11 ms
ON delay max.: 1.11 ms
Idle current IO max. at Ue 15 mA
Voltage drop Ud max. at Ie 0.7 V
Optical operating principle: Light switch, triangulation
LED red light
Light spot size: Ø 2.5 mm light emission
Optical special feature: Background suppression
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 640 nm
LED group according to IEC 62471: Free group

Product type: Photo sensor

Type: BOS 08E-PS-KH22-S49

Operating voltage: 24 V DC

Contact type: 1 maker

Switching frequency: 450 Hz

Connector: M8 (3-pin)

Enclosure material: Stainless steel

Transmitter type: LED red

Wavelength: 640 nm

: 30 mm

Features: Incl. background suppression

: IP64

Height: 40 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417469 BALLUFF Photo sensor BOS 08E-PS-KH22-S49 BOS01H4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417469 BALLUFF Photo sensor BOS 08E-PS-KH22-S49 BOS01H4 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Optoelectronic sensor, background suppression, light transmitter = LED, connection type = connector, switching output = PNP NO (NO), Range max.=30 mm
